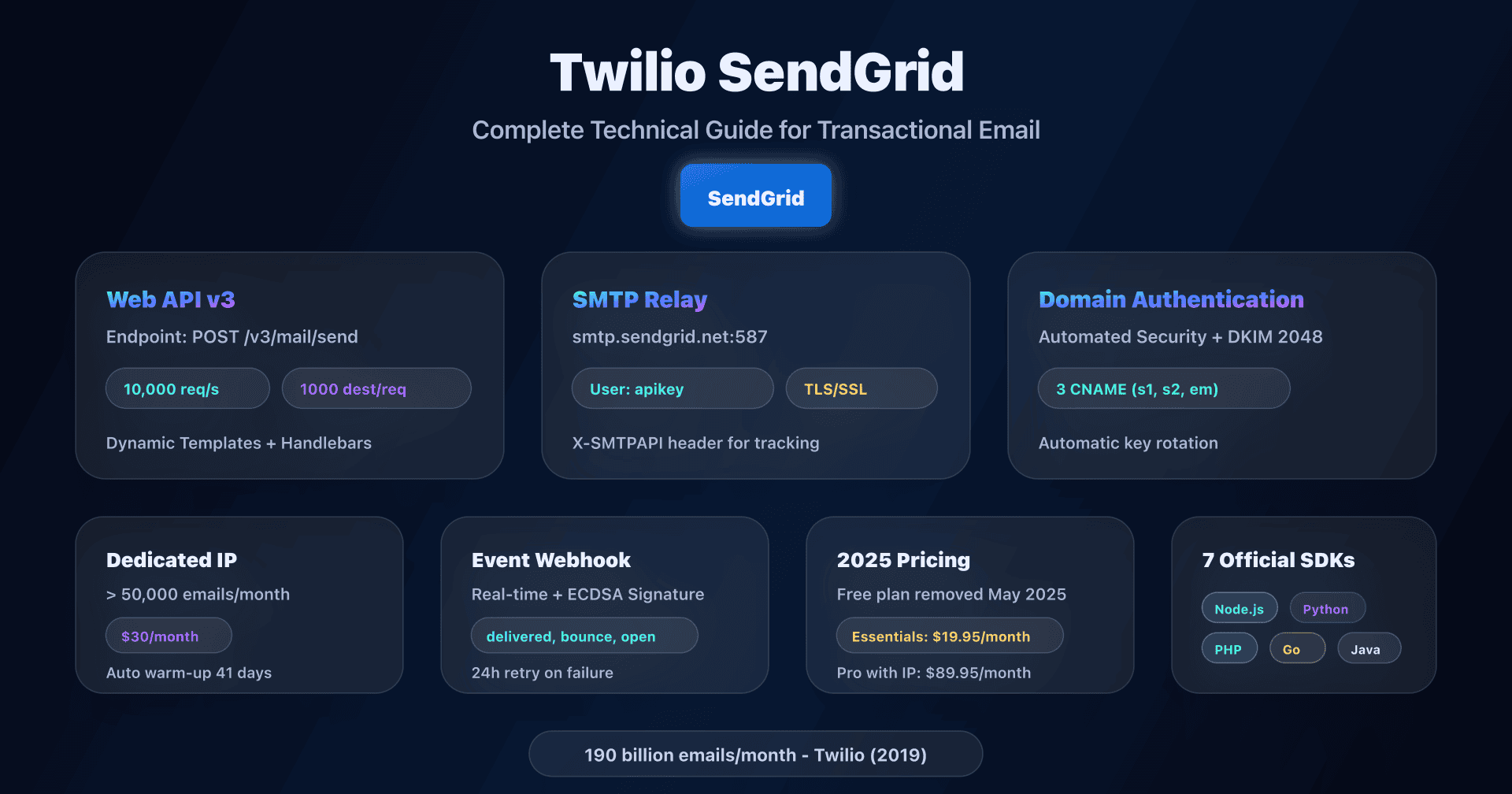

Twilio SendGrid: Complete Technical Guide for Transactional Email

⚡TL;DR

• 📢 SendGrid uses a customizable Return-Path (subdomain of your domain), enabling relaxed SPF alignment for DMARC from the base plan onwards.
• Web API v3 is the recommended method: 10,000 requests/second, up to 1,000 recipients per call, Dynamic Templates with Handlebars.
• Domain Authentication with Automated Security generates 3 CNAMEs: Return-Path + 2 DKIM selectors (automatic rotation, 2048-bit keys).
• Dedicated IP recommended from 50,000 emails/month, with automatic 41-day warmup and $30/month cost per additional IP.
• Free plan removed in May 2025: mandatory migration to Essentials 50K at $19.95/month minimum.

Introduction

SendGrid has established itself as one of the most robust transactional email platforms on the market, processing over 190 billion emails monthly in 2024. Acquired by Twilio in 2019 for approximately $3 billion, the service combines a powerful REST API, a universal SMTP relay, and advanced authentication features that set it apart from competitors.

SendGrid's strength lies in three major technical pillars: a Web API v3 capable of handling 10,000 requests/second, a Domain Authentication that enables SPF DMARC alignment from the base plan onwards, and an automatic 2048-bit DKIM key rotation system without service interruption.

This guide is aimed at developers, DevOps, and system architects seeking to integrate SendGrid for transactional email with a complete understanding of the infrastructure: DNS configuration, API vs SMTP choice, dedicated IP management, technical limits, and event webhooks.

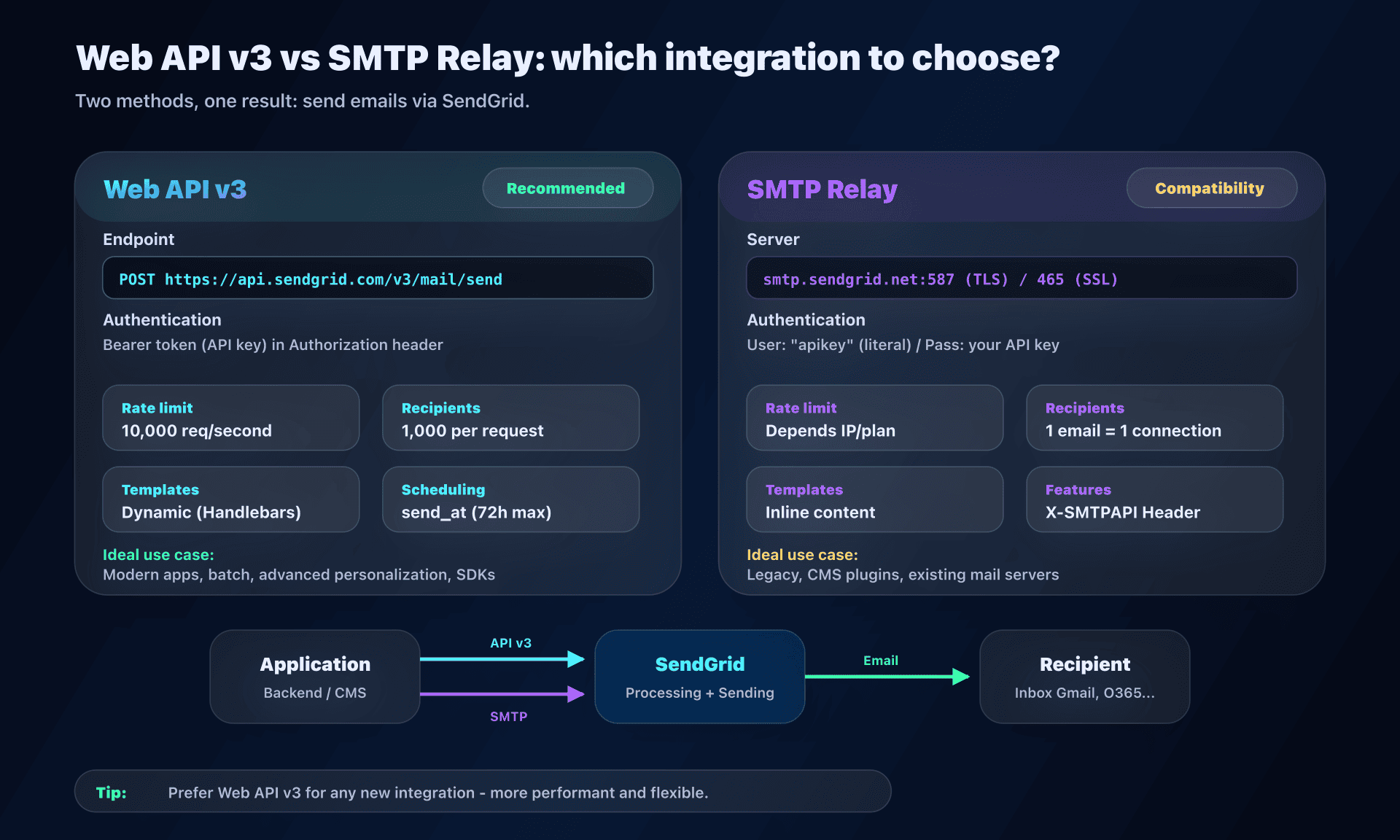

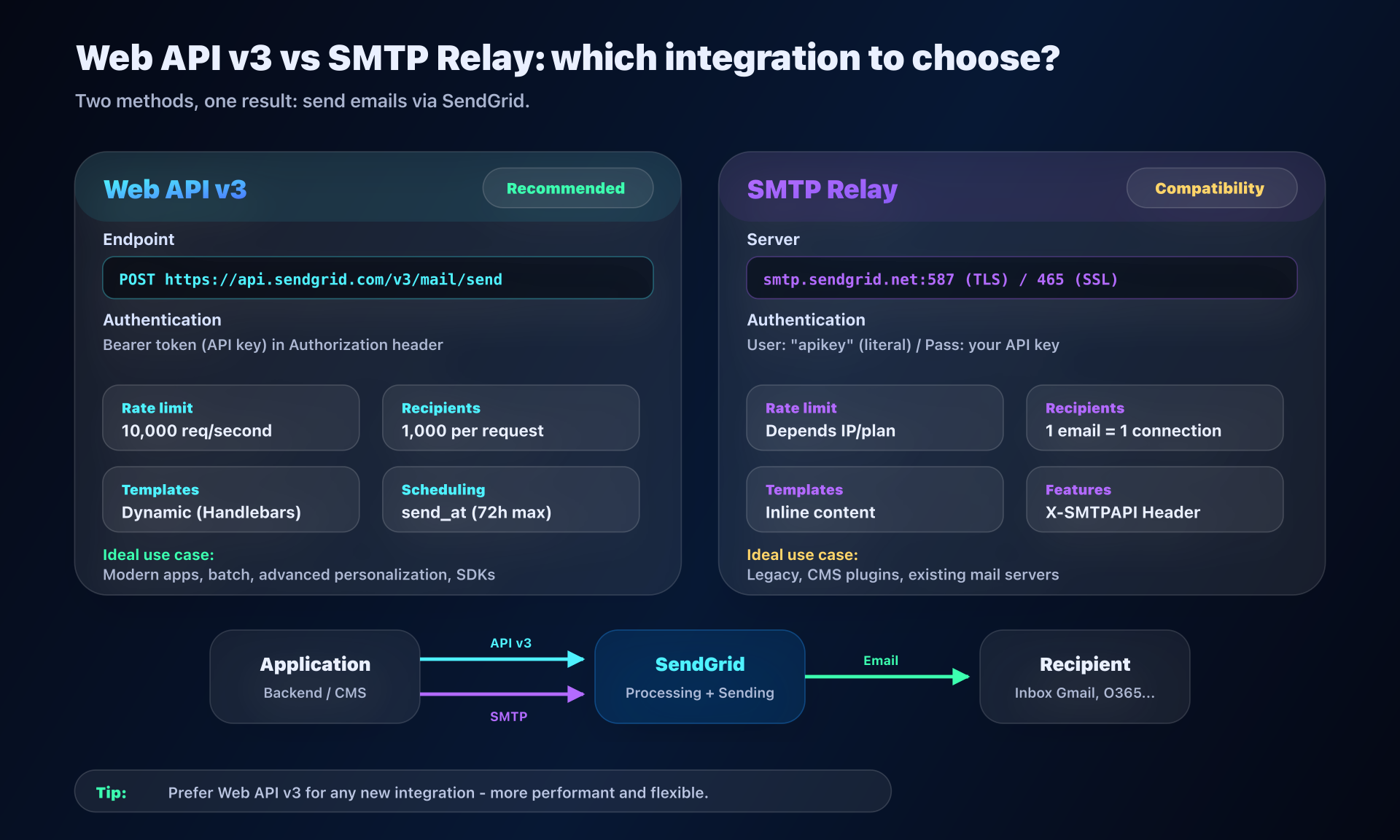

Web API v3 vs SMTP Relay: architecture and integration choice

SendGrid offers two integration methods for transactional email, both available from paid plans onwards.

Technical comparison

Criterion	Web API v3	SMTP Relay
Endpoint	POST https://api.sendgrid.com/v3/mail/send	smtp.sendgrid.net ports 587/465
Authentication	Bearer token (API key)	User: apikey / Pass: API key
Rate limit	10,000 requests/second	Depends on IP and plan
Recipients/req	Up to 1,000 (personalizations)	1 email = 1 SMTP connection
Templates	Dynamic Templates (Handlebars)	Inline content only
Scheduling	send_at (up to 72h in advance)	Via X-SMTPAPI header
Tracking	Native (click, open, Google Analytics)	Via X-SMTPAPI
Compatibility	Requires SDK or HTTP client	Any SMTP-compatible system
Ideal use case	Modern apps, batch, advanced personalization	Legacy, CMS plugins, mail servers

When to choose Web API v3?

Web API v3 is SendGrid's recommended method for any new integration. It's accessible at POST https://api.sendgrid.com/v3/mail/send (or api.eu.sendgrid.com for the EU region).

Key advantages:

• Personalizations: send up to 1,000 recipients in a single request, each receiving different personalized content
• Dynamic Templates: Handlebars syntax with conditions, loops, comparisons, date formatting
• Scheduling: schedule sending up to 72 hours in advance with cancellation option
• Generous rate limit: 10,000 requests/second on the mail/send endpoint

Personalization example:

{
  "personalizations": [{
    "to": [{"email": "user@captaindns.com", "name": "John Smith"}],
    "dynamic_template_data": {
      "first_name": "John",
      "order_number": "ORD-12345",
      "amount": "$149.90"
    }
  }],
  "from": {"email": "orders@captaindns.com"},
  "template_id": "d-abc123def456"
}

Official SDKs: SendGrid maintains 7 official SDKs (Node.js, Python, PHP, Ruby, Go, Java, C#) that encapsulate the REST API and simplify integration.

When to choose SMTP Relay?

SMTP Relay is ideal for legacy systems or applications that only support SMTP.

Official configuration:

SMTP server: smtp.sendgrid.net
SMTP user: apikey (literally the string "apikey")
SMTP password: [your SendGrid API key]
Port: 587 (TLS recommended) or 465 (SSL) or 2525 (fallback)

Critical point: SMTP authentication uses a specific configuration. The username is literally the string apikey (not your account identifier), and the password is your SendGrid API key.

X-SMTPAPI Header: allows access to advanced features via SMTP (categories, unique_args, filters, scheduling, substitution tags). Maximum size: 10,000 bytes.

Example X-SMTPAPI header for tracking:

{
  "category": ["order_confirmation"],
  "unique_args": {
    "order_id": "ORD-12345",
    "customer_id": "CUST-789"
  },
  "filters": {
    "clicktrack": {"settings": {"enable": 1}},
    "opentrack": {"settings": {"enable": 1}}
  }
}

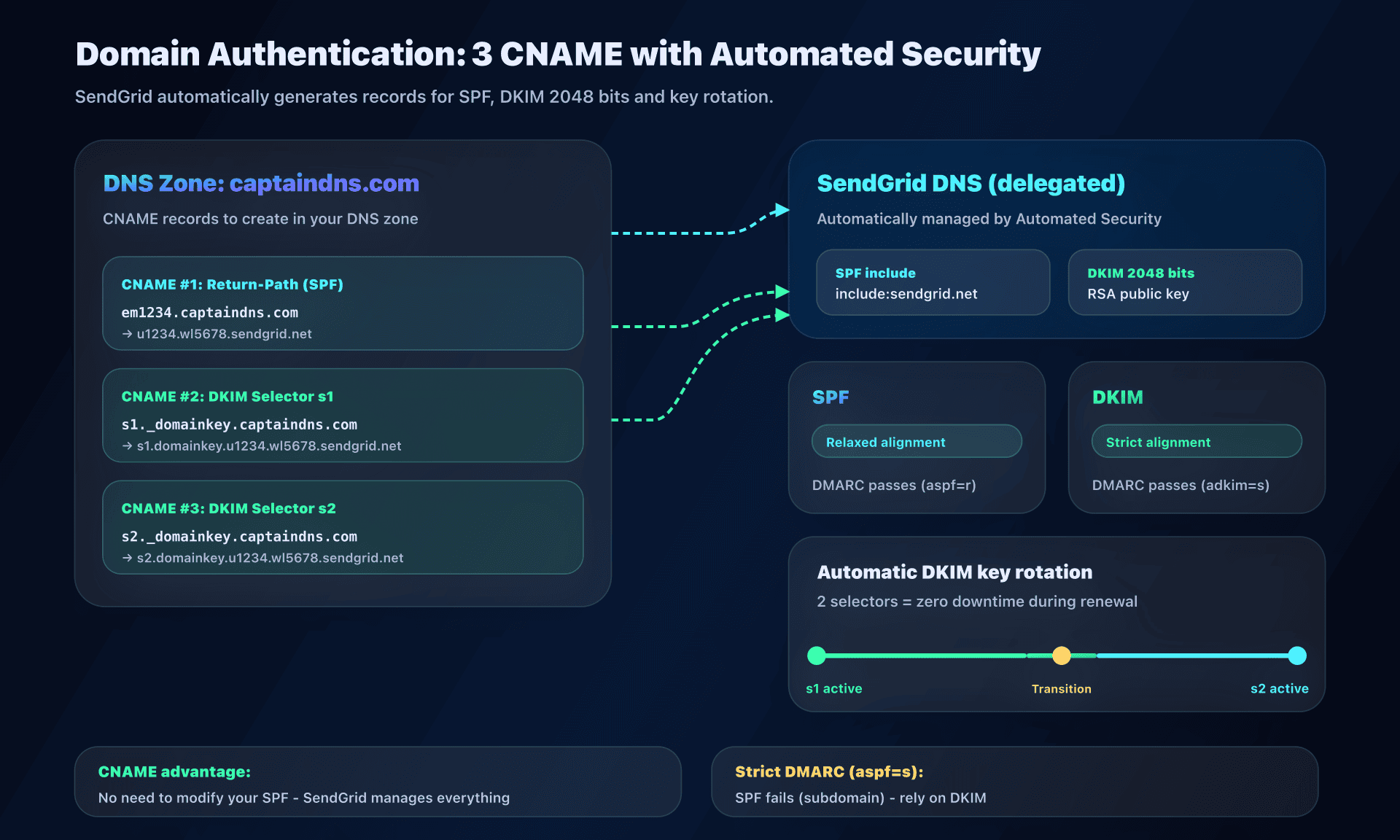

Domain Authentication: SPF, 2048-bit DKIM and DMARC alignment

Domain authentication with SendGrid generates the necessary DNS records for SPF, DKIM and DMARC alignment. The process takes place in Settings > Sender Authentication > Domain Authentication.

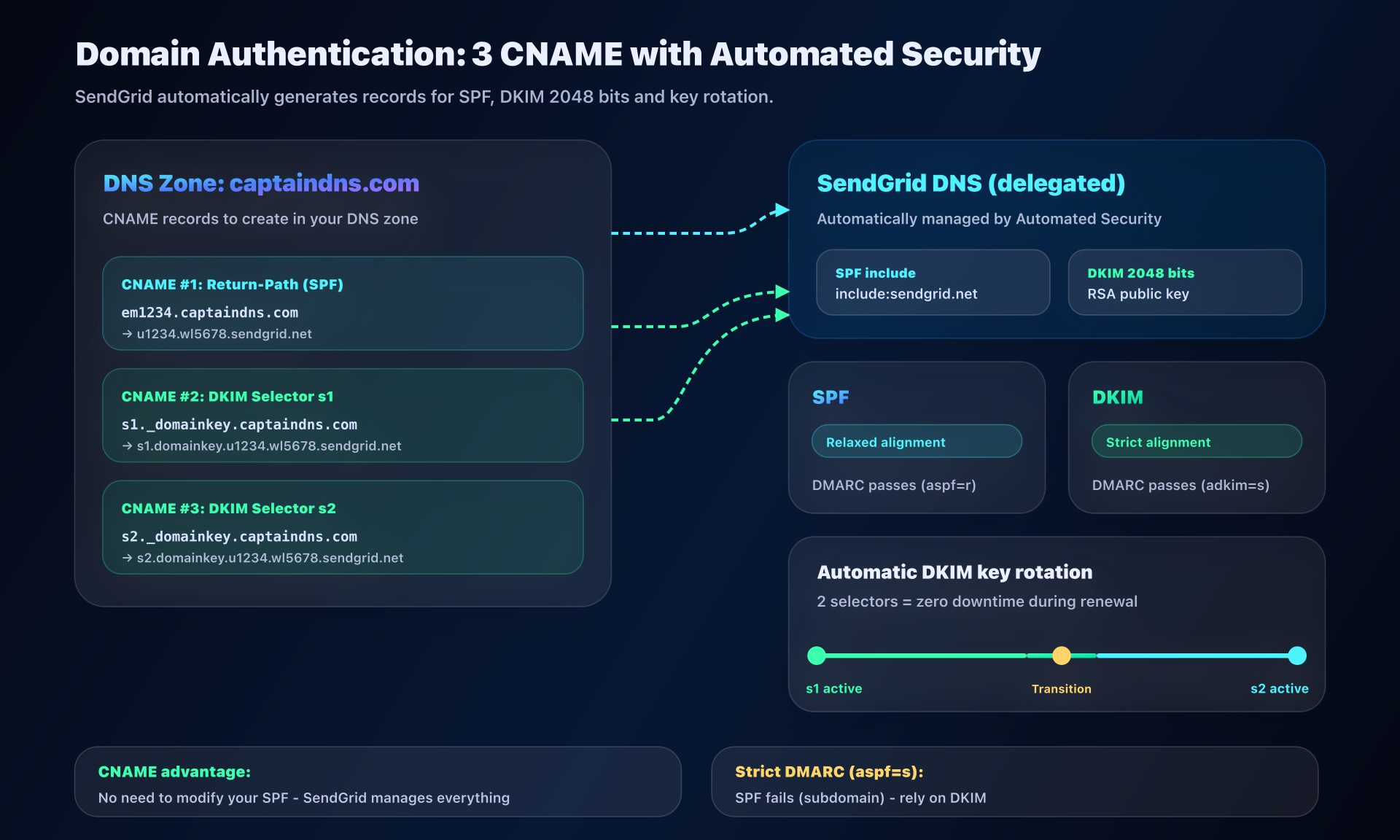

Architecture with Automated Security (recommended)

With Automated Security enabled, SendGrid generates 3 CNAME records:

1. CNAME for Return-Path: em1234.captaindns.com pointing to SendGrid
2. CNAME DKIM s1: s1._domainkey.captaindns.com → s1.domainkey.u1234.wl5678.sendgrid.net
3. CNAME DKIM s2: s2._domainkey.captaindns.com → s2.domainkey.u1234.wl5678.sendgrid.net

Advantages of this architecture:

• Automatic DKIM key rotation: the two selectors (s1 and s2) allow SendGrid to change keys without service interruption
• 2048-bit DKIM keys by default since May 2021 (earlier configurations may use 1024 bits)
• No manual SPF record required: the CNAME delegates SPF management to SendGrid
• Customizable selectors: 1-3 alphanumeric characters in advanced settings

Return-Path and SPF alignment: a major advantage

The Return-Path (Envelope From) is crucial for DMARC alignment. By default, SendGrid uses a subdomain in the format em[XXX].captaindns.com:

• SPF passes automatically because the CNAME delegates SPF management to SendGrid
• SPF alignment works in relaxed mode (the subdomain em1234.captaindns.com matches the parent domain captaindns.com)
• No need to modify your main SPF: the CNAME handles everything

However, for a strict DMARC policy (aspf=s), SPF alignment will fail because the Return-Path domain will never exactly match the From domain. The solution is to rely on DKIM for DMARC alignment, which supports strict mode (adkim=s).

Custom Return Path

The Custom Return Path option in advanced settings allows you to customize the subdomain (for example mail.captaindns.com instead of em1234.captaindns.com).

Link Branding

Link Branding replaces SendGrid domains in tracked links with your own domain. Instead of sendgrid.net/click/xxx, links will display url1234.captaindns.com/click/xxx. This configuration requires 2 additional CNAME records and improves recipient trust.

Migration to 2048-bit DKIM

To migrate an earlier configuration (1024-bit keys) to 2048 bits, you need to create a new domain authentication with a new custom selector not previously used.

Dedicated IP vs shared IP: deliverability strategy

SendGrid officially recommends a dedicated IP from 50,000 emails per month. Beyond 200,000-300,000 monthly emails, two dedicated IPs are advised.

Shared IP (Free and Essentials plans)

Advantages:

• No warmup needed
• Reputation maintained by SendGrid
• Ideal for low or irregular volumes

Disadvantages:

• Exposure to reputation risks related to other senders in the pool
• Frequent blocklist issues with Microsoft/Outlook

Dedicated IP (Pro plan and higher)

The Pro plan includes 1 dedicated IP, with the option to add more at $30/month per additional IP.

Advantages:

• Isolated and controllable reputation
• Automatic IP Warmup function over 41 days
• Ability to separate flows (transactional vs marketing)

Automatic IP Warmup: progressively limits sends according to a predefined schedule:

• Day 1: 20 emails/hour
• Day 41: Over 19 million/hour

IP Pools: allow grouping multiple dedicated IPs and assigning them to different flows. Separation is reinforced by Subusers (isolated sub-accounts with their own statistics, suppression lists and webhooks).

Subusers: Pro and Premier plans support up to 15 subusers per account.

When to choose a dedicated IP?

You need a dedicated IP if:

• Regular volume > 50,000 emails/month
• Need to separate transactional vs marketing reputation
• Client whitelisting or regulatory compliance requirements
• Volume > 200,000 emails/month: 2 dedicated IPs recommended

Stay on shared IP if:

• Volume < 50,000 emails/month
• Irregular or sporadic sends
• Business startup without history

2025 pricing and Free plan evolution

Email API plans

Plan	Monthly volume	Price/month	Dedicated IP	Subusers
Free	100/day (60d)	Free	No	No
Essentials 50K	50,000	$19.95	No	No
Essentials 100K	100,000	$34.95	No	No
Pro 100K	100,000	$89.95	1 included	Up to 15
Pro 300K	300,000	$249	1 included	Up to 15
Pro 700K	700,000	$499	1 included	Up to 15
Premier	Custom	Custom	1 included	Up to 15

Important evolution: In May 2025, SendGrid announced the removal of the Free plan with a 60-day transition period. Users must migrate to a paid plan to continue sending emails.

Additional costs

• Additional dedicated IP: $30/month
• Email Validation API: 2,500 validations/month included (Pro), 5,000 (Premier), then usage-based pricing
• Inbound Parse: included in all paid plans
• Overages: billed pro-rata (~$0.001/email on Pro)

Technical limits and rate limits

Rate limits by endpoint

Endpoint	Limit
v3 Mail Send	10,000 requests/second
General API	600 requests/minute
Email Validation	7 requests/second

When the limit is reached, the API returns an HTTP 429 code. The X-RateLimit-Remaining and X-RateLimit-Reset headers indicate the remaining quota and reset timestamp.

Recommended handling: exponential backoff and local queuing.

Quotas per message

Parameter	Limit
Maximum email size	30 MB
Recipients per message	1,000
Categories per message	10
Custom args	< 10,000 bytes
Unsubscribe groups	200 per account

Suppression management

SendGrid automatically maintains several suppression lists:

• Global Suppressions: global unsubscribes
• Group Unsubscribes: via ASM (Advanced Suppression Manager)
• Bounces: hard and soft
• Spam Reports
• Invalid Emails

Addresses are suppressed indefinitely by default, with configurable purge option from 1 to 3650 days for bounces.

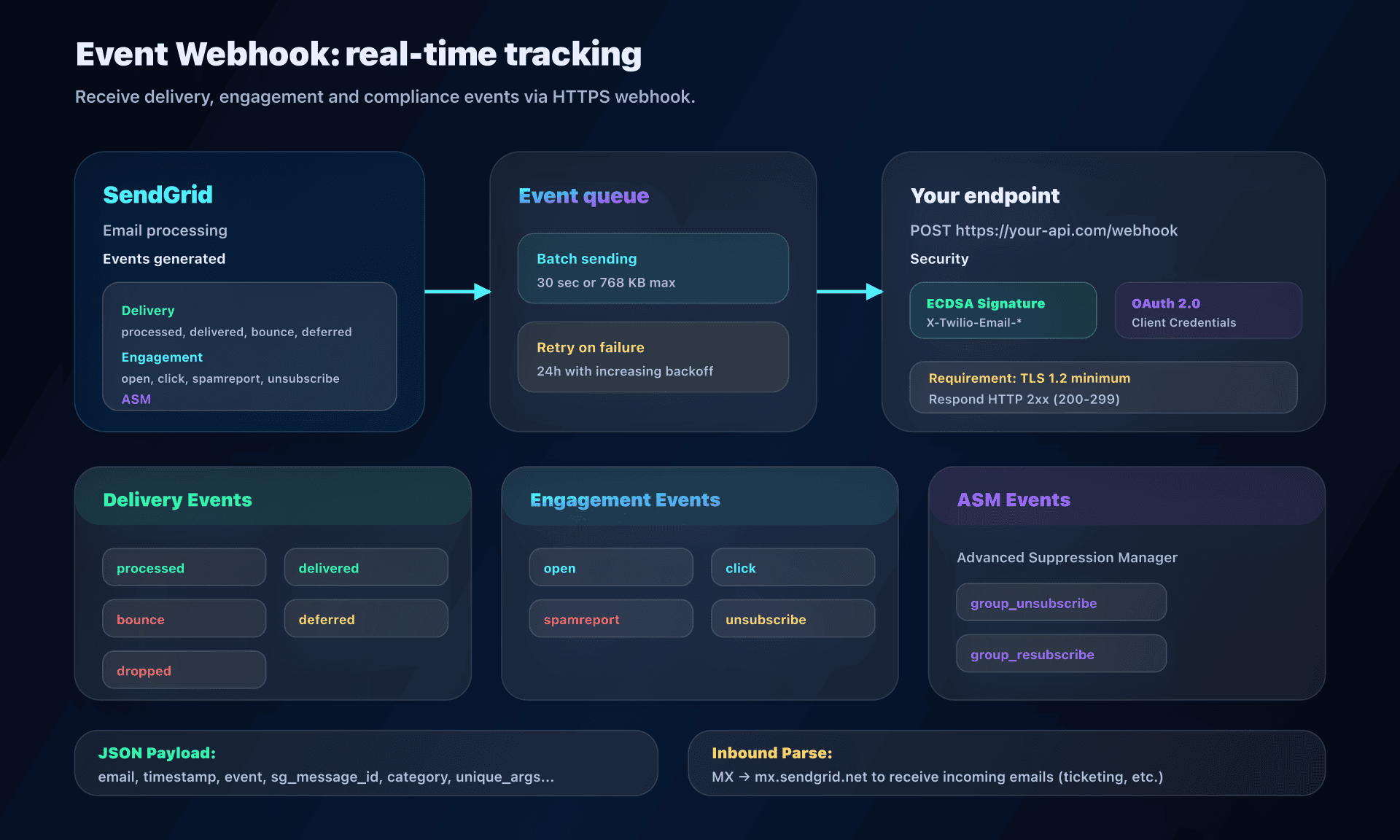

Event Webhook and real-time tracking

The event webhook allows receiving real-time notifications for delivery, engagement and compliance.

Available events

• Delivery: processed, dropped, delivered, deferred, bounce
• Engagement: open, click, spamreport, unsubscribe
• ASM: group_unsubscribe, group_resubscribe

Behavior and retry

Events are sent in batches within 30 seconds or when the batch reaches 768 KB. In case of failure (non-2xx response), SendGrid retries for 24 hours with increasing intervals.

Security

Webhook security can be ensured by:

• ECDSA signature: headers X-Twilio-Email-Event-Webhook-Signature and X-Twilio-Email-Event-Webhook-Timestamp
• OAuth 2.0 Client Credentials

Requirement: endpoint must support TLS 1.2 minimum.

Inbound Parse

Inbound Parse allows receiving and parsing incoming emails. Configuration requires an MX record pointing to mx.sendgrid.net on a dedicated subdomain.

SendGrid automatically extracts:

• Headers
• Body (text and HTML)
• Attachments
• Spam score (optional)

Use cases: ticketing systems, bidirectional communication workflows.

Advanced features

Email Validation API

Available on Pro and Premier plans only. Uses machine learning trained on over 100 billion emails.

Checks:

• Syntax
• DNS records
• Disposable address detection
• Role address detection
• Verdict: Valid / Risky / Invalid + confidence score

Sandbox Mode

Allows testing request format without actually sending email.

Enabled via mail_settings.sandbox_mode.enable: true, it:

• Validates JSON structure
• Returns a 200 code (vs 202 for actual sends)
• Doesn't consume credits

Categories and unique_args

Enable granular tracking:

• Categories: statistical grouping (newsletters, receipts, alerts)
• unique_args (custom_args in v3): specific identifiers (order number, customer ID) returned in webhook events

Action plan: integration in 5 steps

1. Create account and generate API key

• Create a SendGrid account (Essentials plan minimum since Free removal)
• Generate an API key in Settings > API Keys
• Define permissions (Full Access or Mail Send only)

2. Configure Domain Authentication

• Go to Settings > Sender Authentication > Domain Authentication
• Enable Automated Security (recommended)
• Create the 3 CNAME records at your registrar:
  1. Return-Path (em1234.captaindns.com)
  2. DKIM s1 (s1._domainkey.captaindns.com)
  3. DKIM s2 (s2._domainkey.captaindns.com)
• Verify DNS propagation (24-48h)

3. Choose integration method

Option A: Web API v3

• Install official SDK (npm install @sendgrid/mail, pip install sendgrid, etc.)
• Implement the POST /v3/mail/send endpoint
• Create Dynamic Templates if needed

Option B: SMTP Relay

• Configure your app/plugin:
  • Host: smtp.sendgrid.net
  • Port: 587 (STARTTLS)
  • User: apikey
  • Password: your API key

4. Configure webhooks

• Go to Settings > Mail Settings > Event Webhook
• Define your endpoint URL (HTTPS + TLS 1.2)
• Select events (delivered, bounced, etc.)
• Enable ECDSA signature for security

5. Test and monitor

• Send a test email
• Verify in Activity Feed that the email is delivered
• Check webhook events
• Monitor statistics (open rate, bounce rate)

FAQ

Why does SendGrid use two DKIM selectors (s1 and s2)?

The two selectors allow automatic DKIM key rotation without service interruption. When SendGrid wants to renew keys for security reasons, it can generate a new key on s2 while s1 is still active, then progressively switch traffic. This avoids any deliverability interruption during key changes.

Do I need to add SendGrid to my SPF record?

No, with Domain Authentication and Automated Security, it's unnecessary. The Return-Path CNAME (em1234.captaindns.com) automatically delegates SPF management to SendGrid. Your main SPF record doesn't need to mention SendGrid. Exception: if you also send directly from your servers, you must include them in your SPF.

How does scheduled sending with cancellation work?

Use send_at (Unix timestamp in seconds, max 72h in advance). To enable cancellation, first generate a batch_id via POST /v3/mail/batch, include it in the send request, then submit a cancellation at least 10 minutes before the scheduled time via POST /v3/user/scheduled_sends.

What's the actual recipient limit per API call?

Maximum 1,000 recipients via the personalizations array (to + cc + bcc combined). Each recipient can receive different personalized content via dynamic_template_data. To send to 10,000 people, you need 10 API calls (limited to 10,000 req/s).

Can I use the Essentials plan for critical production?

Yes, but without dedicated IP. The Essentials plan uses shared IPs, exposing you to collective reputation risks. For critical transactional emails (order confirmations, password resets), the Pro plan with dedicated IP is recommended from 50,000 emails/month. Below that, Essentials is sufficient if your volume is regular.

How to handle the 10,000 req/s rate limits?

Implement exponential backoff and local queuing. Monitor X-RateLimit-Remaining and X-RateLimit-Reset headers. If you hit 429, wait for reset or slow down. For very large volumes, use multiple API keys and distribute calls (rate limit per API key).

Does the X-SMTPAPI header also work with Web API v3?

No, X-SMTPAPI is specific to SMTP Relay. With Web API v3, use native JSON parameters: categories, custom_args, mail_settings (tracking), send_at (scheduling). Web API offers finer and more structured control than JSON in an SMTP header.

Glossary

• Web API v3: SendGrid's REST API for sending transactional emails. Main endpoint: POST /v3/mail/send. Rate limit: 10,000 requests/second. Recommended method for any new integration.

• SMTP Relay: SendGrid's SMTP server (smtp.sendgrid.net) allowing sending via standard SMTP protocol. Authentication: user apikey + password = API key. Available ports: 587 (TLS), 465 (SSL), 2525 (fallback).

• Personalizations: JSON array in Web API v3 allowing sending to up to 1,000 recipients per request, each receiving personalized content via dynamic_template_data.

• Dynamic Templates: SendGrid template system using Handlebars syntax. Supports variables, conditions, loops, comparisons, date formatting. Triple braces {{{html}}} for unescaped HTML.

• Domain Authentication: DNS configuration to authenticate your domain with SendGrid. With Automated Security: 3 CNAMEs (Return-Path + DKIM s1 + DKIM s2). Generates 2048-bit DKIM keys with automatic rotation.

• Return-Path (Envelope From): Technical address used for SMTP routing and bounces. SendGrid uses a subdomain of your domain (em1234.captaindns.com), enabling relaxed SPF alignment for DMARC. Customizable via Custom Return Path.

• Automated Security: Recommended option for Domain Authentication. Generates CNAMEs instead of TXT, enables automatic DKIM key rotation, and uses 2048-bit keys by default.

• IP Warmup: Automatic ramp-up process for a new dedicated IP. 41-day schedule: from 20 emails/hour (D1) to over 19 million/hour (D41). Avoids massive spam and progressively builds reputation.

• Subusers: Isolated sub-accounts with separate statistics, suppression lists and webhooks. Available on Pro and Premier plans (up to 15 subusers). Enable reputation separation by client or flow.

• IP Pools: Groups of dedicated IPs assignable to different flows (transactional vs marketing, by client, by brand). Reinforce reputation separation.

• Event Webhook: HTTP endpoint called by SendGrid during events (delivered, bounced, opened, clicked). Sent in batches (30s or 768 KB). Retry for 24h on failure. Security: ECDSA signature or OAuth 2.0.

• X-SMTPAPI: JSON header specific to SMTP Relay for accessing advanced features (categories, unique_args, filters, scheduling). Max size: 10,000 bytes. Not used with Web API v3.

• Link Branding: DNS configuration to replace SendGrid domains in tracked links with your own domain. Requires 2 additional CNAMEs. Improves trust and reputation.

• Sandbox Mode: Test mode that validates JSON structure without actually sending. Enabled via mail_settings.sandbox_mode.enable: true. Returns 200 code (vs 202 in production). Doesn't consume credits.

• Email Validation API: Email address validation service using machine learning (Pro/Premier only). Checks syntax, DNS, detects disposables and roles. Verdict: Valid / Risky / Invalid + score.

• Inbound Parse: Service for receiving and parsing incoming emails. Configuration: MX record to mx.sendgrid.net on subdomain. Extracts headers, body, attachments, spam score. Use cases: ticketing, bidirectional communication.

Official sources

• SendGrid Official Documentation
• Twilio SendGrid Pricing
