Mandrill (Mailchimp Transactional): Technical Guide for Transactional Email

⚡TL;DR

• Mandrill requires a paid Mailchimp account (Standard at $20/month minimum) to be activated.
• DKIM configuration requires 2 mandatory CNAME records (mte1._domainkey and mte2._domainkey) pointing to Mandrill.
• SPF alone is not enough for DMARC: the Return-Path uses mandrillapp.com by default. Customize it via CNAME for full alignment.
• Block pricing of 25,000 emails: $20/block up to 500k, then decreasing to $10/block at 4M+.
• Dedicated IP available at $29.95/month with built-in automatic warm-up.

Introduction

Mandrill, now officially named Mailchimp Transactional Email, is Intuit's transactional email service (via Mailchimp). Launched in 2012 as a standalone product, it became a paid add-on exclusively accessible to Mailchimp subscribers in 2016.

With infrastructure capable of handling up to 157 billion emails per month and a median delivery time of less than 1 second, Mandrill remains a major player in transactional email. However, its tight integration with Mailchimp requires specific prerequisites and configurations that this guide details.

This guide is intended for developers, DevOps engineers, and system admins looking to integrate Mandrill for transactional email: order confirmations, password resets, notifications, and system alerts.

Prerequisites: Mandatory Paid Mailchimp Account

Unlike most ESPs that offer a Free plan or standalone free trial, Mandrill requires an active Mailchimp subscription.

Eligible Plans

Mailchimp Plan	Minimum Price	Mandrill Access
Free	$0/month	Not eligible
Essentials	$13/month	Not eligible
Standard	$20/month	Eligible
Premium	$350/month	Eligible

Effective minimum cost: $20/month (Mailchimp Standard) + $20/month (1 Mandrill block of 25,000 emails) = $40/month minimum.

Mandrill Activation

1. Log in to your Mailchimp Standard or Premium account
2. Navigate to Automations → Transactional Email
3. Click Launch App to access the Mandrill dashboard
4. The Mandrill dashboard is accessible at mandrillapp.com

Limited Free Trial

Mandrill offers 500 free emails for new users, limited to verified domains and with no commitment. This quota allows you to test the integration before subscribing to a paid block.

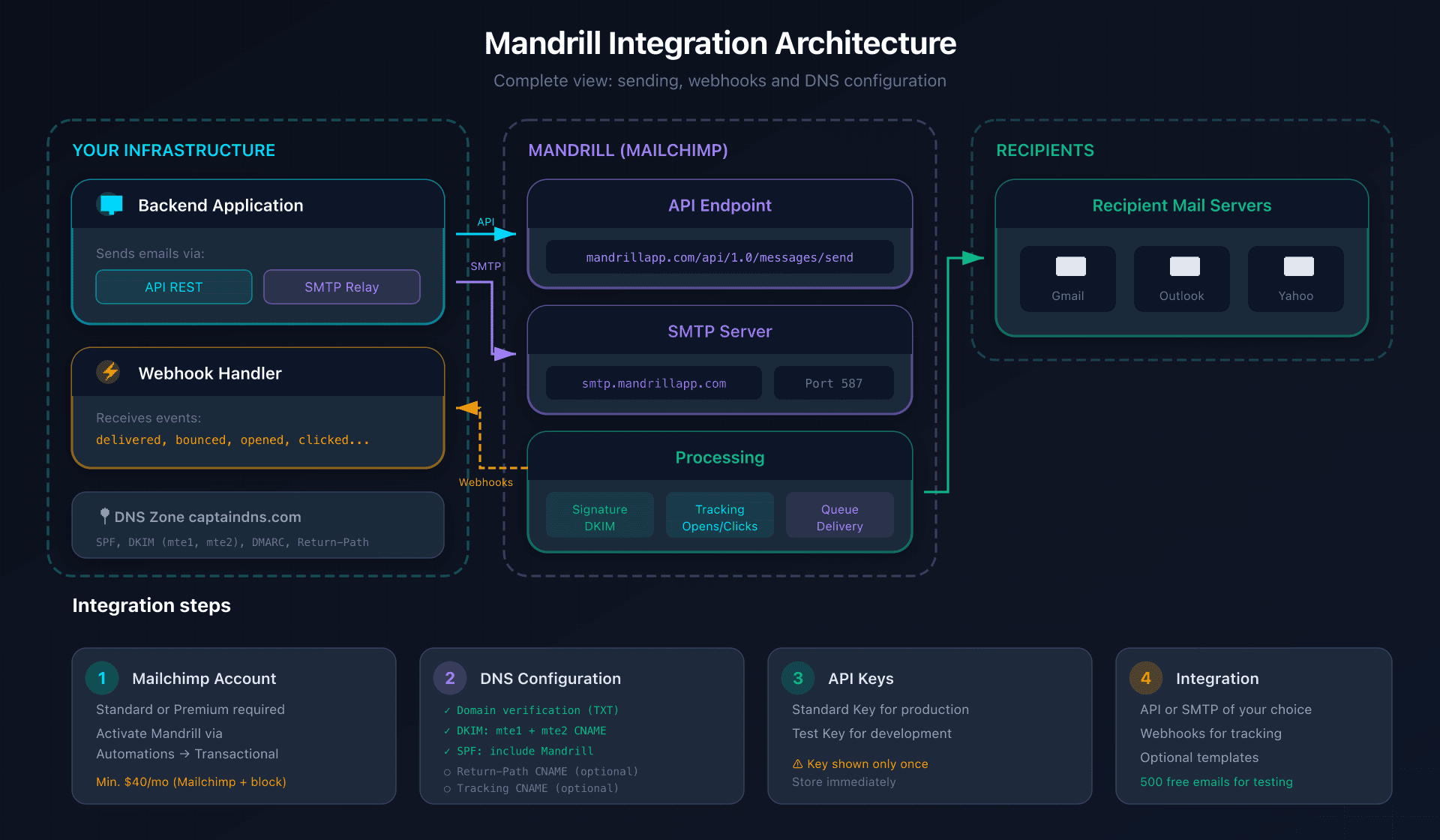

API or SMTP Relay: Which Choice for Transactional Email?

Mandrill offers two integration methods, both with full access to features.

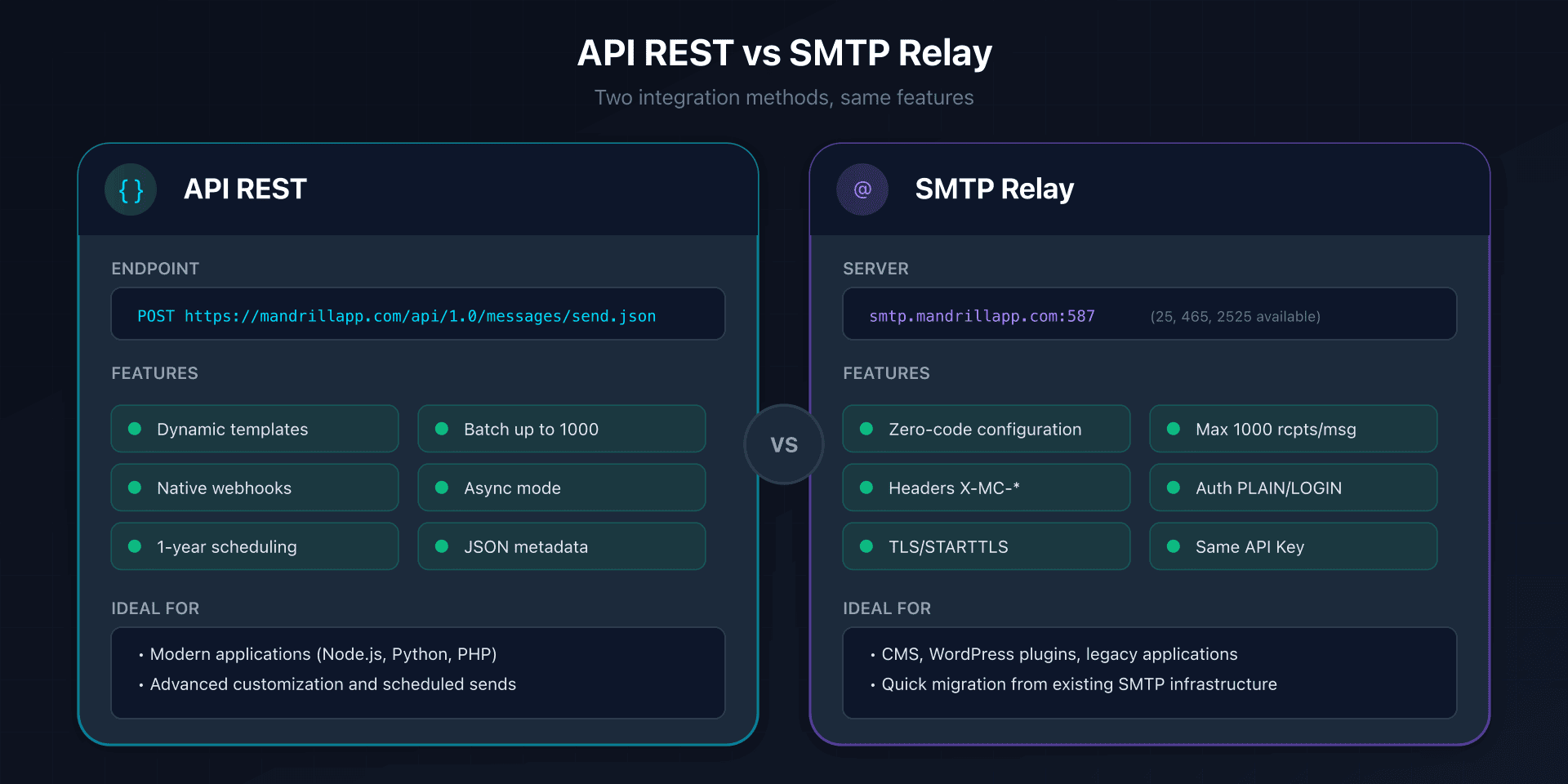

Quick Comparison

Criteria	REST API	SMTP Relay
Endpoint	mandrillapp.com/api/1.0/	smtp.mandrillapp.com
Authentication	API key in JSON body	API key as SMTP password
HTTP Method	POST only	N/A
Max Recipients	No fixed limit (< 10 MB payload)	1,000 per message
Scheduling	send_at parameter (up to 1 year)	X-MC-SendAt header
Templates	template_name parameter	X-MC-Template header
Tracking	track_opens, track_clicks parameters	X-MC-Track headers

When to Choose the REST API?

Choose the API if you need:

• Advanced customization: stored templates, dynamic variables (merge_vars), Handlebars or Mailchimp syntax
• Asynchronous sending: async: true parameter for faster responses
• Scheduling: schedule sends up to 1 year in the future
• Metadata: tags, metadata for tracking and segmentation

Main endpoint: POST https://mandrillapp.com/api/1.0/messages/send.json

Simple send example:

curl -sS -X POST "https://mandrillapp.com/api/1.0/messages/send.json" \
  --header 'Content-Type: application/json' \
  --data-raw '{
    "key": "YOUR_API_KEY",
    "message": {
      "html": "<p>Hello {{firstname}}, welcome!</p>",
      "text": "Hello, welcome!",
      "subject": "Confirmation of your registration",
      "from_email": "no-reply@captaindns.com",
      "from_name": "YourProduct",
      "to": [{"email": "user@captaindns.com", "name": "John Doe", "type": "to"}],
      "track_opens": true,
      "track_clicks": true,
      "tags": ["transactional", "signup"],
      "metadata": {"user_id": "12345"}
    }
  }'

When to Choose SMTP Relay?

Choose SMTP if you need:

• Maximum compatibility: CMS, legacy applications, existing mail servers
• Zero-code configuration: just enter host + port + credentials
• Features via headers: all API parameters are available via X-MC-* headers

Official configuration:

SMTP server: smtp.mandrillapp.com
Port: 587 (recommended), 25, 2525 (STARTTLS), 465 (SSL/TLS)
Username: Any string (recommended: Mailchimp email)
Password: Your Mandrill API key
Authentication: PLAIN or LOGIN

Note: The SMTP password in Mandrill is the same API key as for the REST API.

Proprietary SMTP Headers (X-MC-*)

Mandrill allows you to control all features via SMTP headers:

Header	Usage	Example
X-MC-Track	Tracking opens/clicks	opens, clicks_htmlonly
X-MC-Tags	Tags for segmentation	password_reset,transactional
X-MC-Metadata	JSON metadata	{"user_id": "123"}
X-MC-Template	Stored template	welcome-email
X-MC-MergeVars	JSON dynamic variables	[{"rcpt":"a@b.com","vars":[...]}]
X-MC-SendAt	Scheduling	2026-02-01 10:00:00 (UTC)
X-MC-IPPool	Dedicated IP pool	Main Pool
X-MC-Subaccount	Subaccount	client-123

DNS Configuration: DKIM, SPF and Return-Path

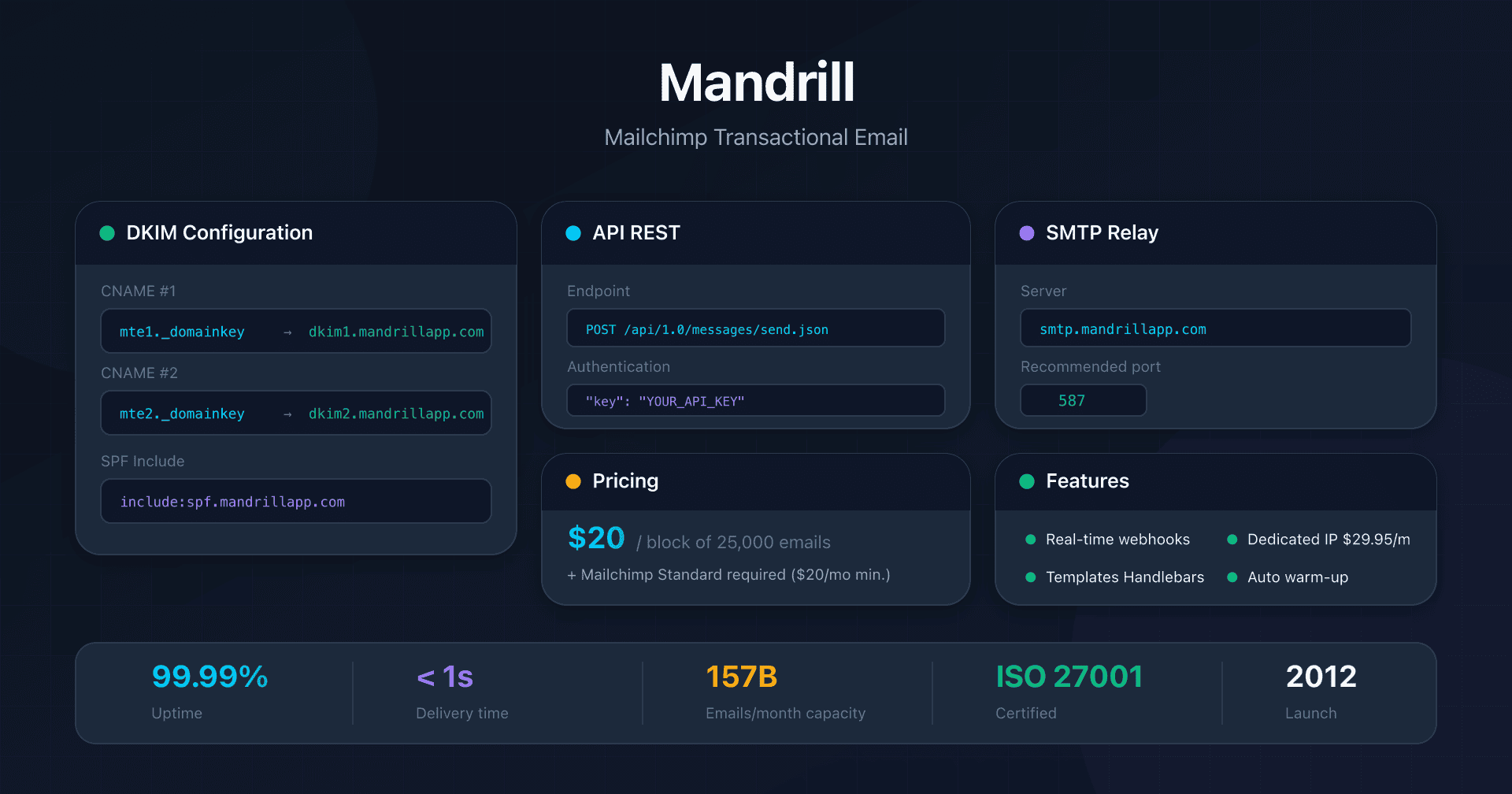

DKIM: Two Mandatory CNAME Records

Mandrill uses a CNAME method for DKIM, allowing automatic key rotation without intervention on your part.

Required DNS records:

Type: CNAME
Name: mte1._domainkey.captaindns.com
Target: dkim1.mandrillapp.com

Type: CNAME
Name: mte2._domainkey.captaindns.com
Target: dkim2.mandrillapp.com

Characteristics:

• Key size: 1024-bit RSA by default
• Rotation: automatic, managed by Mandrill
• Two selectors: mte1 and mte2 for redundancy

Legacy method (TXT): if you have an older configuration, you may have a direct TXT record with the mandrill._domainkey selector. This method is deprecated in favor of CNAMEs.

SPF: Mandatory Include

Mandrill explicitly recommends adding their SPF include:

v=spf1 include:spf.mandrillapp.com ~all

Why? By default, the Return-Path uses mandrillapp.com, so SPF authenticates that domain and not yours. The SPF include validates Mandrill IPs, but DMARC alignment passes via DKIM (which signs your domain).

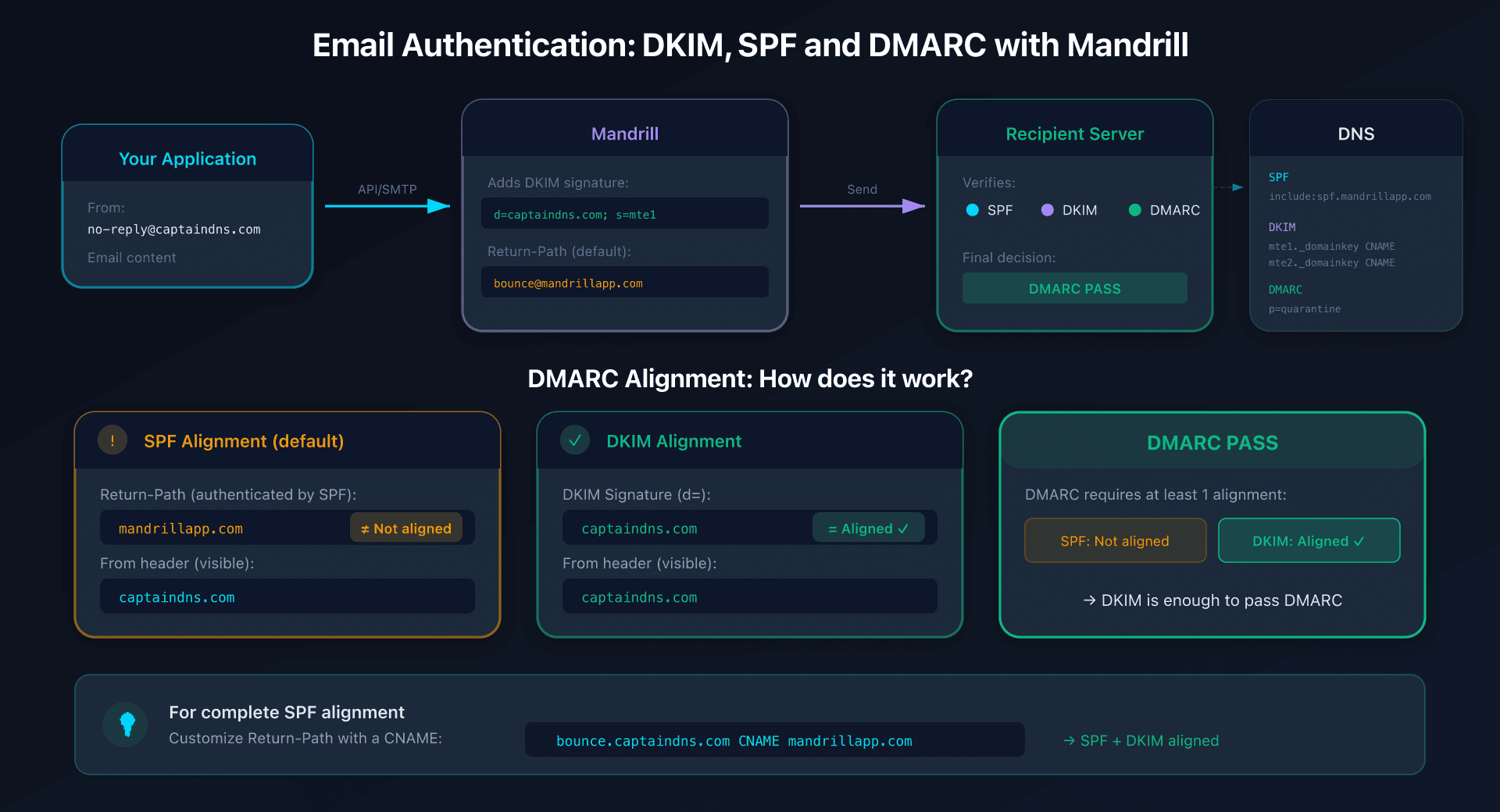

Custom Return-Path: The Key to SPF Alignment

For complete SPF alignment with DMARC, you need to customize the Return-Path with your own subdomain.

CNAME configuration:

Type: CNAME
Name: bounce.captaindns.com
Target: mandrillapp.com

Impact on DMARC:

Configuration	SPF Aligned	DKIM Aligned	DMARC Result
Default (no customization)	No	Yes	PASS (via DKIM)
With custom Return-Path	Yes	Yes	PASS (both)

Limit: only one custom Return-Path domain per Mandrill account.

Custom Tracking Domain

By default, tracking links use mandrillapp.com. For consistent branding:

Type: CNAME
Name: clicks.captaindns.com
Target: mandrillapp.com

Warning: Mandrill does not provide automatic SSL/TLS for custom tracking domains. For HTTPS, use a CDN like Cloudflare as a proxy.

Domain Verification

Before sending from your domain, you must verify it in Mandrill.

Method 1: TXT Record

Create a TXT record with the unique code provided by Mandrill:

Type: TXT
Name: captaindns.com (or @)
Value: mandrill_verify.YOUR_UNIQUE_CODE

Method 2: Email Validation

Mandrill sends a verification email to a postmaster or admin address on your domain.

Propagation time: typically 5-30 minutes, up to 48 hours maximum.

API Keys: Standard vs Test

Mandrill offers two types of API keys:

Type	Usage	Behavior
Standard API Key	Production	Real sends, active billing
Test API Key	Development/staging	Emails not sent, max 10,000/day

Creating a Test Key: check "Test Key" when creating in Settings > API Keys.

Test addresses to simulate scenarios:

• reject@test.mandrillapp.com: rejection
• hard_bounce@test.mandrillapp.com: hard bounce
• soft_bounce@test.mandrillapp.com: soft bounce
• spam@test.mandrillapp.com: spam complaint

Important: keys are displayed only once at creation. Store them immediately in a secrets manager.

Pricing: The Block System

Mandrill uses a block pricing model of 25,000 emails, with decreasing prices based on volume.

Pricing Grid

Blocks	Emails/month	Price/block	Cost for 25k
1-20	1 - 500,000	$20	$20
21-40	500k - 1M	$18	$18
41-80	1M - 2M	$16	$16
81-120	2M - 3M	$14	$14
121-160	3M - 4M	$12	$12
161+	4M+	$10	$10

Cost examples:

• 25,000 emails/month: $20 (1 block)
• 100,000 emails/month: $80 (4 blocks × $20)
• 1,000,000 emails/month: $720 (20 blocks × $20 + 20 blocks × $18)

Warning: unused emails do not roll over from one month to the next.

Additional Costs

Item	Cost
Mailchimp subscription	$20/month minimum (Standard)
Dedicated IP	$29.95/month per IP
Total minimum cost	~$40/month (Mailchimp + 1 block)

Dedicated IP and Automatic Warm-up

Shared IP vs Dedicated IP

Aspect	Shared IP (default)	Dedicated IP
Cost	Included	$29.95/month per IP
Reputation	Shared	Isolated
Warm-up	Not necessary	Automatic (30 days)
Minimum volume	None	Recommended: 50k+/week

Automatic Warm-up

Mandrill offers automatic warm-up for dedicated IPs:

• Duration: approximately 30 days
• Activation: check "Start Warming Up IP Immediately" at purchase
• Behavior: automatic progressive volume increase
• API: /ips/start-warmup and /ips/cancel-warmup

IP Pools

If you have multiple dedicated IPs, you can organize them into pools:

• Default pool: "Main Pool"
• Usage per message: ip_pool parameter (API) or X-MC-IPPool header (SMTP)
• Use case: separate transactional and marketing flows

Technical Limits

Per-Message Limits

Item	Limit
Max email size	25 MB (content + attachments)
Practical attachments	~18.75 MB (Base64 overhead ~33%)
SMTP recipients	1,000 per message
API recipients	No fixed limit (< 10 MB payload)
CSS inlining	Messages ≤ 256 KB

Rate Limits

Endpoint	Limit
/messages/search	20 calls/minute
General sending	Based on hourly quota (reputation)
Demo accounts	25 emails/hour fixed

Data Retention

Data Type	Duration
Delivered messages (details)	30 days
Bounced messages (details)	90 days
Raw bounces	7 days
Account/tag statistics	Indefinitely
API logs	Last 100 calls
Export links	7 days

Webhooks and Events

Mandrill offers a comprehensive webhook system for real-time tracking.

Available Events

Event	Description
send	Message sent
deferral	Message deferred
hard_bounce	Permanent bounce
soft_bounce	Temporary bounce
delivered	Message delivered
open	Email opened
click	Link clicked
spam	Marked as spam
unsub	Unsubscription
reject	Message rejected

Configuration and Security

Parameter	Value
Batching frequency	~1 minute
Max events/batch	1,000 or 1 MB
Retry attempts	Up to 20
Total retry duration	6-8 hours
Signature header	X-Mandrill-Signature
Algorithm	HMAC-SHA1 + Base64

Templates and Personalization

Supported Languages

Language	Syntax	Activation
Handlebars	{{variable}}	merge_language: "handlebars"
Mailchimp	*|VARIABLE|*	merge_language: "mailchimp"

Handlebars Syntax

Variables:

{{variable_name}}           <!-- Simple variable -->
{{{html_content}}}          <!-- Unescaped HTML -->
{{object.nested.property}}  <!-- Dot notation -->

Conditions:

{{#if user_name}}
    Hello, {{user_name}}!
{{else}}
    Hello!
{{/if}}

Loops:

{{#each products}}
    <p>{{name}}: {{price}} EUR</p>
{{/each}}

Inline Helpers

Helper	Function
{{upper "text"}}	Uppercase
{{lower "text"}}	Lowercase
{{title "text"}}	Title case
{{date "Y-m-d"}}	Current date
{{url "..."}}	URL-encode

Official and Community SDKs

Official SDKs

Language	Package	Installation
Python	mailchimp-transactional	pip install mailchimp-transactional
Node.js	@mailchimp/mailchimp_transactional	npm install @mailchimp/mailchimp_transactional
PHP	mailchimp/transactional	composer require mailchimp/transactional
Ruby	mailchimp_transactional	gem install mailchimp_transactional

Community SDKs

• .NET: Mandrill.net
• Java: lutung
• Go: keighl/mandrill

Security and Compliance

Certifications

Certification	Status
ISO 27001:2013	Certified (since 09/02/2022)
SOC 2 Type II	Compliant (reports via NDA)
SOC 3	Compliant

GDPR and Data

Item	Status
DPA available	Yes
Data location	United States
Data Privacy Framework	Certified (EU-US, UK, Swiss)
DPA URL	mailchimp.com/legal/data-processing-addendum/

HIPAA

Item	Status
HIPAA compliance	NOT supported
BAA available	NOT available

Important: do not use Mandrill for emails containing protected health information (PHI).

Encryption

Item	Value
Minimum TLS	TLS 1.2+
Opportunistic TLS	Enabled (graceful fallback)
SSLv3	Disabled since October 2014

Action Plan: Getting Started in 6 Steps

1. Verify Mailchimp Prerequisites

• Have a Mailchimp Standard ($20/month) or Premium ($350/month) account
• Free and Essentials plans are not eligible

2. Activate Mandrill

• Go to Automations → Transactional Email → Launch App
• Access the mandrillapp.com dashboard
• Take advantage of the 500 free test emails

3. Verify and Authenticate the Domain

Create the following DNS records:

# Domain verification
TXT  @                        mandrill_verify.YOUR_CODE

# DKIM (2 mandatory CNAMEs)
CNAME  mte1._domainkey        dkim1.mandrillapp.com
CNAME  mte2._domainkey        dkim2.mandrillapp.com

# SPF (add the include)
TXT  @                        v=spf1 include:spf.mandrillapp.com ~all

# Custom Return-Path (optional but recommended)
CNAME  bounce                 mandrillapp.com

# Custom tracking (optional)
CNAME  clicks                 mandrillapp.com

4. Generate API Keys

• Go to Settings → API Keys
• Create a Standard Key for production
• Create a Test Key (check "Test Key") for development
• Store keys immediately (displayed only once)

5. Choose and Configure the Sending Method

Option A: REST API

curl -X POST "https://mandrillapp.com/api/1.0/messages/send.json" \
  -H "Content-Type: application/json" \
  -d '{"key": "YOUR_KEY", "message": {...}}'

Option B: SMTP Relay

Host: smtp.mandrillapp.com
Port: 587
User: your-email@mailchimp.com
Password: YOUR_API_KEY

6. Configure Webhooks

• Go to Settings → Webhooks
• Add your endpoint URL
• Select the events to receive
• Implement signature verification (X-Mandrill-Signature)

Technical guides: other transactional email platforms

Discover our complete guides for other transactional email solutions:

• Postmark: DKIM configuration and REST API - Deliverability specialist, 1024-bit DKIM, Message Streams
• SendGrid: domain authentication and Web API v3 - 2048-bit DKIM with rotation, dedicated IP from 50k/month
• Mailgun: DKIM with automatic rotation - Native Return-Path, 120-day DKIM rotation
• Amazon SES: Easy DKIM and Custom MAIL FROM - $0.10/1000 emails, 7 EU regions
• Mailjet: API v3.1 and DKIM configuration - 2048/4096-bit DKIM, Sinch acquisition
• Brevo: DKIM and SPF configuration - 300 free emails/day, DKIM TXT or CNAME

FAQ

Can I use Mandrill without a Mailchimp account?

No, since April 2016, Mandrill is exclusively an add-on for paid Mailchimp accounts. You must have a Mailchimp Standard ($20/month) or Premium ($350/month) subscription to access Mandrill. Free and Essentials plans are not eligible.

What is the difference between Standard and Test API keys?

Standard keys send real emails and are billed normally. Test keys simulate sending without actually delivering messages, with a limit of 10,000 messages/day. Use Test keys for development and integration testing.

Why do I need 2 CNAME records for DKIM?

Mandrill uses two DKIM selectors (mte1 and mte2) to allow automatic key rotation without service interruption. Both CNAME records point to Mandrill infrastructure which manages transparent rotation.

Is SPF necessary if I already have DKIM configured?

SPF is recommended but not strictly necessary for DMARC with Mandrill. By default, the Return-Path uses mandrillapp.com, so only DKIM aligns with your From domain. For complete SPF alignment, customize the Return-Path with a CNAME to your subdomain.

How does automatic warm-up for dedicated IPs work?

Mandrill offers automatic warm-up of approximately 30 days for dedicated IPs. Activate it by checking "Start Warming Up IP Immediately" at purchase. The system progressively increases the allowed volume to establish a good reputation with ISPs.

Do unused emails roll over from one month to the next?

No, Mandrill email blocks expire at the end of each billing period. If you buy 1 block (25,000 emails) and only use 10,000, the remaining 15,000 are lost. Adjust your blocks based on your actual volume.

Is Mandrill HIPAA compliant for medical emails?

No, Mandrill is not HIPAA compliant and does not offer a BAA (Business Associate Agreement). Do not use Mandrill to send emails containing protected health information (PHI). Look for a HIPAA-certified ESP if you have this requirement.

How do I separate my transactional and marketing flows?

Use Mandrill subaccounts to isolate reputations and quotas. Each subaccount has its own denylist and statistics. You can also use IP pools if you have multiple dedicated IPs.

Glossary

• Mandrill: Intuit/Mailchimp transactional email service, launched in 2012. Became a paid add-on in 2016, accessible only to Mailchimp Standard or Premium subscribers.

• DKIM (DomainKeys Identified Mail): Cryptographic email signing protocol. Mandrill uses 2 CNAME selectors (mte1 and mte2) for automatic key rotation.

• Return-Path: Technical address used for bounces. Default is mandrillapp.com, customizable via CNAME for SPF alignment with DMARC.

• Block: Mandrill billing unit = 25,000 emails. Price from $20 to $10 depending on monthly volume.

• Test API Key: Special API key for development. Emails are not actually sent, limit of 10,000 messages/day.

• Warm-up: Ramp-up process for a new dedicated IP. Automatic with Mandrill (~30 days).

• Subaccount: Child account allowing isolation of reputation, quotas, and denylist for different flows or clients.

• X-MC-*: Prefix for Mandrill proprietary SMTP headers to control features (tracking, tags, templates, etc.).

Official Sources

• Mandrill Documentation
• Mandrill API Reference
