Behind the scenes of the CaptainDNS MCP

⚡TL;DR

🔨 Before plugging CaptainDNS into ChatGPT via MCP, we needed a clear setup: a dedicated MCP server placed between the hosts (ChatGPT, internal tools) and the existing CaptainDNS API.

• The MCP server holds no DNS or email logic: it delegates everything to the CaptainDNS backend through a secured internal API.
• MCP transport relies on HTTP + JSON-RPC, with a single /stream entry point aligned with the modern HTTP+SSE model.
• Exposed tools (dns_lookup, dns_propagation, email_auth_audit) are typed so the AI can discover and call them on its own.
• Early tests surfaced timeouts, 424 errors, and protocol subtleties (notifications, tools/list, tools/call) that forced us to harden the contract.
• This post walks through how we shaped the architecture, secured exchanges, and debugged the full chain.

Why a dedicated MCP server for CaptainDNS?

From a product perspective, CaptainDNS is a classic SaaS: a Next.js web interface (frontend) and a Go API (services/api) that carries the business logic (DNS, email, resolvers, logging, scoring).

Adding MCP does not mean exposing the API directly to a model: we chose to insert a dedicated MCP server (services/mcp-server) that acts as an adapter.

In practice:

• services/api remains the single source of truth (DNS, propagation, email).
• services/mcp-server is a strong client of that API:
  • it authenticates with a service token to prove it belongs to the CaptainDNS infrastructure;
  • it forwards a user Auth0 token when provided so quotas, logging, and permissions stay aligned.
• Hosts (ChatGPT, internal tools, agents) only see the MCP server and speak MCP/JSON-RPC, never the raw API.

This split lets us:

• decouple API evolution from the MCP contract,
• add AI-specific guardrails (rate limits, format controls, aggressive timeouts), and
• keep the architecture clean.

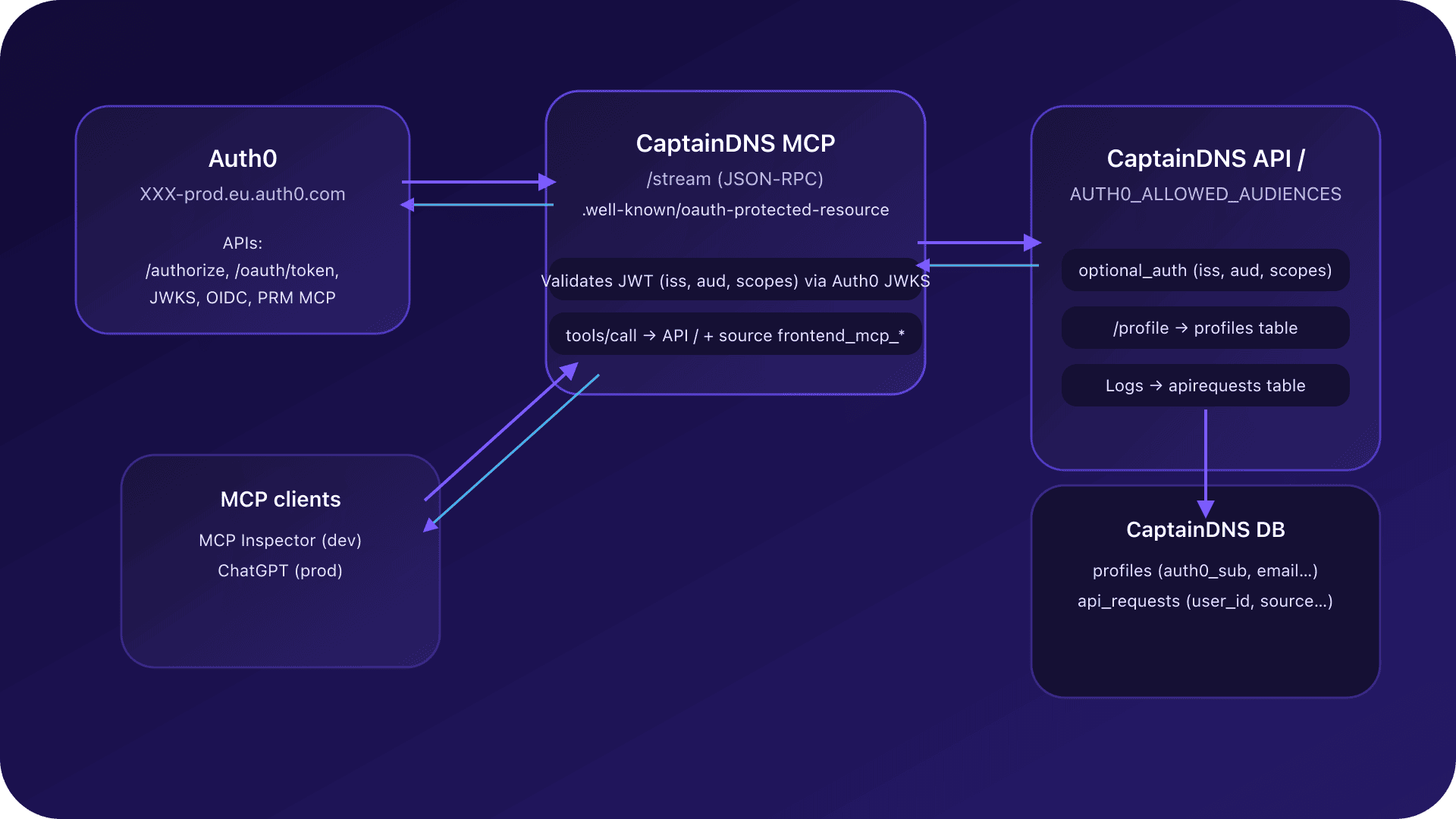

Architecture overview

At a high level, the architecture looks like this:

• MCP hosts: ChatGPT (Connectors), internal tools, other MCP clients.
• CaptainDNS MCP server:
  • exposes MCP tools (dns_lookup, dns_propagation, email_auth_audit, etc.) via JSON-RPC;
  • validates and normalizes inputs (domains, record types, DKIM selectors);
  • applies timeouts, quotas, and error classification.
• CaptainDNS API (services/api):
  • endpoints /resolve, /resolve/propagation, mail/domain-check;
  • database and resolvers;
  • logs, scoring, user profile.

The MCP server is a protocol bridge: it translates MCP calls (tools/list, tools/call) into internal HTTP calls, then rewraps the response in a format the MCP client and model can use.

MCP contract: initialize, tools/list, tools/call

The protocol relies on JSON-RPC 2.0 and three main server methods:

• initialize: protocol version negotiation and capabilities.
• tools/list: discovery of available tools.
• tools/call: execution of a named tool with typed arguments.

initialize: say who you are and what you support

When a host (e.g. ChatGPT) opens a session with the CaptainDNS MCP server, it starts with:

• method: "initialize";
• params.protocolVersion: a protocol version (e.g. "2025-06-18");
• params.clientInfo: client name and version (openai-mcp, 1.0.0, etc.).

The MCP server replies with:

• protocolVersion: the version it accepts (often mirroring the client);
• capabilities: notably tools: { listChanged: false } to signal a stable tool list;
• serverInfo: server name ("captaindns-mcp-server") and version ("0.1.0").

No business call has left for the CaptainDNS API yet: the goal is to agree on protocol version and general capabilities first.

tools/list: announce CaptainDNS tools

Once initialize passes, the client sends tools/list. CaptainDNS MCP replies with an array of tool definitions, each containing:

• name: tool identifier, such as dns_lookup, dns_propagation, email_auth_audit;
• description: what the tool does, in natural language;
• inputSchema: a JSON schema describing the expected arguments;
• annotations: metadata (tags, recommended scopes like captaindns:dns:read).

CaptainDNS tools are intentionally read-only: they query DNS or email configuration, but never mutate data.

Examples of typed parameters:

• dns_lookup:
  • domain (required);
  • record_type (enum A, AAAA, TXT, MX, etc.);
  • resolver_preset (optional);
  • trace (boolean) to request an iterative trace.
• dns_propagation:
  • same idea, applied to a sweep across multiple resolvers.
• email_auth_audit:
  • domain (required);
  • rp_domain (optional, for reports/policies);
  • dkim_selectors (optional list of selectors to probe).

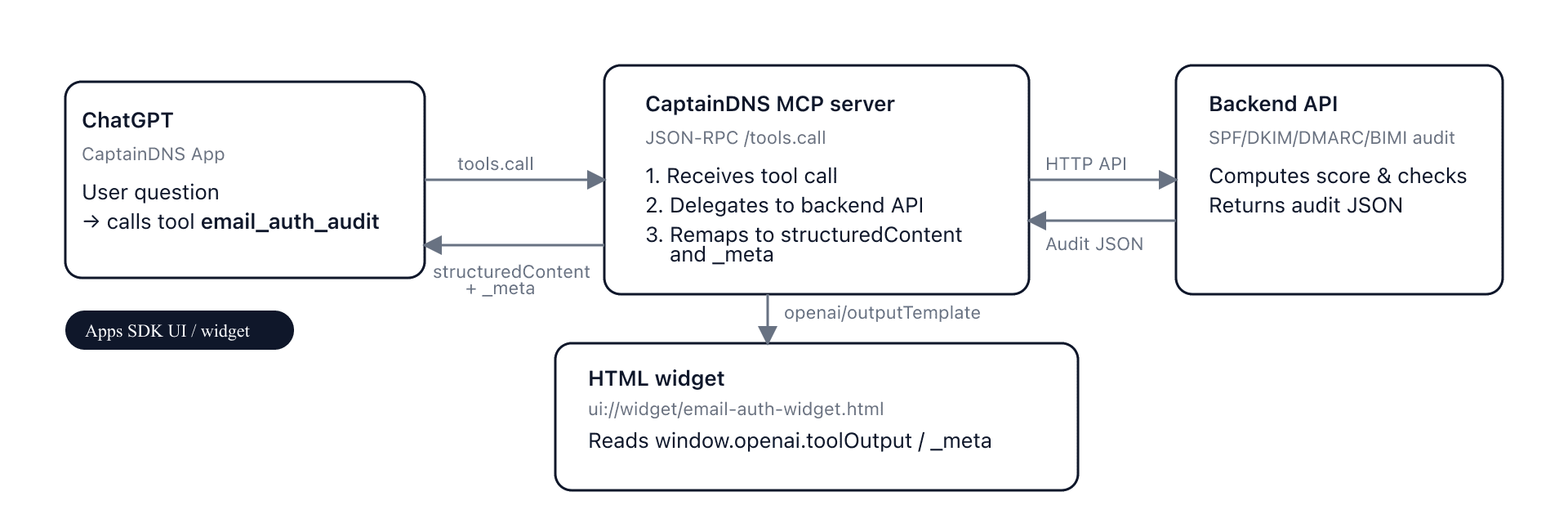

tools/call: execute a business tool

When the model decides to use a tool, it does not call dns_lookup directly: it sends tools/call with:

• params.name: the tool name ("dns_lookup", "dns_propagation", "email_auth_audit");
• params.arguments: a JSON object matching the inputSchema.

The MCP server:

1. Validates and normalizes arguments (domains, DNS types, etc.).
2. Calls the right backend endpoint (/resolve, /resolve/propagation, /mail/domain-check) via an internal client.
3. Rewraps the response in a CallToolResult with:
   • structuredContent: the structured CaptainDNS response (DNS answers, email score, SPF/DKIM/DMARC/BIMI details, etc.);
   • optionally content with a text summary for the AI;
   • isError: false if everything worked, true if the tool ran but returned a business error (e.g. DNS timeout).

Structural errors (unknown tool, invalid params, malformed JSON) remain classic JSON-RPC errors (-32601, -32602, etc.), letting the MCP client clearly distinguish protocol issues from business issues.

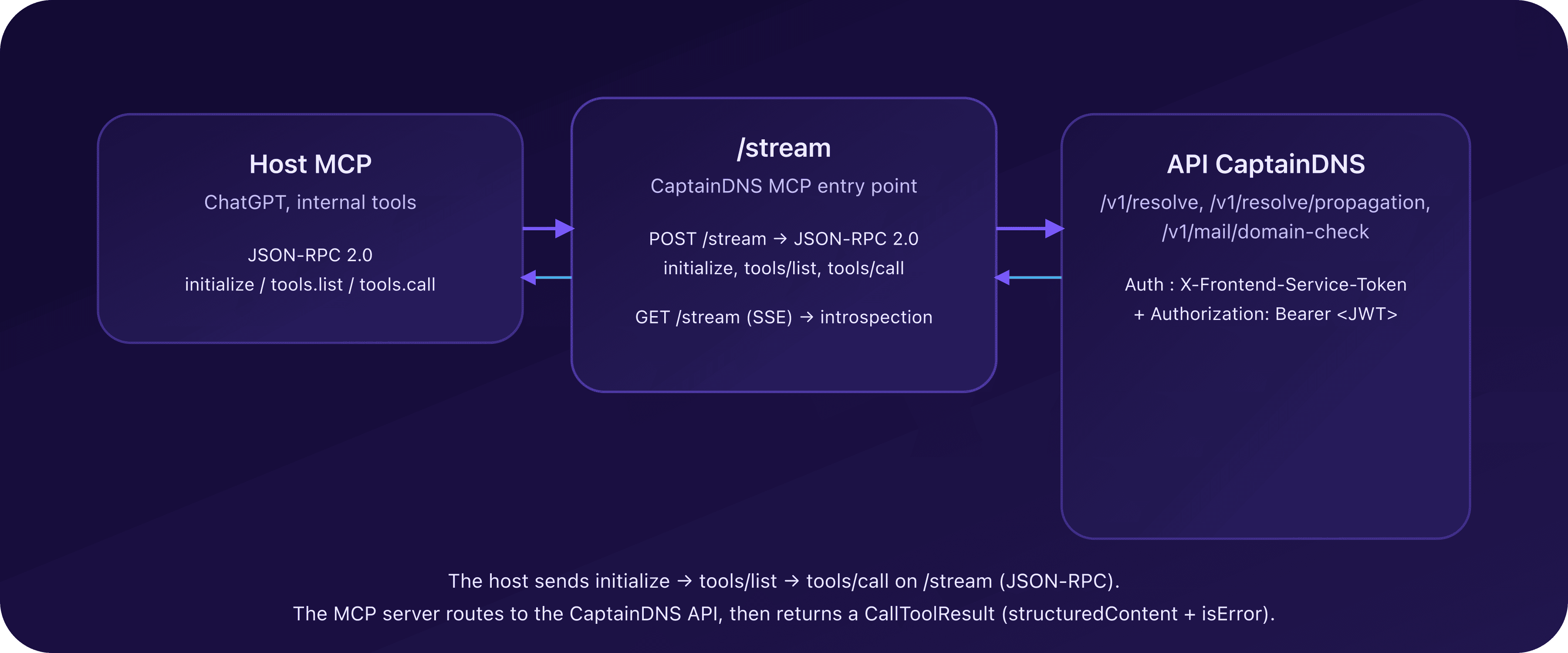

MCP transport: HTTP + JSON-RPC and SSE

For the first version, we chose the modern transport based on HTTP + JSON-RPC, with optional SSE support.

Entry point: POST /stream

The main entry point of the MCP server is an HTTP endpoint:

• POST /stream with a JSON-RPC 2.0 body.

Modern clients use it to:

• open the session;
• send initialize;
• then chain tools/list and tools/call.

The MCP server:

• reads the JSON-RPC request (jsonrpc, id, method, params);
• routes to the right handler (initialize, tools/list, tools/call);
• returns a structured JSON-RPC response:
  • result (success);
  • or error (protocol failure).

SSE: compatibility and introspection

For older clients or specific scenarios, the server also exposes:

• GET /stream with Accept: text/event-stream;

This SSE stream:

• announces basic metadata (HTTP endpoint for requests);
• can expose a simplified tool list;
• emits regular pings to keep connections under control.

In practice, ChatGPT integration relies mainly on JSON-RPC POST /stream. Early failures (timeouts, 424, etc.) stemmed from an incomplete SSE handshake; stabilizing on a single, well-defined JSON-RPC stream fixed them.

MCP server ↔ CaptainDNS API interactions

For every tools/call, the MCP server acts as an authenticated client of the CaptainDNS API.

Authentication and identity

The MCP server always sends:

• a service token so the API recognizes a trusted internal origin;
• a user token when the MCP host provides one, so the API can:
  • tie requests to a profile (for logs and history);
  • enforce quotas or permissions.

The MCP server does not store user data long term: it simply forwards identity to the API, which remains the authority on profile and logs.

Internal client and normalization

All outbound requests go through a single internal client that:

• normalizes domains (example.com, no trailing dot, lowercase);
• validates record types (A, AAAA, TXT, etc.);
• constrains tool scope (DKIM selectors, resolver presets);
• applies timeouts tuned per tool (dns_lookup shorter than email_auth_audit or dns_propagation).

The MCP server never makes raw HTTP calls outside this client: it keeps maintenance and security simpler.

Error classification

Errors fall into three families:

• input: invalid or missing parameters (malformed domain, unsupported record type, missing token, etc.);
• business: domain-level issue (DNS timeout, unreachable resolver, slow email upstream, etc.);
• internal: internal failure (bug, missing config, API 5xx).

On /stream (JSON-RPC), errors are mirrored as standard codes (-32602, -32001, -32603) with detailed envelopes in error.data. On tool results, a business failure can surface as isError: true with dedicated structuredContent.

Field notes: timeouts, 424, and other surprises

The MCP theory is elegant; practice came with bugs and surprises. Here are the main issues we hit and how we fixed them.

1. The silent timeout when adding the server

Step one: declare the MCP server in ChatGPT. Initially, the configured URL pointed to:

• a server listening only on 127.0.0.1, or
• an HTTP endpoint that did not actually implement MCP.

Result:

• no initialize log appeared on the MCP side;
• ChatGPT eventually showed a simple timeout: "unable to connect to the MCP server".

Root causes:

• servers listening only on 127.0.0.1 instead of 0.0.0.0 behind a reverse proxy;
• using localhost/private IPs in config (inaccessible from ChatGPT cloud).

Lesson: before protocol details, check the basics: public DNS, HTTPS, listening on an address the host can reach, and visible traces on the MCP side as soon as you try to connect.

2. SSE without a full handshake: the connection that stays open... then dies

Once the MCP URL was reachable, early logs showed:

• a POST /stream returned 405 (method not allowed);
• a fallback to GET /stream with Accept: text/event-stream;
• an SSE connection accepted, then closed after ~2 minutes.

On paper it "worked" (an SSE connection existed), but ChatGPT never initialized the MCP session. Why:

• the SSE stream sent pings but not the expected handshake (no endpoint event, no info about the JSON-RPC URL).

Fix: simplify transport with a clear main entry point:

• POST /stream for all JSON-RPC (initialize, tools/list, tools/call);
• GET /stream SSE as a secondary introspection channel, non-essential for ChatGPT.

Landing on a single, robust JSON-RPC entry point removed most mysterious timeouts.

3. Incomplete initialize: when the client expects more metadata

Next version: the connection established, but the MCP client crashed on initialize. Logs showed:

• an incoming initialize with protocolVersion and clientInfo;
• a response that already contained the tool list and sometimes an ill-typed capabilities.tools.

Issues found:

• missing protocolVersion in result;
• missing serverInfo;
• capabilities.tools returned as a boolean (true) instead of an object ({listChanged:false});
• non-standard fields (tool list, custom endpoints) baked into the initialize response.

Fix:

• normalize the initialize response:
  • echo protocolVersion;
  • capabilities.tools = { listChanged: false };
  • minimal serverInfo (name, version);
• move the tool list to tools/list.

Once that contract was respected, the client could chain notifications/initialized then tools/list without errors.

4. Replying to a notification: a great way to crash the client

Another surprise: notifications/initialized is a JSON-RPC notification:

• no id;
• the client expects no response.

An early server version still answered with:

• a pseudo JSON-RPC response containing id: null.

For a strict client, that looks like a response to a request that does not exist, triggering errors such as "unhandled errors in a TaskGroup".

Fix: apply the simple rule:

• if the request has no id (notification):
  • log it;
  • maybe update internal state;
  • but send nothing back on the stream.

This tiny detail eliminated a whole class of client errors.

5. tools/list and inputSchema vs input_schema

In early tests, ChatGPT reached tools/list but failed when building internal tools. The cause:

• the tools/list response used input_schema in snake_case instead of camelCase inputSchema.

Even with a correct JSON schema, a typed client strictly expects inputSchema. With input_schema, the field was seen as missing: it could not generate input forms or validate arguments.

Fix: rename the key to inputSchema across tool definitions.

6. tools/call: the unknown tool that is not

Next step: after stabilizing tools/list, tool calls tried tools/call... and kept receiving:

• a JSON-RPC method not found;
• an internal ERR_UNKNOWN_TOOL.

The server still looked for a method matching dns_lookup or dns_propagation, while MCP mandates a single tools/call method with a name parameter.

Fix:

• add a dedicated tools/call handler;
• route it to the right tools based on params.name;
• validate params with the matching inputSchema;
• return a structured CallToolResult.

From there, CaptainDNS tools finally executed through MCP.

7. content type "json" vs structuredContent: the details that break integrations

In an intermediate version, the MCP server returned results as:

• result.content[0].type = "json";
• result.content[0].json = { ... }.

That is convenient server-side, but it is not a standard block type in the protocol (which mostly defines text, image, resource, etc.). Some tolerant clients can interpret it; others cannot.

On ChatGPT, this could show up as internal errors wrapped as:

• http_error 424;
• unhandled errors in a TaskGroup (1 sub-exception).

Fix:

• move the structured payload into structuredContent;
• keep content for an optional text summary (easy to show to the user);
• use isError to signal clearly whether the business result is a success or failure.

Once that schema landed, the 424 errors caused by content mapping disappeared.

FAQ : timeouts, 424, and MCP best practices

What should I check if adding the MCP server fails?

Start with basics:

• The URL points to an HTTPS endpoint reachable publicly, not localhost or a private IP.
• POST /stream responds (no 405) and you see an initialize log server-side.
• The server listens on 0.0.0.0 behind the reverse proxy, not only 127.0.0.1.
• SSE (GET /stream) is optional - don’t block on it if JSON-RPC works.

If initialize never shows up in logs, it is a network issue (DNS, TLS, firewall), not protocol.

How do I handle an `http_error 424` or `unhandled errors in a TaskGroup`?

These usually mean the response violated the MCP contract:

• put structured payloads in structuredContent and keep content for an optional text summary;
• never reply to a notification (notifications/initialized has no id);
• return a single CallToolResult with explicit isError instead of custom type: \"json\" blocks.

If logs show a successful tools/call but the client fails, check these first.

Why route every tool through `tools/call`?

MCP mandates one business method (tools/call) with params.name:

• server-side, implement tools/call and route to dns_lookup, dns_propagation, email_auth_audit, validating against the matching inputSchema;
• client-side, ensure params.name exactly matches a name returned by tools/list.

Per-tool methods or name mismatches lead to method not found or ERR_UNKNOWN_TOOL.

How do I diagnose a timeout or unusual latency?

Timeouts often come from the network path more than protocol:

• check per-tool timeouts server-side (dns_lookup shorter than dns_propagation);
• narrow a resolver sweep for testing, then widen;
• review backend logs (slow DNS, mail upstream) and confirm the service token is present.

A timeout with no initialize logged is still a reachability problem.

Is HTTP JSON-RPC enough, or do I need SSE?

Default to a single JSON-RPC entry point (POST /stream):

• it is the most stable path for ChatGPT and modern clients;
• tool discovery and calls all flow there.

Add SSE (GET /stream) only if you need introspection; ensure the stream provides the endpoint and regular pings.

MCP and CaptainDNS glossary

MCP (Model Context Protocol)

Open protocol standardizing how an AI model talks to external tools: databases, APIs, services like CaptainDNS. It defines concepts like initialize, tools/list, tools/call, and typed response formats (CallToolResult, ContentBlock, structuredContent).

Host

Application embedding an AI model and an MCP client: ChatGPT, an IDE, an internal agent. The host decides to call a CaptainDNS tool via MCP in response to user instructions.

MCP server

Service exposing MCP tools that hosts can use. Here: captaindns-mcp-server, a Go service that knows the CaptainDNS API surface and translates it into MCP format.

JSON-RPC 2.0

Lightweight JSON-based protocol used by MCP to describe requests (method, params, id) and responses (result or error). MCP uses it in a scoped way (initialize, tools/list, tools/call, notifications).

tools/list

MCP method returning the list of tools available on an MCP server, with their inputSchema and metadata. It is how a model knows what it can do with CaptainDNS.

tools/call

MCP method a host uses to execute a specific tool. The MCP server reads params.name, validates params.arguments, calls the backend API, and returns a CallToolResult representing the structured result (or business error).

structuredContent

Optional CallToolResult field where an MCP server can place structured data (JSON) produced by a tool. CaptainDNS stores DNS answers, email scores, SPF/DKIM/DMARC/BIMI details there, for example.

TaskGroup

Concept from async runtimes (Python, etc.): a group of tasks executed in parallel. A message like "unhandled errors in a TaskGroup" signals an unhandled exception in one or more tasks, often due to a subtle format mismatch or a bug in the chain.

Related MCP and CaptainDNS guides

• Introduction to MCP for CaptainDNS - Learn what MCP is and why CaptainDNS adopts it.
• Auth0 + MCP Integration - OAuth2 authentication for the CaptainDNS MCP.
• MCP Widgets for ChatGPT - How ChatGPT widgets leverage the CaptainDNS MCP.
• Email Audit Widget in ChatGPT - Implementation of the email_auth_audit widget.
• Resilient DNS Monitoring - Building multi-layer DNS surveillance.
• History and DNS Monitoring - Diagnose, archive, share, then monitor.
