Auth0 + MCP CaptainDNS: our full postmortem

By CaptainDNS
Published on December 4, 2025

#Auth0
#MCP
#OAuth2
#DNS
#Architecture

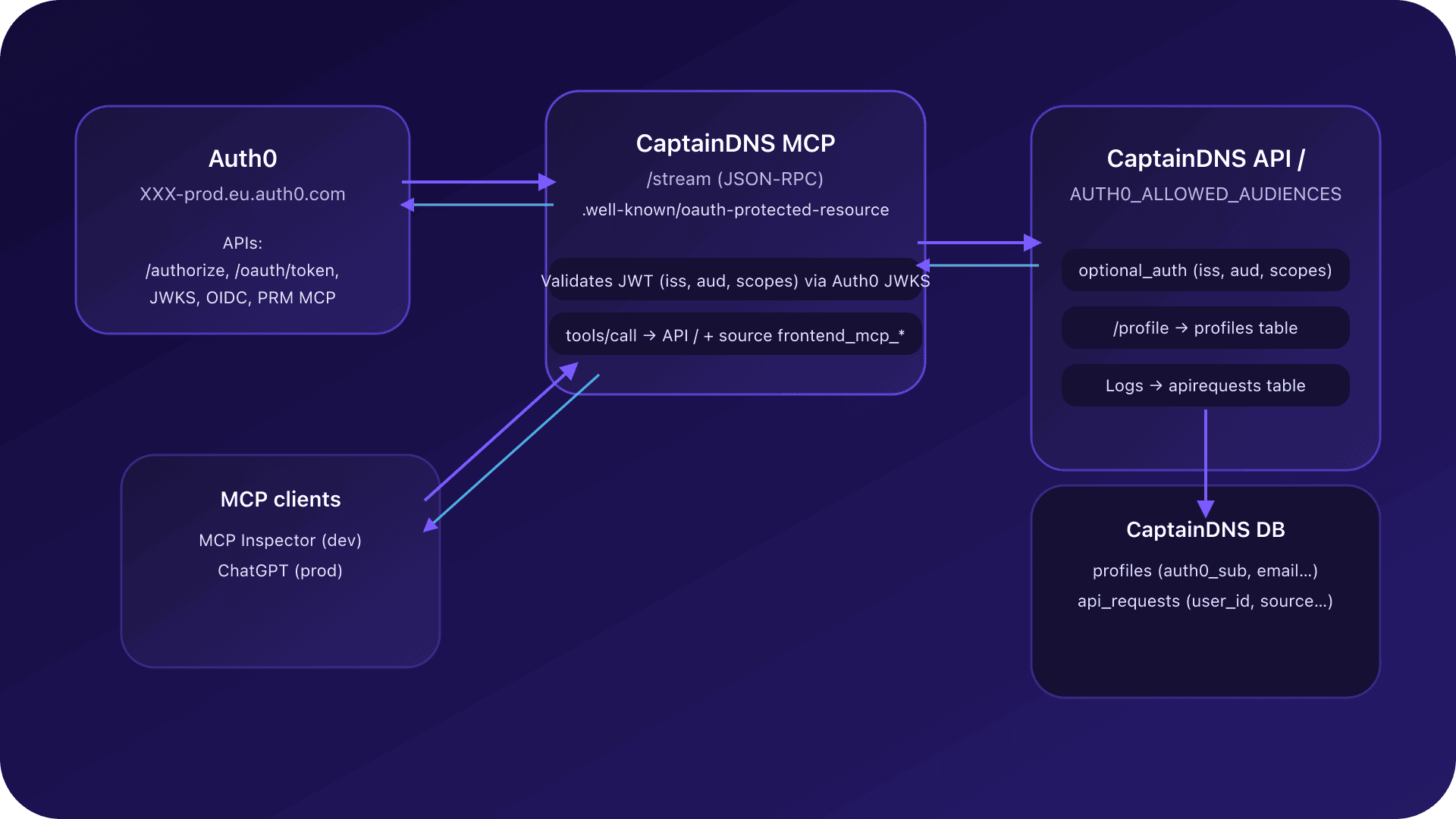

Architecture diagram showing Auth0, the CaptainDNS MCP server, the backend API and MCP clients

TL;DR

In this postmortem we explain how we wired Auth0 into CaptainDNS' MCP server without breaking what already existed:

An MCP server exposed on /stream (dev and prod) that speaks JSON-RPC with MCP clients (MCP Inspector, ChatGPT tomorrow).
A backend API already linked to Auth0 via the frontend, which needed to align with a new MCP OAuth2 flow.
A need for optional auth: tools must run without login, but the identity should be used when a Bearer is present.
A dedicated Auth0 API for the MCP, a PRM (/.well-known/oauth-protected-resource) and the Resource Parameter Compatibility Profile.
Fine-grained identity propagation (sub, email, scopes) into profiles and api_requests logs, with the ability to harden access later through protected tools.

1. Context: why plug Auth0 into the CaptainDNS MCP?

CaptainDNS already has:

a Next.js frontend wired to Auth0 (classic login, RS256 tokens for the API),
a backend API,
a data model that stores profiles and requests.

Bringing in the MCP server changes the equation:

a new entry point in dev, then prod;
MCP clients (MCP Inspector, then ChatGPT) that want to fetch an access token via OAuth2 to call this MCP server;
the need to propagate identity down to the backend to link actions to an existing profile.

Constraints:

do not break the existing frontend (historical audience, tokens already circulating);
keep optional auth on v0 tools (lookup, propagation, email audit);
set a clean foundation for future "auth required" tools (history, resolve watch list, premium features, etc.).

2. High-level view of Auth0 + MCP

In the end the chain looks like this:

Auth0 (XXX-prod.eu.auth0.com):
declares two APIs:
the historical frontend API,
the MCP API (dev and prod);
emits RS256 JWT access tokens for those audiences.
CaptainDNS MCP server:
JSON-RPC endpoint: /stream (dev and prod);
exposes a PRM (Protected Resource Metadata) at /.well-known/oauth-protected-resource;
validates Auth0 tokens via issuer and JWKS;
calls the backend API while forwarding Authorization: Bearer <access_token> and a source header (frontend_mcp_anonymous or frontend_mcp_authenticated).
Backend API:
accepts several audiences (frontend + MCP);
maps Auth0 sub → profiles;
logs every request to apirequests with user_id and source.
MCP clients:
MCP Inspector in dev,
ChatGPT (Connectors) in prod, acting as an OAuth2 MCP client.

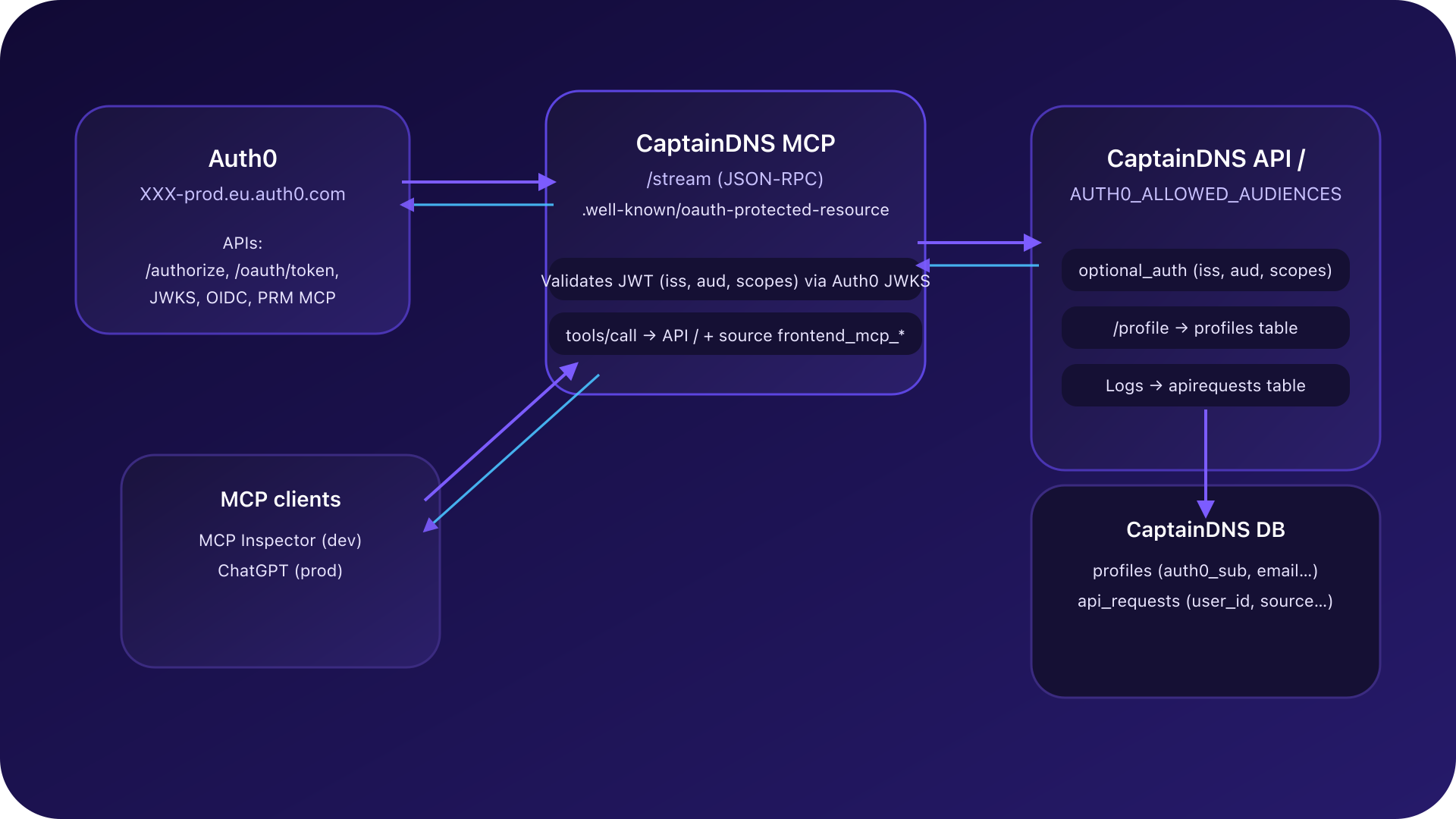

Auth0 + MCP CaptainDNS architecture diagram

The goal is that for a CaptainDNS tools/call:

anonymous mode: the request runs normally;
authenticated mode: the request is linked to a profile.

3. Auth0 API dedicated to MCP and aligning audiences

3.1. Auth0 API for MCP: audience = MCP /stream

Instead of trying to reuse the historical audience, we created a dedicated Auth0 API for the MCP:

in dev:
audience = XXX-audience-dev;
in prod:
audience = XXX-audience-prod;
algo = RS256;
access token format = JWT (signed, not encrypted).

On the MCP side:

AUTH0_AUDIENCE points to that audience (dev or prod);
the PRM (/.well-known/oauth-protected-resource) repeats those values in resource, audience and default_audience.

On the backend API:

AUTH0_ALLOWED_AUDIENCES contains all accepted audiences:
the historical frontend audience,
the MCP audience.

3.2. Resource vs audience and encrypted JWE

First issue with MCP Inspector:

the client only sent resource=<url> in the authorization URL;
Auth0 expected an explicit audience=<url>;
typical result:
either an encrypted access token (5-part JWE, alg=dir, enc=A256GCM) unusable by the MCP,
or an Auth0 error ("service not found") if the audience did not match any API.

The solution was to enable the Resource Parameter Compatibility Profile in Auth0:

Auth0 then treats resource=<url> as audience=<url> for clients that only know resource;
the token received is a standard 3-part RS256 JWT with aud = MCP resource URL (/stream).

This was key to getting an OAuth2 flow that MCP Inspector understood without changing its behavior.

4. MCP PRM (/.well-known/oauth-protected-resource)

For MCP clients to know how to do OAuth2 against the server, the MCP exposes a PRM (Protected Resource Metadata) at:

/.well-known/oauth-protected-resource

This JSON document describes notably:

the resource / audience / default_audience;
OAuth2 endpoints to use in this context:
authorization_endpoint,
token_endpoint,
optional registration_endpoint;
jwks_uri (via Auth0's OpenID configuration);
scopes_supported:
openid, profile, email, offline_access,
and application scopes (captaindns:dns:read, captaindns:email:read, etc.);
default_scope:
typically "openid profile email captaindns:dns:read".

The PRM is therefore an OAuth2 contract tailored to the MCP, complementary to Auth0's standard OpenID discovery.

5. JWT validation in the MCP server

Once the OAuth2 flow is set, the MCP server has to verify each Bearer on /stream:

read Authorization: Bearer <access_token> (if present);
fetch Auth0's OpenID configuration:
issuer = XXX;
jwks_uri (public key);
validate:
RS256 signature via JWKS,
iss = Auth0 tenant,
aud = MCP audience (dev or prod),
exp not expired.

Additionally, the MCP server can:

inspect the scope claim (string, e.g. "openid profile email captaindns:dns:read");
check that required scopes (by default profile, email) are present if you want to filter directly at the MCP layer.

If the Bearer is invalid:

in "optional auth" mode, the MCP just considers the user anonymous and does not send a challenge;
in a tool's "auth required" mode (see below), the MCP returns a JSON-RPC error with _meta["mcp/www_authenticate"] to trigger login client-side.

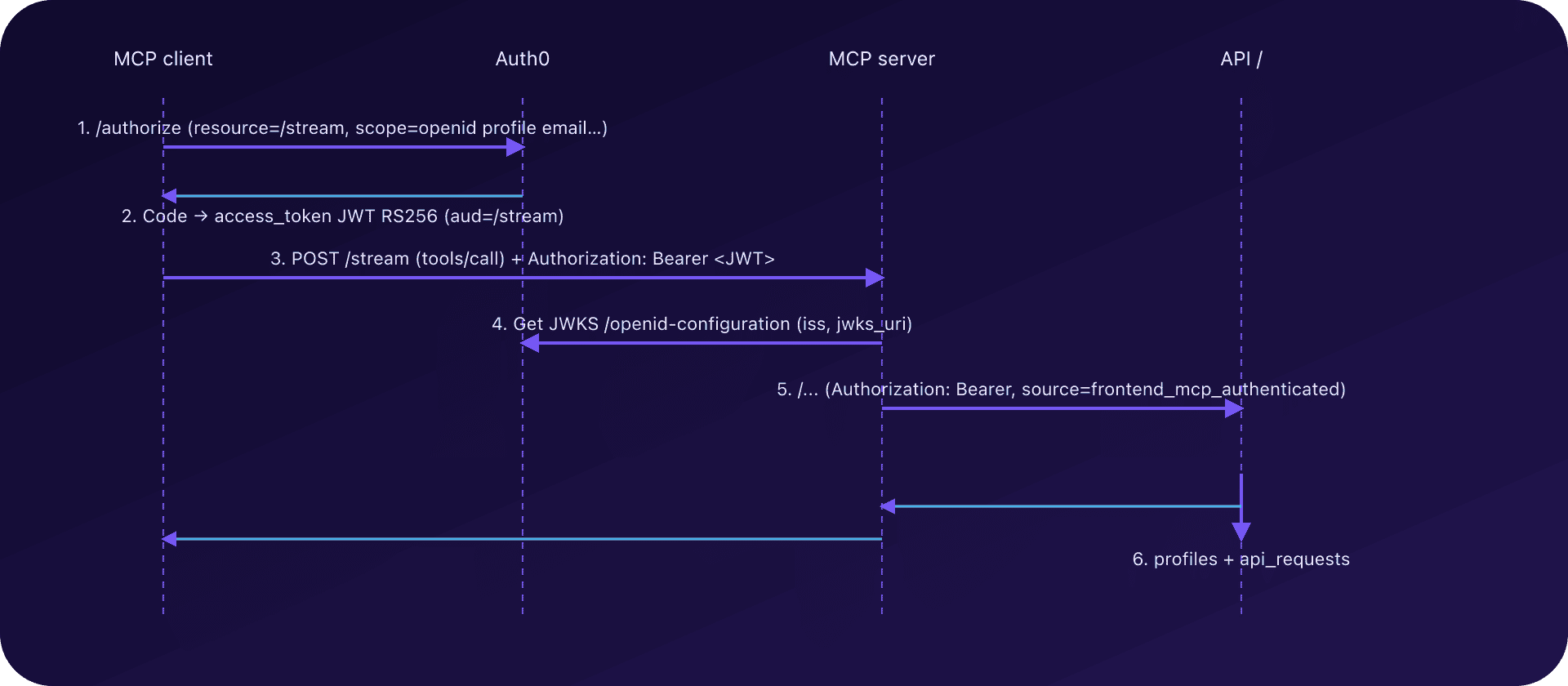

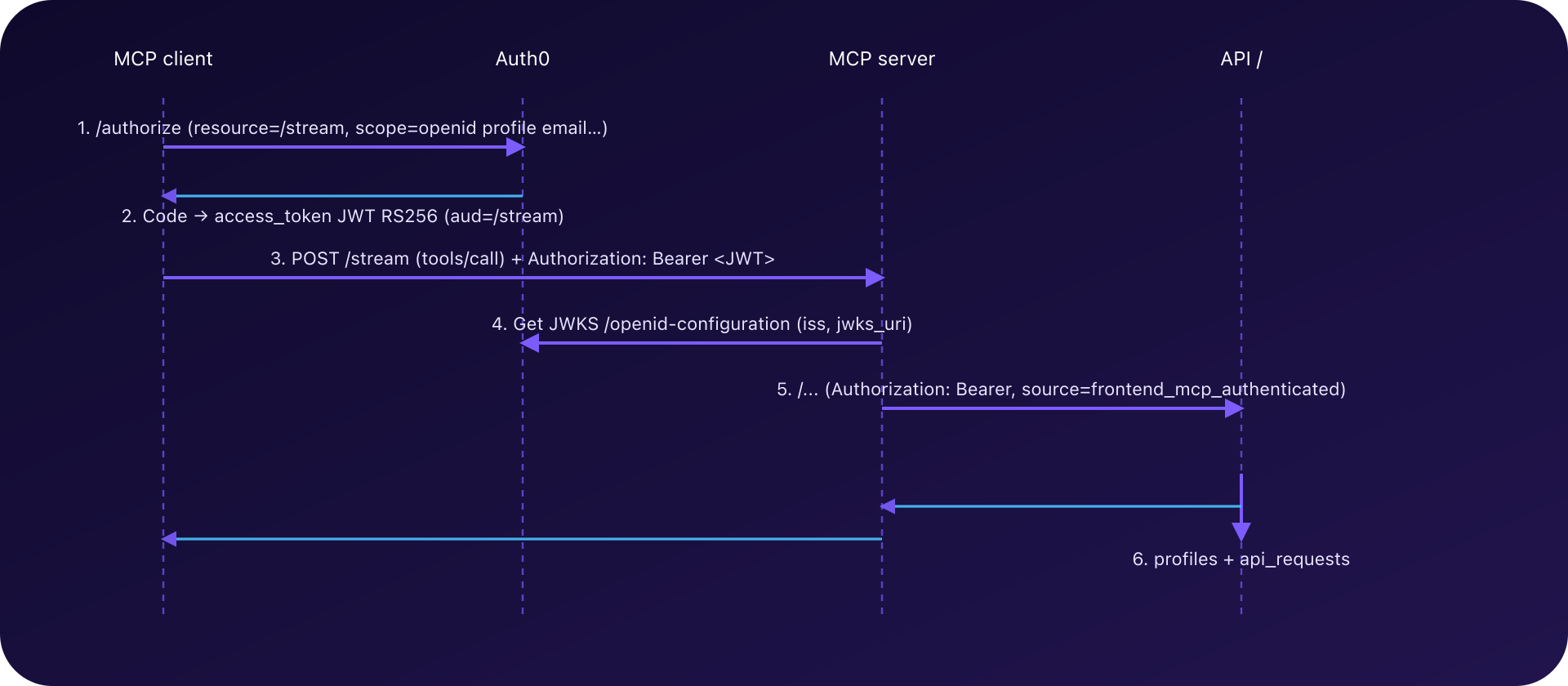

MCP authentication sequence with Auth0

6. Propagating identity to the backend API

After the JWT is validated by the MCP, the server must propagate identity to the API:

add the header Authorization: Bearer <user access_token>;
add a source header (or equivalent), typed:
frontend_mcp_anonymous if no Bearer or invalid Bearer;
frontend_mcp_authenticated if Bearer is valid.

MCP logs also add a mcp_outbound_api event with:

path=/...;
has_bearer=true/false;
source=frontend_mcp_*.

On the API, the optional_auth middleware:

re-validates the token (issuer, audience ∈ AUTH0_ALLOWED_AUDIENCES, required scopes);
if the token is valid:
links the request to a profile (see next section);
otherwise:
treats the request as anonymous, while logging the origin (source).

This "double validation" (MCP + API) keeps the API independent of how it is called (frontend vs MCP).

7. Integration with profiles and api_requests

7.1. Create / update profiles

The backend exposes POST /profile which:

reads sub (Auth0 subject) and email from the claims;
creates or updates a row in profiles:
primary key: auth0_sub;
up-to-date email;
created_at, last_seen_at timestamps.

Precondition on the API:

email must be non-empty, otherwise 422 (cannot create an incomplete profile).

Problem found: the access token issued for MCP did not contain email by default.

7.2. Namespaced email claim via Auth0 Action

To guarantee an exploitable email, we added an Auth0 Post-Login Action:

exports.onExecutePostLogin = async (event, api) => {
  const ns = "NAMESPACE";
  if (event.user && event.user.email) {
    api.accessToken.setCustomClaim(`${ns}/email`, event.user.email);
  }
};

Explanation:

Auth0 requires access token custom claims to be namespaced (URL or URN);
the NAMESPACE.email claim is therefore added to each access token if the user has an email.

On the backend side:

/profile first reads email (if present as standard);
otherwise, fallback to NAMESPACE/email.

Combining both sources keeps the code robust, compatible with multiple token types (frontend vs MCP).

7.3. api_requests: attach requests to the right user_id

For every API request, the logging middleware:

creates a row in api_requests;
if there is a sub and a profiles.GetByAuth0ID(sub) profile exists:
fills user_id in apirequests;
uses source (frontend / MCP / backend job) to qualify the origin.

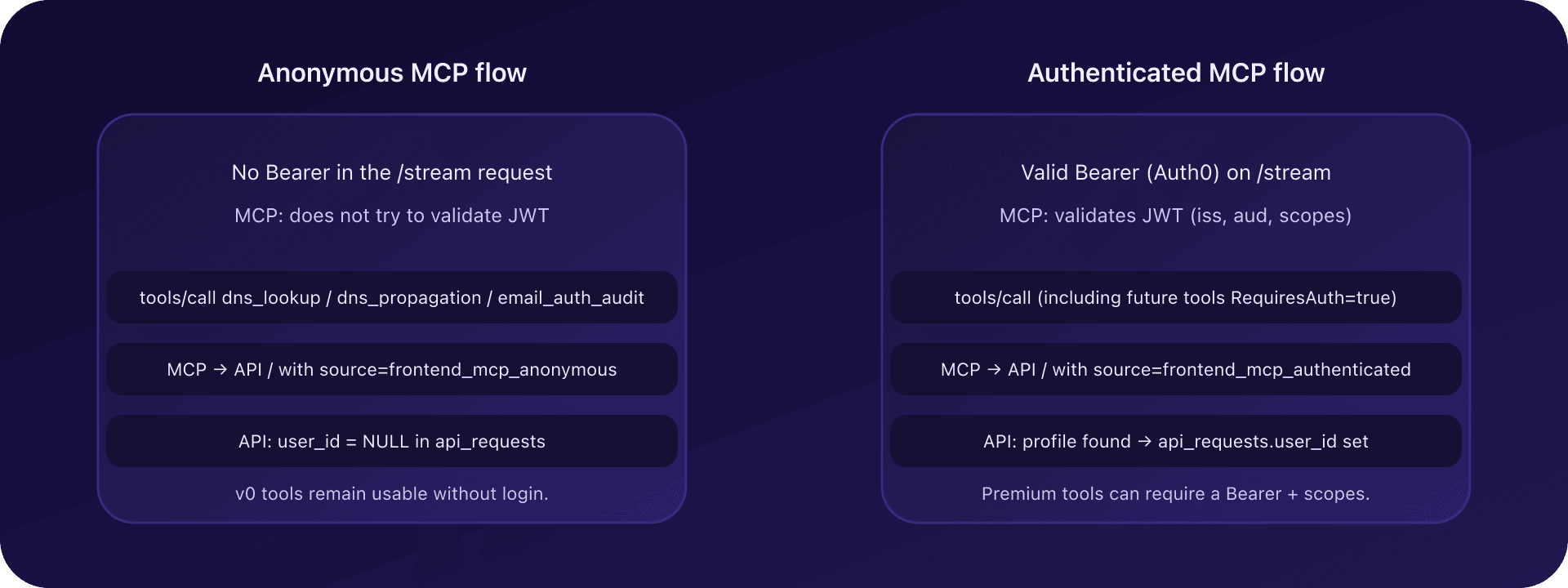

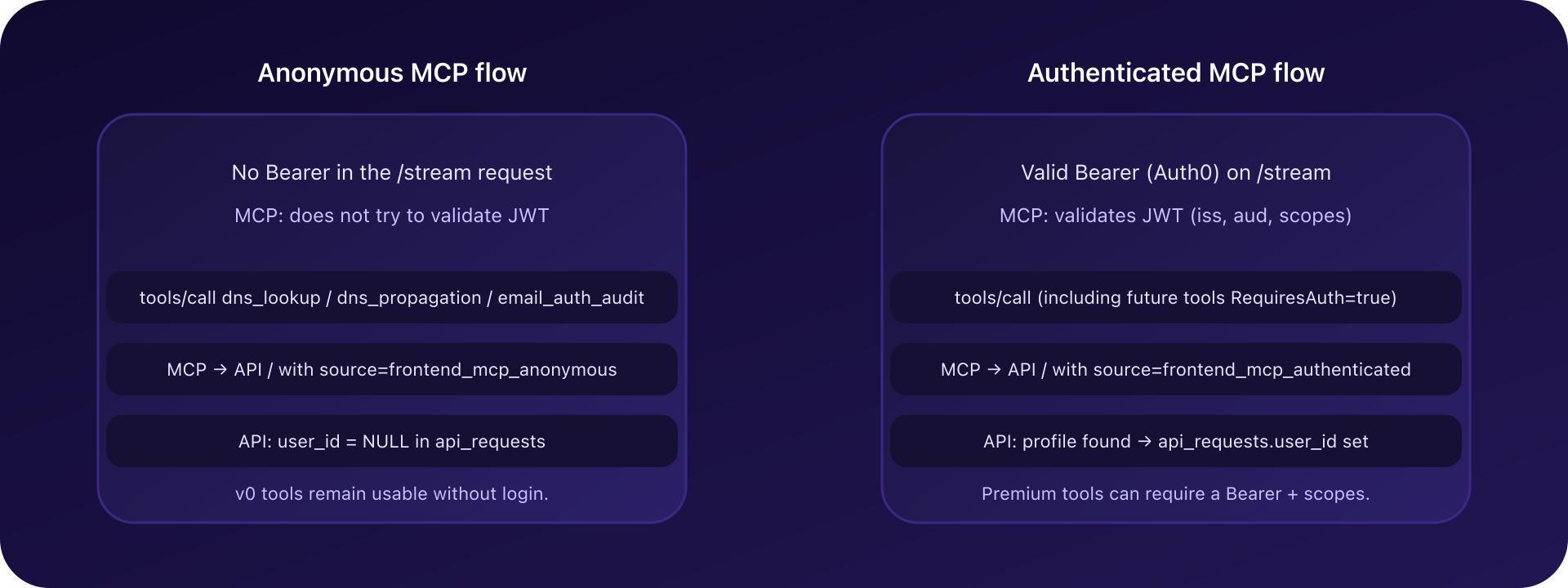

Anonymous vs authenticated flow for CaptainDNS MCP

Result:

anonymous requests (MCP without Bearer) have user_id = NULL, source=frontend_mcp_anonymous;
authenticated requests are linked to a profile, with user_id set.

8. Scopes and AUTH0_REQUIRED_SCOPES

8.1. Backend side: AUTH0_REQUIRED_SCOPES

The API uses a configuration parameter:

AUTH0_REQUIRED_SCOPES (for example ["profile", "email"]),

to check that the token's scope claim contains all required scopes.

The optional_auth middleware:

if a Bearer is present:
validates signature and audience;
checks that scope contains all required scopes;
otherwise, marks auth as invalid (missing required scope), but lets the request continue as anonymous (no user_id).
if no Bearer:
directly treats the request as anonymous.

Therefore we had to ensure MCP tokens include profile and email:

via scopes_supported and default_scope in the MCP PRM;
via scope parameters sent by MCP clients during the OAuth2 flow.

8.2. Avoiding "magic" fixes in Auth0

It is technically possible to add scopes via an Auth0 Action, but in this REX we favored:

clean configuration through:
the MCP PRM (default_scope);
the /authorize request (scope=),
explicit scope checks on API and MCP sides, without "hardcoding" inside the tenant.

9. Optional auth and protected tools (RequiresAuth)

9.1. Initial issue: everything became "auth required"

In a first version, as soon as the MCP server detected a missing or invalid Bearer, it returned a challenge:

_meta["mcp/www_authenticate"] with a realm and scope to obtain.

Consequence:

some MCP clients interpreted this response as a global failure,
while the goal was to keep v0 tools usable anonymously.

9.2. RequiresAuth flag and dual mode

The solution was to introduce a RequiresAuth flag on MCP tools:

for all existing tools (dns_lookup, dns_propagation, email_auth_audit):
RequiresAuth = false;
behavior:
without Bearer: anonymous execution, no challenge;
with valid Bearer: execution + profile binding.
for future "premium" tools (request_history, resolve_watch_list, etc.):
RequiresAuth = true;
behavior:
no Bearer or invalid Bearer:
MCP returns a JSON-RPC error with:
isError: true,
_meta["mcp/www_authenticate"] filled to trigger login;
with valid Bearer:
normal execution with profile binding.

This mechanism lets us progressively add protected tools without breaking the public tools experience.

9.3. Security metadata in tools/list

To be explicit for MCP clients, tools now expose a security section:

type oauth2;
required scopes (for protected tools).

Tests were added to check:

that tools/list surfaces security information,
that protected tools return _meta["mcp/www_authenticate"] when Bearer is missing.

10. Handling multiple audiences (frontend + MCP) in prod

10.1. Observations

In production, two kinds of tokens coexist:

frontend tokens:
aud = [XXX, YYY];
MCP tokens:
aud = "XXX".

In an intermediate phase, the API only accepted the MCP audience (AUTH0_ALLOWED_AUDIENCES="XXX"), which broke the frontend (audience mismatch).

10.2. Solution: multi-value AUTH0_ALLOWED_AUDIENCES

The solution was to allow multiple audiences on the API side:

AUTH0_ALLOWED_AUDIENCES="XXX, YYY"

The middleware:

splits the string on ,;
trims spaces;
accepts tokens whose aud (string or array) contains at least one allowed audience.

Result:

the API accepts both:
frontend tokens (historical audience),
MCP tokens (MCP audience);
the transition to a multi-client world (frontend + MCP + others) is handled cleanly.

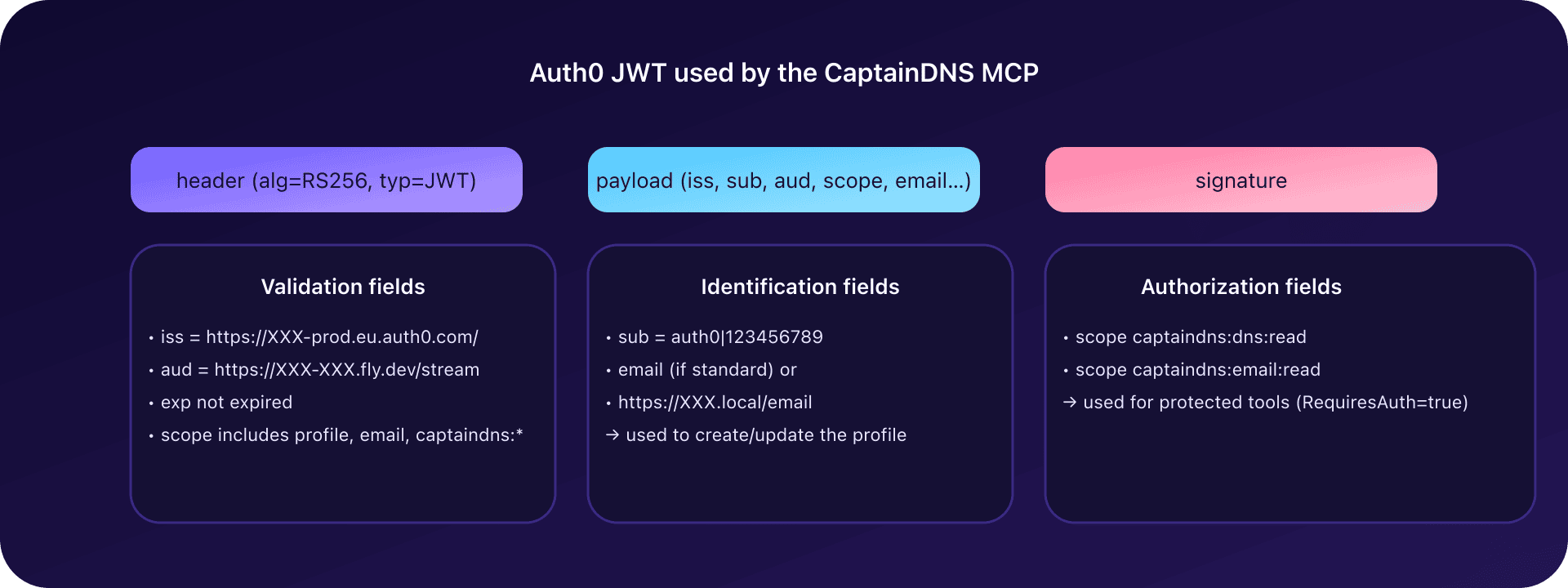

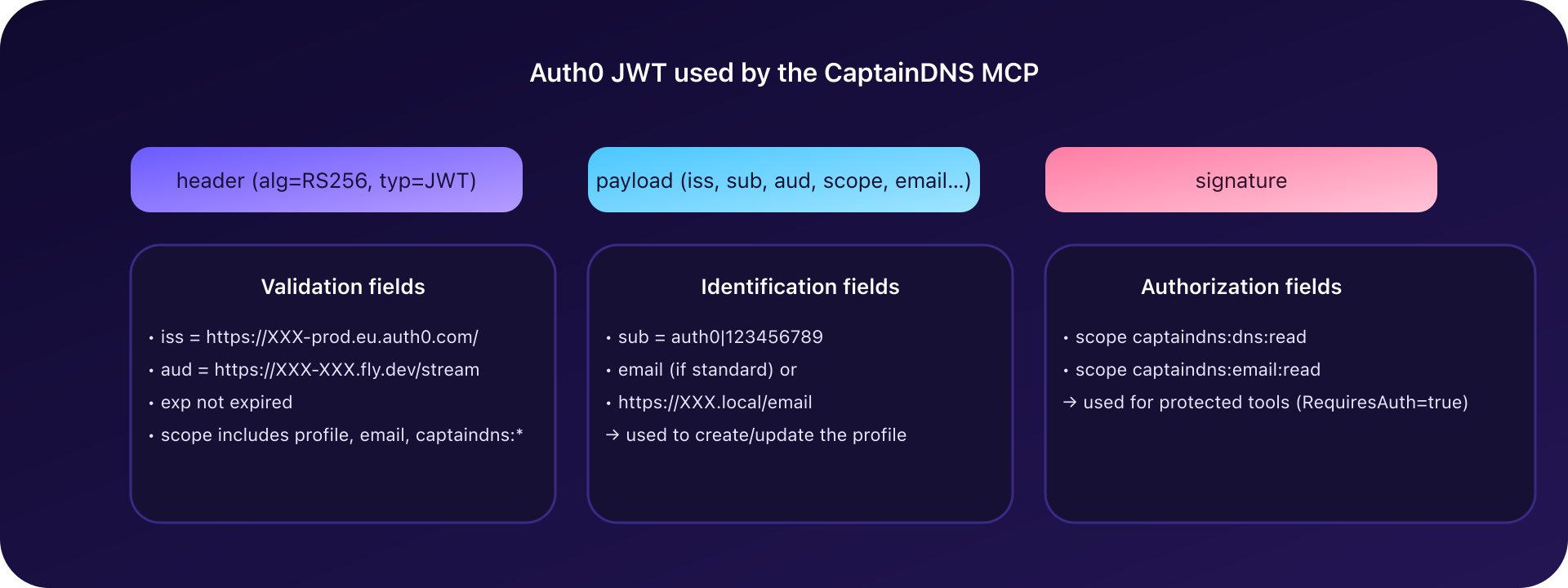

Structure of an Auth0 JWT for CaptainDNS MCP

FAQ: Frequent questions about Auth0 + MCP CaptainDNS

Why create a dedicated Auth0 API for the MCP instead of reusing the historical API audience?

The historical audience was already used by the frontend and existing tokens. Giving the same audience to the MCP would have made configuration more ambiguous and harder to audit.

By creating a dedicated Auth0 API for the MCP (in dev and prod), we get a clear separation of usage, better traceability and the ability to evolve the MCP contract independently from the frontend.

Why was the initial token encrypted (5-part JWE) instead of a readable JWT?

Without the Resource Parameter Compatibility Profile, Auth0 misinterprets some flows where only resource is sent, especially when no coherent audience is found.

In our case, the MCP client sent resource=... without explicit audience=.... Auth0 then sometimes responded with an encrypted JWE (5 parts) or with an error message.

Enabling the Resource Parameter Compatibility Profile makes Auth0 treat resource as audience, which yields a standard 3-part RS256 JWT the MCP server can validate.

What exactly is the PRM (/.well-known/oauth-protected-resource) for the MCP?

The PRM is a metadata document that describes how a client should do OAuth2 to access a protected resource:

what the resource / audience is;
which authorization and token endpoints to use;
which scopes are supported and recommended.

For CaptainDNS, the PRM lets clients like MCP Inspector or ChatGPT automatically discover how to get an Auth0 token for the MCP, know which scopes to request and integrate without complex manual configuration.

How do you manage scopes without breaking existing clients?

The chosen strategy:

define a minimal set of required scopes (profile, email) on the API;
do not reject the whole request if those scopes are missing, but fall back to anonymous mode;
reserve strict failure (missing scope) for MCP tools with RequiresAuth = true.

This way, v0 tools stay usable without changing Auth0 configuration for existing clients, while allowing gradual hardening for premium tools later.

How do you switch an MCP tool from 'optional auth' to 'auth required'?

The switch happens in two steps:

mark the MCP tool with RequiresAuth = true;
on the MCP server side:
if no Bearer or invalid Bearer → return isError=true with _meta["mcp/www_authenticate"] to trigger login;
if Bearer valid and scopes sufficient → execute normally.

This lets you evolve a tool to "auth required" without changing the backend API, concentrating security logic on the MCP side.

Glossary Auth0 + MCP CaptainDNS

MCP (Model Context Protocol)

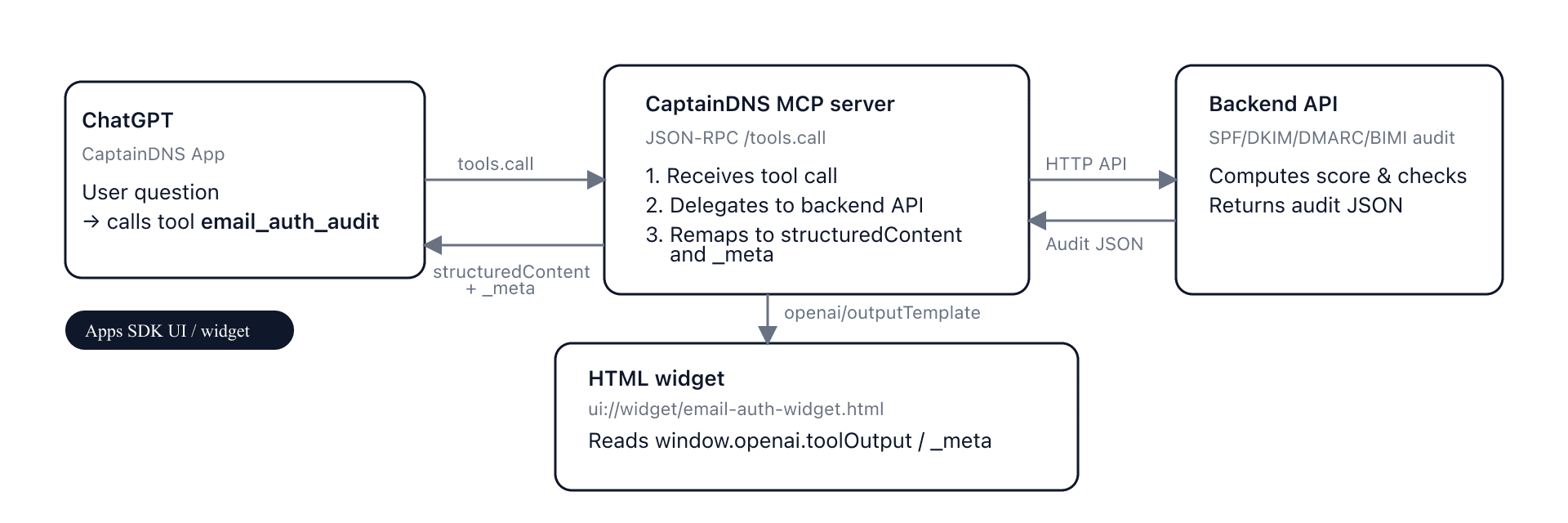

Protocol that standardizes how an AI model talks to external tools (APIs, services). In CaptainDNS it lets clients like MCP Inspector or ChatGPT call DNS/email tools through a dedicated MCP server.

PRM (Protected Resource Metadata)

JSON document published by a protected resource (here, the CaptainDNS MCP server) at /.well-known/oauth-protected-resource. It describes the resource, audience, scopes, and the authorization and token endpoints.

Issuer (iss)

JWT claim indicating who issued it. The MCP server and backend API check that iss matches the expected Auth0 tenant.

Audience (aud)

Claim indicating which resource(s) the token targets. In our case: the frontend API or the MCP API. The backend must accept multiple audiences to handle different clients.

Subject (sub)

Unique identifier of the user in the Auth0 tenant. It is the key used to find or create the profile in the profiles table.

Scope

List of permissions tied to a token (e.g. openid profile email captaindns:dns:read). Scopes are used to control access to some features, especially protected MCP tools.

JWS vs JWE

JWS: signed JWT (3 parts), readable and verifiable server-side.
JWE: encrypted JWT (5 parts) requiring a decryption key. For the CaptainDNS MCP we chose RS256 JWS, simpler to validate via JWKS.
