TLS-RPT: The Complete Guide to Monitoring Email TLS Security

Q: How do I configure a TLS-RPT record?

Publish a DNS TXT record at _smtp._tls.captaindns.com with the value v=TLSRPTv1; rua=mailto:tlsrpt@captaindns.com . Use a TLS-RPT generator to create the record, then add it to your DNS zone. The first reports arrive within 24 to 48 hours.

By CaptainDNS
Published on February 10, 2026

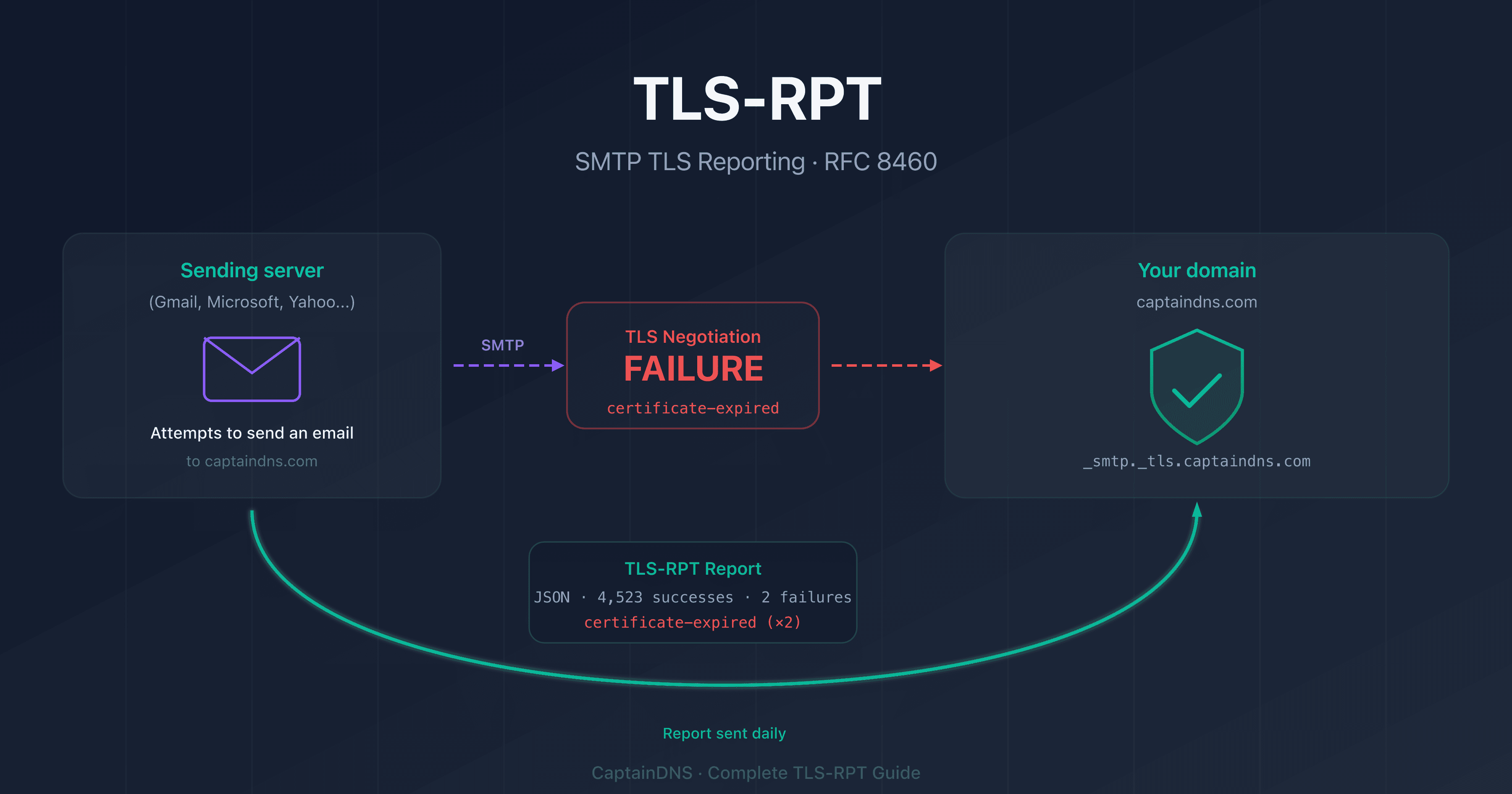

TLS-RPT: monitoring TLS encryption failures in email delivery

TL;DR

TLS-RPT (RFC 8460) sends you a daily report on every TLS encryption failure detected by servers that send you emails
Without TLS-RPT, you have no way of knowing if your emails are arriving in plaintext due to an expired certificate, a misconfigured MX, or a downgrade attack
A single DNS TXT record to publish: _smtp._tls.captaindns.com with the directive v=TLSRPTv1; rua=mailto:...
TLS-RPT is the essential companion to MTA-STS: it gives you the visibility you need before switching to enforce mode

Does your domain use MTA-STS or are you planning to enable it? Have you configured STARTTLS on your mail servers? In either case, one question remains unanswered: how do you know if TLS encryption is actually working during email delivery?

That's exactly the problem TLS-RPT solves. Defined in RFC 8460, SMTP TLS Reporting is a mechanism that allows sending servers (Gmail, Microsoft, Yahoo, and all providers that support it) to send you detailed reports on TLS negotiation failures they encounter when trying to deliver emails to your domain.

This guide explains what TLS-RPT is, how it works, how to configure it in minutes, and how to interpret the reports you'll receive. Whether you're a system administrator, DevOps engineer, or email infrastructure manager, you'll find everything you need to deploy TLS-RPT on your domain.

What is TLS-RPT?

TLS-RPT, which stands for SMTP TLS Reporting, is an internet standard (RFC 8460) published in September 2018. Its purpose is simple: to allow a domain owner to receive reports on failed TLS connection attempts when servers try to deliver emails to them.

In practice, when Gmail tries to send an email to contact@captaindns.com, it checks whether the receiving server supports TLS and whether the TLS negotiation succeeds. If something fails (expired certificate, STARTTLS not supported, MTA-STS policy not met), Gmail records that failure. Once a day, it aggregates all failures and sends a JSON report to the address specified in your TLS-RPT record.

Why is TLS-RPT essential?

Without TLS-RPT, you're blind to the quality of encryption on your incoming emails:

A TLS certificate expires on your MX server → emails keep arriving (in plaintext if MTA-STS isn't in enforce mode), but you don't know it
A secondary MX doesn't support STARTTLS → emails to that MX travel without encryption
A man-in-the-middle attack forces a downgrade → impossible to detect without reports

TLS-RPT fills this gap. Every day you receive a precise summary: how many TLS connections succeeded, how many failed, and why they failed.

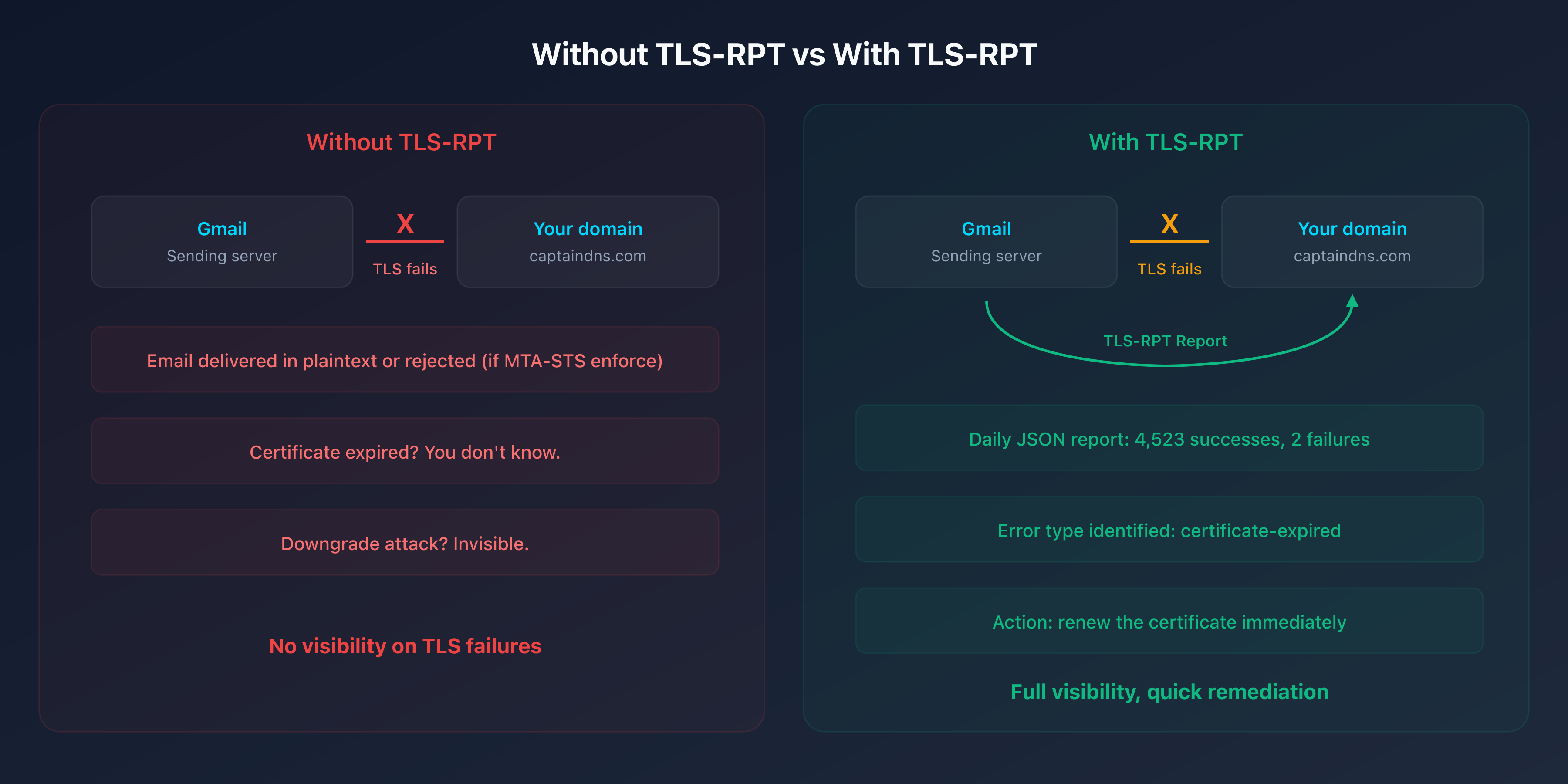

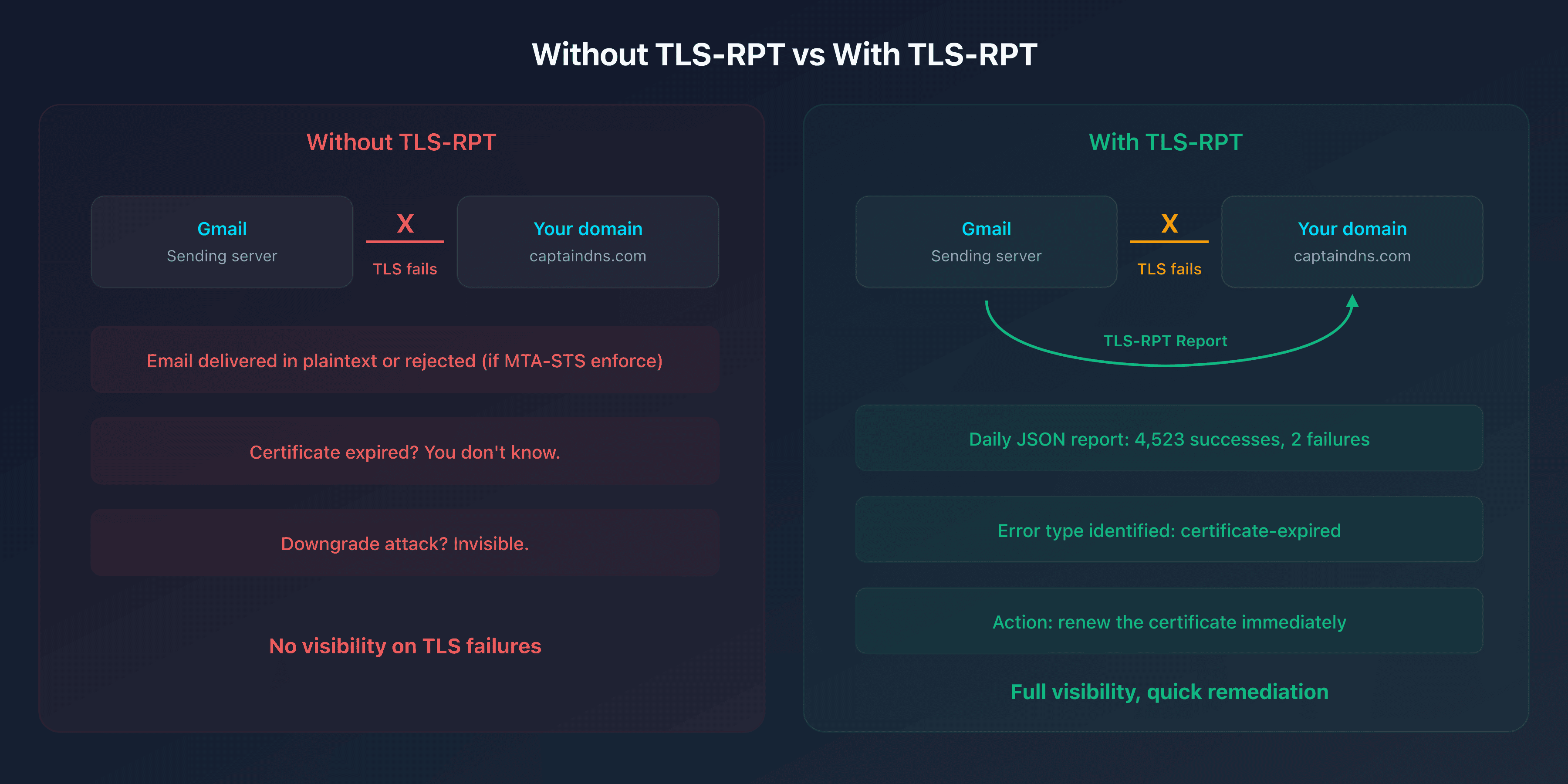

Comparison diagram: without TLS-RPT vs with TLS-RPT, visibility into TLS failures

What's the difference between TLS-RPT and DMARC reporting?

DMARC reports (RUA/RUF) and TLS-RPT reports cover different areas:

Criteria	DMARC Reporting	TLS-RPT
What it monitors	Email authentication (SPF, DKIM, alignment)	Transport encryption (TLS)
RFC	RFC 7489	RFC 8460
DNS record	`_dmarc.domain`	`_smtp._tls.domain`
Report format	XML (aggregate) or text (forensic)	JSON
Frequency	Configurable (typically 24h)	Always 24h
Protocol	Sender authentication	Transport channel security

The two are complementary: DMARC verifies who sends the email, TLS-RPT verifies how the email is transported. A secure domain needs both.

How does TLS-RPT work?

The TLS-RPT mechanism integrates into the normal email delivery flow:

1. Publishing the DNS record

You publish a TXT record at _smtp._tls.captaindns.com containing the address where reports should be sent.

2. Detection by the sending server

When Gmail (or any other compatible server) wants to send an email to your domain, it performs a DNS lookup on _smtp._tls.captaindns.com to check if you've configured TLS-RPT.

3. Collecting TLS results

With each delivery attempt, the sending server records the outcome of the TLS negotiation: success or failure, along with the error type if applicable.

4. Aggregation and report delivery

Every 24 hours, the sending server aggregates the results and sends a JSON report to the rua address specified in your TLS-RPT record.

Who sends the reports?

The main providers that send TLS-RPT reports:

Provider	Sending address	Supported
Google / Gmail	`noreply-smtp-tls-reporting@google.com`	Yes
Microsoft / Outlook	`tlsrpt@microsoft.com`	Yes
Yahoo / AOL	Varies	Yes
LinkedIn	Varies	Yes
Comcast	Varies	Yes

If you receive an email from noreply-smtp-tls-reporting@google.com, don't worry: it's a legitimate TLS-RPT report sent by Google. It contains a compressed JSON file (gzip) detailing the TLS results from the last 24 hours.

TLS-RPT record syntax

The TLS-RPT record is a DNS TXT record published at _smtp._tls.<domain>.

Basic format

_smtp._tls.captaindns.com. 300 IN TXT "v=TLSRPTv1; rua=mailto:tlsrpt@captaindns.com"

Tag	Required	Description
`v`	Yes	Protocol version, always `TLSRPTv1`
`rua`	Yes	Report destination URI(s) (`mailto:` or `https:`)

Valid configuration examples

Reporting via email (most common):

_smtp._tls.captaindns.com. TXT "v=TLSRPTv1; rua=mailto:tlsrpt@captaindns.com"

Reporting via HTTPS endpoint:

_smtp._tls.captaindns.com. TXT "v=TLSRPTv1; rua=https://report.captaindns.com/tlsrpt"

Multiple reporting (email + HTTPS):

_smtp._tls.captaindns.com. TXT "v=TLSRPTv1; rua=mailto:tlsrpt@captaindns.com,https://report.captaindns.com/tlsrpt"

Reporting to an external domain

When you send reports to a domain different from your own (for example, a third-party monitoring service), the destination domain must publish an authorization record:

captaindns.com._report._tls.monitoring-service.com. TXT "v=TLSRPTv1"

This mechanism prevents an attacker from redirecting reports to an unauthorized domain. Always verify that the external domain has published this authorization record.

Configuration tips

Dedicated mailbox: use a dedicated email address (e.g., tlsrpt@captaindns.com) so reports don't get lost in your main inbox
Reasonable TTL: a TTL of 300 to 3600 seconds is suitable for this record
HTTPS for high volume: if you receive a lot of emails, an HTTPS endpoint is better suited than a mailbox for processing reports

Understanding the TLS-RPT JSON report

TLS-RPT reports are sent in JSON format, compressed with gzip. Here's the structure of a typical report:

{
  "organization-name": "Google Inc.",
  "date-range": {
    "start-datetime": "2026-02-08T00:00:00Z",
    "end-datetime": "2026-02-09T00:00:00Z"
  },
  "contact-info": "smtp-tls-reporting@google.com",
  "report-id": "2026-02-08T00:00:00Z_captaindns.com",
  "policies": [
    {
      "policy": {
        "policy-type": "sts",
        "policy-string": [
          "version: STSv1",
          "mode: enforce",
          "mx: mail.captaindns.com",
          "max_age: 604800"
        ],
        "policy-domain": "captaindns.com"
      },
      "summary": {
        "total-successful-session-count": 4523,
        "total-failure-session-count": 2
      },
      "failure-details": [
        {
          "result-type": "certificate-expired",
          "sending-mta-ip": "192.0.2.1",
          "receiving-mx-hostname": "mail.captaindns.com",
          "failed-session-count": 2
        }
      ]
    }
  ]
}

Report breakdown

Field	Meaning
`organization-name`	Who sends the report (Google, Microsoft, etc.)
`date-range`	Period covered (always 24h)
`policy-type`	Type of policy applied: `sts` (MTA-STS), `tlsa` (DANE), or `no-policy-found`
`total-successful-session-count`	Number of successful TLS connections
`total-failure-session-count`	Number of failed TLS connections
`failure-details`	Details of each failure type

TLS failure types

Each failure is categorized by a result-type. Here are the main ones:

Code	Description	Severity	Action
`starttls-not-supported`	The MX server does not support STARTTLS	Critical	Enable STARTTLS on the server
`certificate-expired`	The server's TLS certificate has expired	Critical	Renew the certificate immediately
`certificate-host-mismatch`	The certificate does not match the MX hostname	Critical	Fix the certificate or hostname
`certificate-not-trusted`	Certificate not signed by a trusted CA	High	Use a certificate from a recognized CA
`validation-failure`	Generic TLS validation failure	High	Check the complete TLS configuration
`sts-policy-fetch-error`	Unable to retrieve the MTA-STS policy	Medium	Check the `mta-sts.txt` file
`sts-policy-invalid`	The MTA-STS policy is invalid	Medium	Fix the policy syntax
`sts-webpki-invalid`	The HTTPS certificate for the policy server is invalid	Medium	Renew the certificate for the `mta-sts` subdomain
`tlsa-invalid`	Invalid TLSA record (DANE)	Medium	Fix the TLSA records
`dnssec-invalid`	DNSSEC validation failed	High	Check the DNSSEC configuration

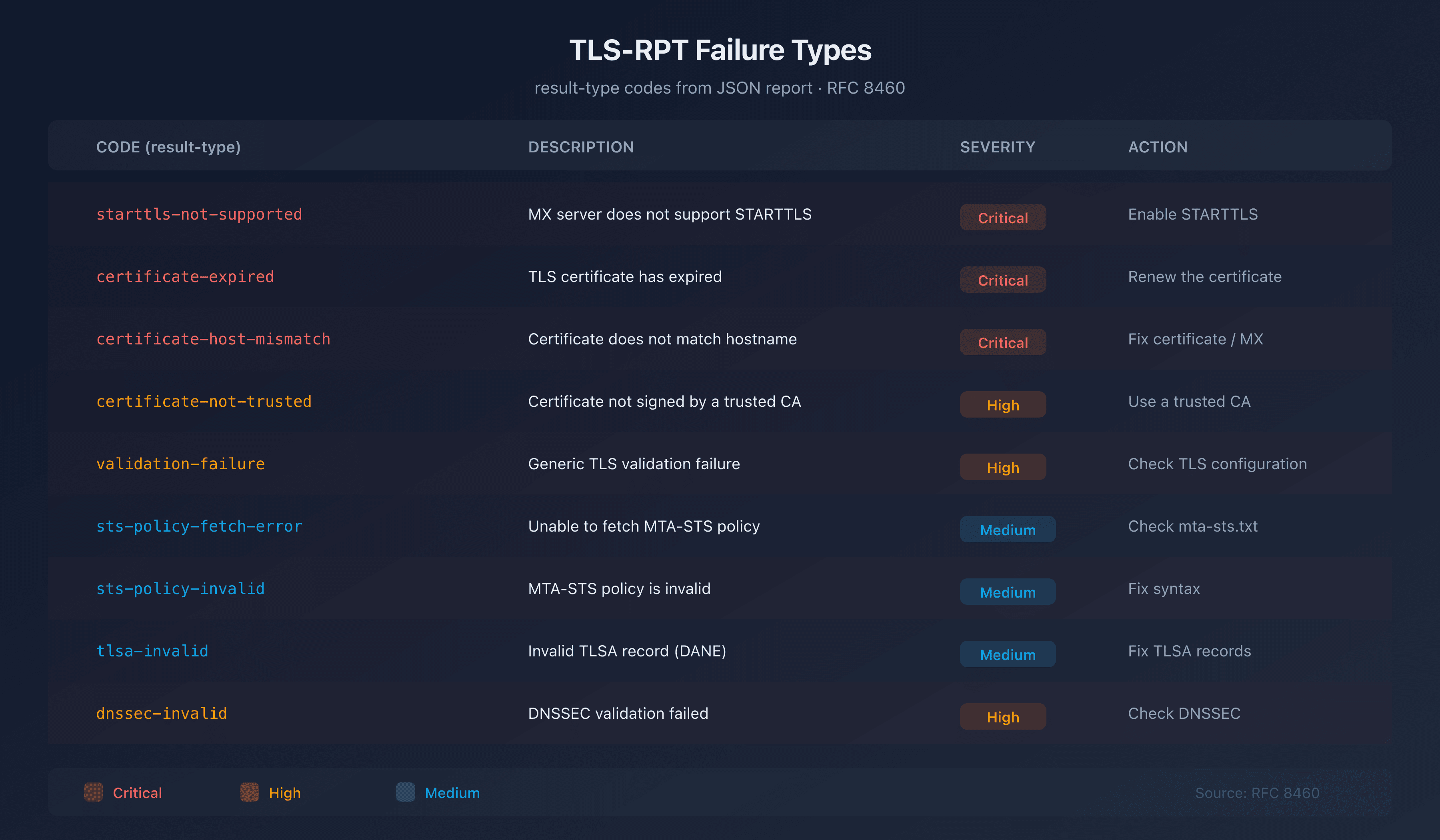

Summary table of TLS-RPT failure types with their severity and recommended action

TLS-RPT and MTA-STS: the essential duo

TLS-RPT becomes most valuable when combined with MTA-STS. Here's why:

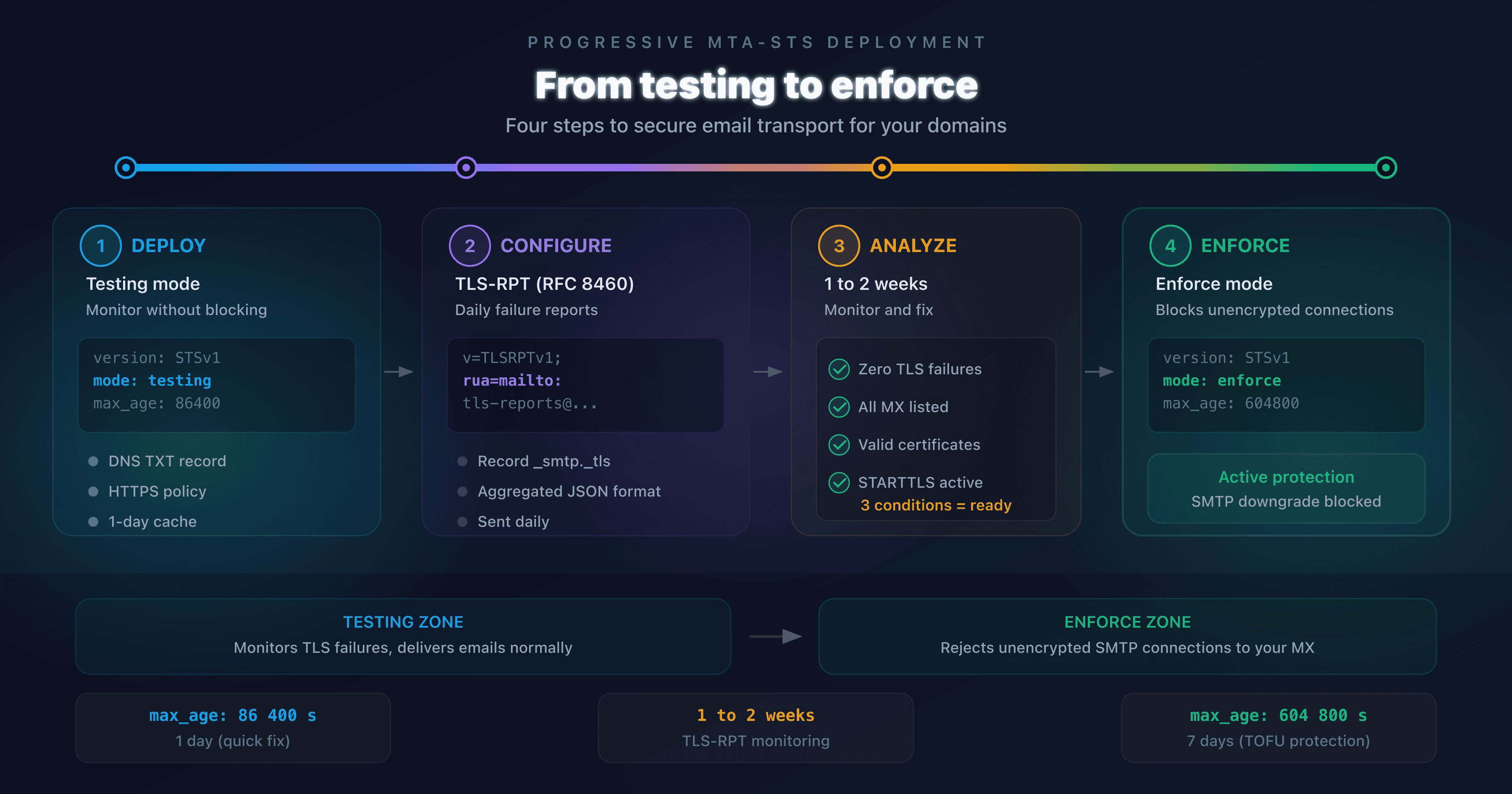

The recommended workflow

Configure TLS-RPT: publish your _smtp._tls record to start receiving reports
Enable MTA-STS in testing mode: publish your MTA-STS policy with mode: testing
Analyze the reports: over 1 to 2 weeks, TLS-RPT reports will show you if any TLS connections are failing
Fix the issues: expired certificates, uncovered MX servers, incorrect TLS configurations
Switch to enforce mode: once reports confirm zero failures, switch MTA-STS to mode: enforce

Without TLS-RPT, switching to enforce mode is like flying blind: you risk rejecting legitimate emails without knowing it.

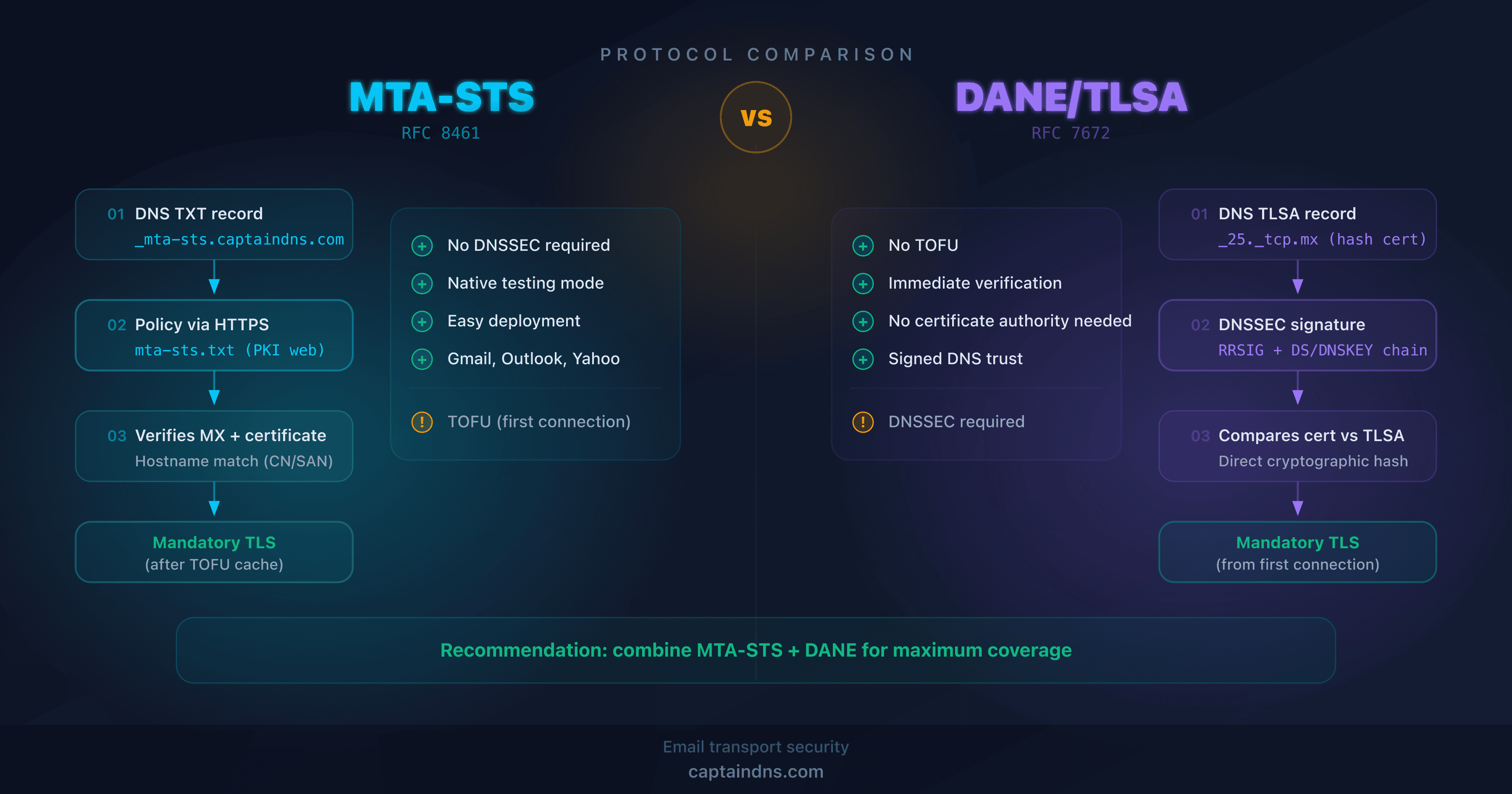

TLS-RPT also works with DANE

TLS-RPT isn't limited to MTA-STS. It also reports failures related to DANE TLSA records (RFC 7672). If your domain uses DNSSEC and publishes TLSA records, TLS-RPT reports will include DANE validation results with the policy-type: tlsa.

Configure TLS-RPT in 5 minutes

Step 1: Choose the reporting address

Create a dedicated email address to receive reports:

tlsrpt@captaindns.com (recommended)
Or use an HTTPS endpoint if you have an automated processing system

Step 2: Generate the DNS record

Use our TLS-RPT generator to create the record for your domain. You'll get a record ready to copy.

Step 3: Publish the DNS record

Add the TXT record to your DNS zone:

Field	Value
Host	`_smtp._tls`
Type	`TXT`
Value	`v=TLSRPTv1; rua=mailto:tlsrpt@captaindns.com`
TTL	`3600`

Step 4: Verify the configuration

Use our TLS-RPT syntax checker to verify that your record is correctly formatted.

Step 5: Wait for the first reports

Reports typically arrive 24 to 48 hours after publishing the record. Google is usually the first to send reports.

Common errors and troubleshooting

No reports received after 48 hours

Verify that the record is published at _smtp._tls.captaindns.com (not at _smtp-tls or smtp._tls)
Check the syntax: v=TLSRPTv1 (not v=TLSRPTv2 or v=TLSRPT1)
Make sure the receiving mailbox exists and accepts gzip attachments
Verify that your domain receives enough emails to trigger reports

Reports arrive but are empty

If total-failure-session-count is always 0, that's good news: your TLS configuration is working correctly. The reports confirm that all TLS connections are succeeding.

Emails from `noreply-smtp-tls-reporting@google.com`

These emails are legitimate. Google sends a daily TLS-RPT report for every domain that has published a _smtp._tls record. The attached file (.json.gz) contains the report. Do not mark these emails as spam.

Recommended action plan

Publish your TLS-RPT record: 5 minutes with the TLS-RPT generator (see step 2 above)
Configure MTA-STS in testing mode: enable the MTA-STS policy so that TLS-RPT reports include validation results
Analyze reports for 2 weeks: identify TLS failures and fix them
Switch MTA-STS to enforce mode: once reports are clean, enable rejection of failed TLS connections
Monitor continuously: daily reports will alert you to any new issues (expired certificate, MX change, etc.)

FAQ

What is TLS-RPT and what is it used for?

TLS-RPT (SMTP TLS Reporting, RFC 8460) is a mechanism that allows a domain owner to receive daily reports on TLS negotiation failures during email delivery. It gives you full visibility into the quality of encryption on your incoming emails.

How do I configure a TLS-RPT record?

Publish a DNS TXT record at _smtp._tls.captaindns.com with the value v=TLSRPTv1; rua=mailto:tlsrpt@captaindns.com. Use a TLS-RPT generator to create the record, then add it to your DNS zone. The first reports arrive within 24 to 48 hours.

Why am I receiving emails from noreply-smtp-tls-reporting@google.com?

These emails are legitimate TLS-RPT reports sent by Google. Your domain has a _smtp._tls record configured, and Google sends you a daily compressed JSON report detailing the TLS negotiation results for emails it sent to you.

What is the difference between TLS-RPT and DMARC reporting?

DMARC monitors email authentication (SPF, DKIM, alignment), while TLS-RPT monitors transport encryption (TLS). DMARC verifies who sends the email, TLS-RPT verifies how it is transported. The two are complementary and recommended together.

Is TLS-RPT mandatory if I use MTA-STS?

No, TLS-RPT is not technically required for MTA-STS. However, it is strongly recommended: without TLS-RPT, you won't know if TLS connections are failing. This is particularly critical before switching MTA-STS to enforce mode, as reports allow you to identify and fix issues beforehand.

How often are TLS-RPT reports sent?

TLS-RPT reports are sent once per day (24-hour period). Each compatible provider (Google, Microsoft, Yahoo, etc.) sends its own report independently. You may therefore receive multiple reports per day, one per provider.

How do I read a TLS-RPT JSON report?

A TLS-RPT report is a gzip-compressed JSON file. It contains the sending organization, the period covered, and for each TLS policy (MTA-STS or DANE): the number of successful sessions, the number of failures, and details of each failure type (expired certificate, STARTTLS not supported, etc.).

Can I use both mailto: and https: in TLS-RPT?

Yes, you can specify multiple reporting URIs separated by commas. For example: rua=mailto:tlsrpt@captaindns.com,https://report.captaindns.com/tlsrpt. The HTTPS endpoint is recommended for domains with high email volume.

Glossary

TLS-RPT: SMTP TLS Reporting, a mechanism for reporting TLS failures defined in RFC 8460.
MTA-STS: Mail Transfer Agent Strict Transport Security (RFC 8461), a policy that enforces TLS encryption for incoming email.
DANE: DNS-Based Authentication of Named Entities (RFC 7672), an alternative to MTA-STS that uses DNSSEC and TLSA records to validate TLS certificates.
STARTTLS: An SMTP extension that encrypts an initially plaintext connection. Opportunistic by default (no rejection if encryption fails).
Downgrade attack: An attack where an intermediary forces the connection to remain in plaintext by stripping the STARTTLS command from the server's response.
RUA: Reporting URI for Aggregated reports, the address where TLS-RPT reports are sent.
