What is a DKIM record? The complete guide

⚡TL;DR

• A DKIM record is a DNS TXT record that publishes the public key used to verify the cryptographic signature of an email
• The sending server signs each message with its private key, and the receiving server verifies the signature via DNS
• The essential tags are v=DKIM1 (version), k=rsa or k=ed25519 (algorithm), and p= (Base64-encoded public key)
• RSA 2048-bit is the current standard, while Ed25519 is faster but not yet universally supported
• DKIM alone doesn't protect against spoofing: you need to pair it with DMARC to verify domain alignment

You're setting up email authentication for your domain and you come across DKIM. You know it's important, but terms like "cryptographic signature," "selector," and "DNS public key" still feel unclear. This guide clears everything up.

DKIM (DomainKeys Identified Mail) is an email authentication protocol defined by RFC 6376. It allows the receiving server to verify that a message's content hasn't been altered between sending and delivery, and that the domain shown in the From: field actually authorized the email.

This guide covers the full picture: the signing cycle, the DNS record structure, available tags, choosing between RSA and Ed25519, how it works with DMARC, and key rotation. Whether you're a sysadmin, a marketing manager, or a developer, you'll have everything you need to configure and maintain DKIM properly.

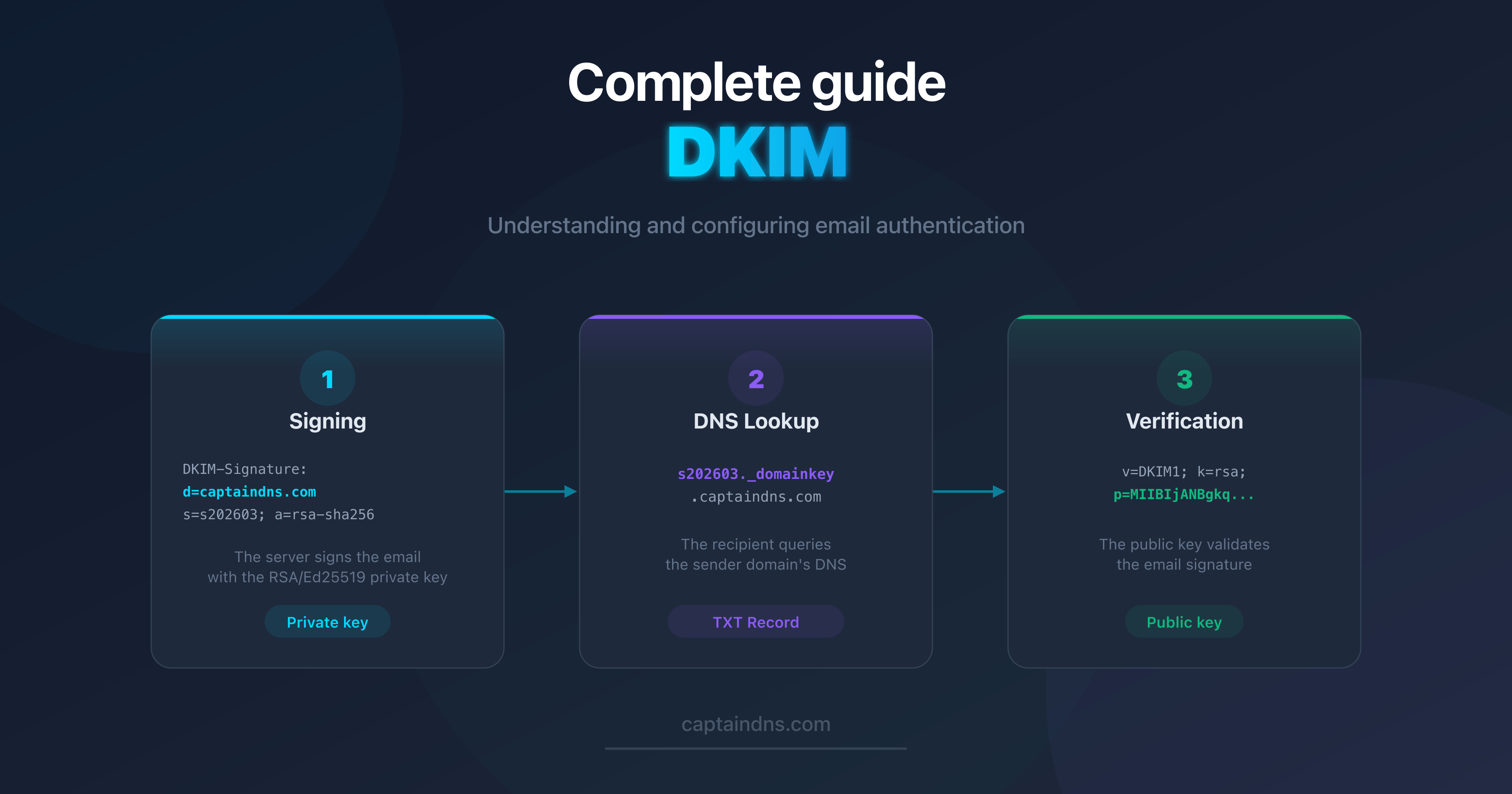

What is DKIM? The concept in 30 seconds

DKIM relies on asymmetric cryptography (public key / private key). The sending server holds a private key that it uses to sign every outgoing email. The corresponding public key is published in DNS as a TXT record, accessible to any receiving server.

When an email arrives, the receiving server:

1. Reads the DKIM-Signature header to identify the domain (d=) and the selector (s=)
2. Builds the DNS query: <selector>._domainkey.<domain>
3. Retrieves the public key from the TXT record
4. Verifies that the signature matches the message content

If the signature is valid, the message is authenticated. Otherwise, it fails DKIM verification.

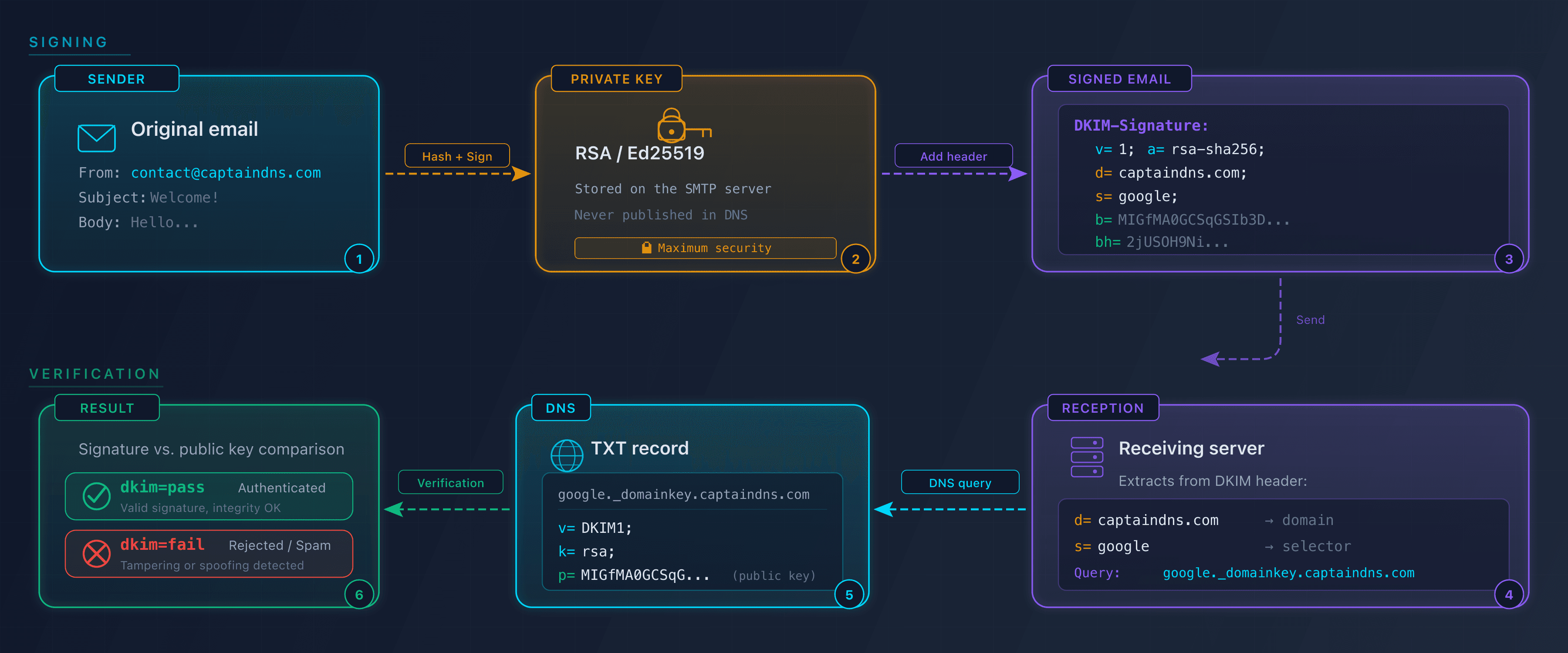

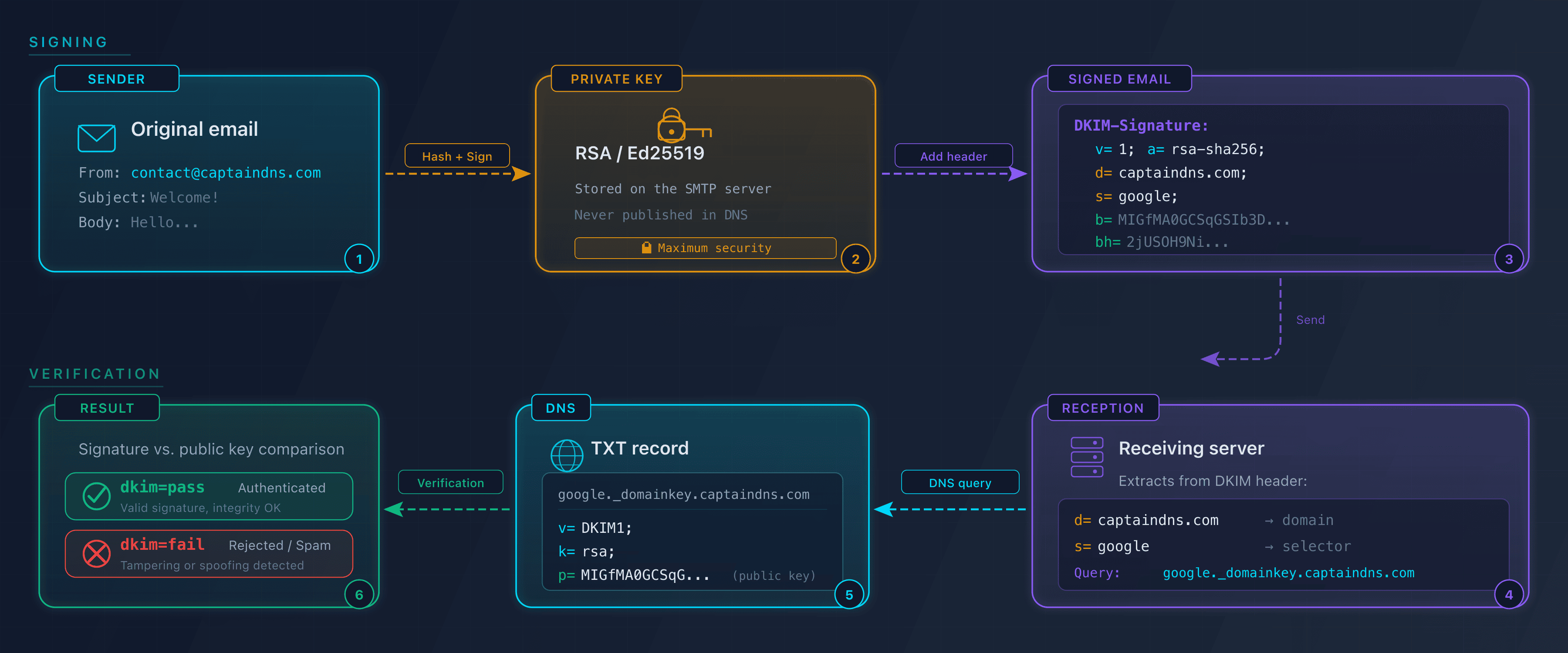

How DKIM works: the complete cycle

Step 1: Signing by the sending server

When a user sends an email from captaindns.com, the sending server performs three operations:

1. Selects the headers to sign: From, To, Subject, Date, Message-ID (defined by the h= tag)
2. Computes a hash of the message body (SHA-256 algorithm, stored in bh=)
3. Signs the hash with the RSA or Ed25519 private key, then adds the DKIM-Signature header to the message

Here's an example DKIM-Signature header:

DKIM-Signature: v=1; a=rsa-sha256; c=relaxed/relaxed;
  d=captaindns.com; s=google; t=1739800000;
  h=from:to:subject:date:message-id;
  bh=2jUSOH9NhtVGCQWNr9BrIAPreKQjO6Sn7XIkfJVOzv8=;
  b=AuUoFEfDxTDkHlLXSZEpZj79LICEps6eda7W3deTVFOk...

Step 2: Verification by the receiving server

The receiving server extracts d=captaindns.com and s=google from the header, then queries DNS:

dig TXT google._domainkey.captaindns.com +short

Result:

"v=DKIM1; k=rsa; p=MIIBIjANBgkqhkiG9w0BAQEFAAOC..."

It then uses the public key (p=) to verify the signature (b=). If the recomputed hash matches, verification succeeds.

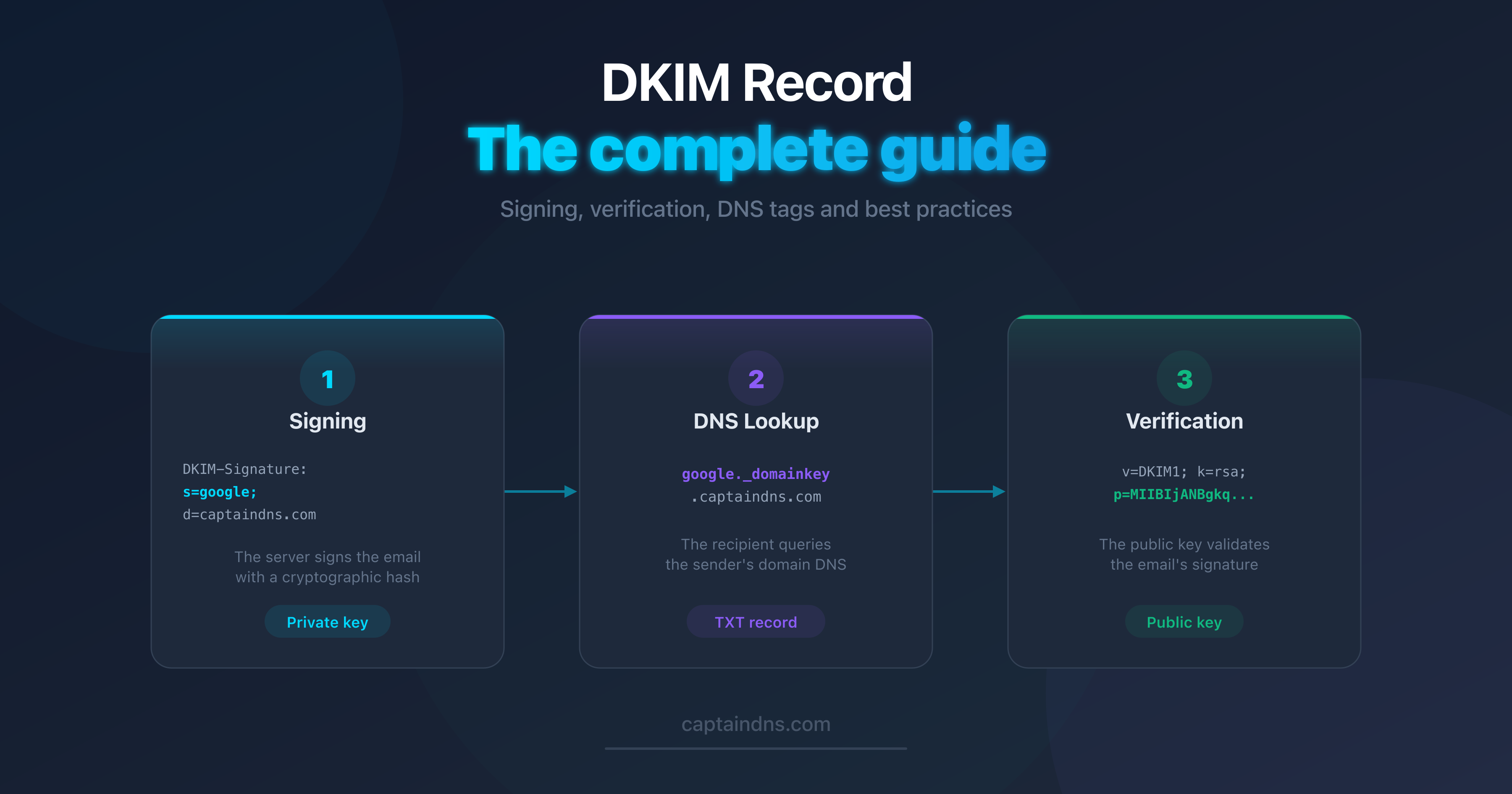

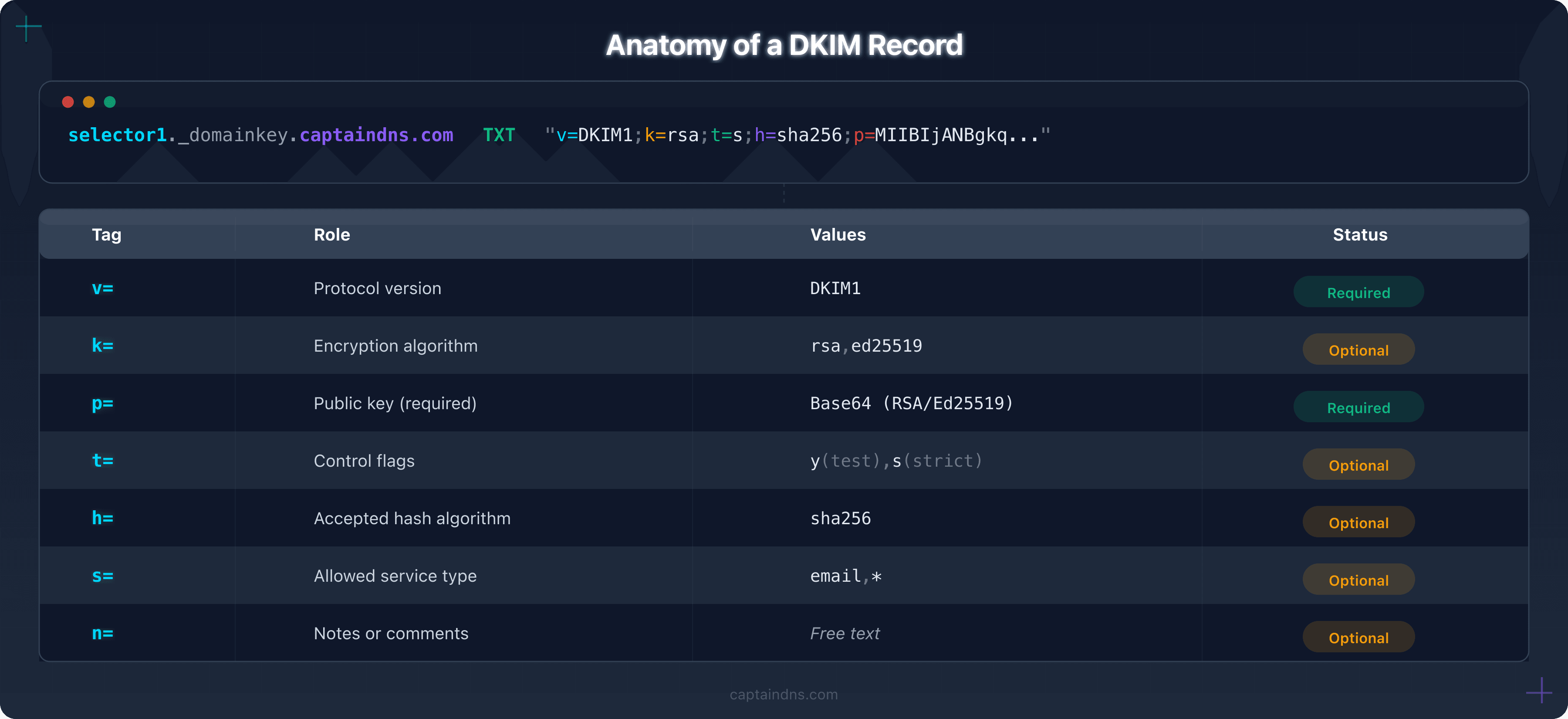

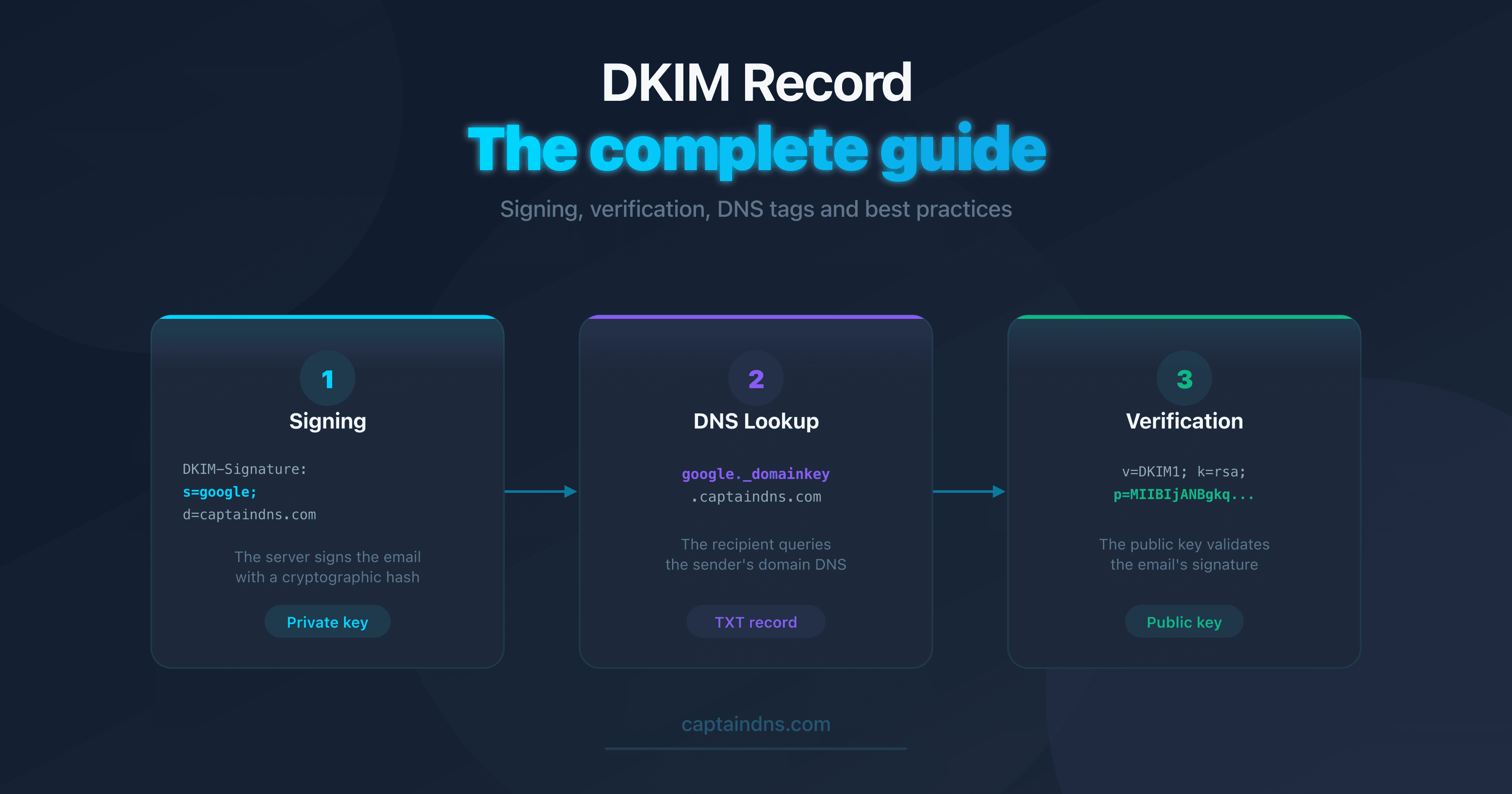

Anatomy of a DKIM record

The DKIM record is published as a DNS TXT record at <selector>._domainkey.<domain>.

Full DNS format

google._domainkey.captaindns.com  IN  TXT  "v=DKIM1; k=rsa; t=s; p=MIIBIjANBgkq..."

Required tags

Tag	Role	Values	Example
v=	Protocol version	DKIM1 (only valid value)	v=DKIM1
p=	Base64-encoded public key	Base64 string	p=MIIBIjANBgkq...

The p= tag is the core of the record. If it's empty (p=), it means the key has been revoked. The receiving server will then treat any signature using that selector as invalid.

Optional tags

Tag	Role	Possible values	Default
k=	Key algorithm	rsa, ed25519	rsa
t=	Flags	y (test), s (strict)	none
h=	Accepted hash algorithms	sha256, sha1	all
s=	Service type	email, *	* (all)
n=	Human-readable notes	Free text	none

t= flag details:

• t=y: test mode. Receiving servers should not penalize a DKIM failure. Useful during initial deployment.
• t=s: strict mode. The domain in the From: header must match exactly the d= domain in the signature (no subdomains).

Full decoded example

selector1._domainkey.captaindns.com  IN  TXT  "v=DKIM1; k=rsa; t=s; h=sha256; p=MIIBIjANBgkqhkiG9w0BAQEFAAOCAQ8AMIIBCgKCAQEA..."

Element	Meaning
selector1._domainkey.captaindns.com	DNS location (selector selector1, domain captaindns.com)
v=DKIM1	DKIM protocol version 1
k=rsa	RSA key
t=s	Strict mode (no subdomains)
h=sha256	Accepts only SHA-256
p=MIIBIj...	RSA 2048-bit public key encoded in Base64

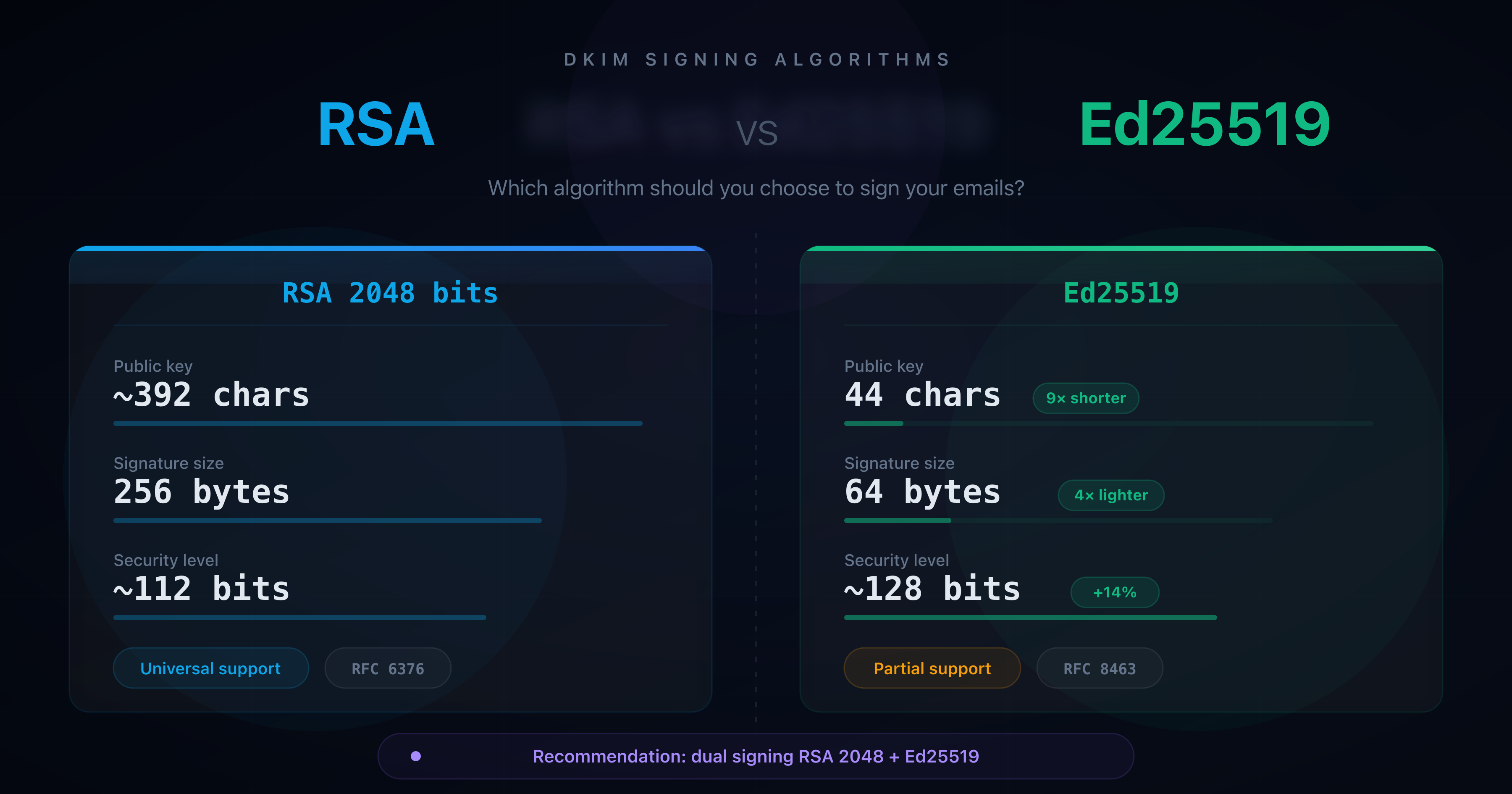

RSA vs Ed25519: which key to choose?

RFC 8463 (2018) introduced Ed25519 support as an alternative to RSA for DKIM.

Criterion	RSA 2048	RSA 4096	Ed25519
Public key size	~392 characters	~736 characters	~44 characters
Signature size	256 bytes	512 bytes	64 bytes
Verification speed	Fast	Medium	Very fast
Security	Strong (2030+)	Very strong	Very strong
Provider support	Universal	Universal	Partial (Google, Fastmail)
DNS compatibility	OK	May exceed 255-byte TXT limit	OK

Recommendations

• RSA 2048: the default choice. Supported by all providers and servers. Sufficient for current security needs.
• RSA 4096: for organizations with high security requirements. Watch out for TXT record size limits (may require multiple 255-byte strings).
• Ed25519: recommended as a dual signature (Ed25519 + RSA 2048) for transition. Servers that don't support Ed25519 will ignore the signature and fall back to the RSA one.

Stop using RSA 1024-bit. Google, Microsoft, and Yahoo have considered 1024-bit keys weak since 2024.

DKIM and DMARC: the essential link

DKIM authenticates the content of a message but doesn't verify whether the domain shown in the From: field is legitimate. That's DMARC's job.

DKIM alignment

DMARC checks that the d= domain in the DKIM signature matches the From: domain. Two modes exist:

Mode	Behavior	Example
Relaxed (default)	The d= domain can be a subdomain of the From:	d=mail.captaindns.com valid for From: contact@captaindns.com
Strict	The d= domain must match the From: exactly	d=captaindns.com required for From: contact@captaindns.com

The DKIM alignment mode is configured in the DMARC record using the adkim tag:

_dmarc.captaindns.com  IN  TXT  "v=DMARC1; p=reject; adkim=s; rua=mailto:dmarc@captaindns.com"

Why DKIM alone isn't enough

Without DMARC, an attacker can send an email with From: contact@captaindns.com while signing with their own DKIM domain (d=attacker.com). The DKIM signature will be valid, but the recipient sees a fake sender. DMARC blocks this scenario by requiring alignment between the From: domain and the d= domain.

DKIM key rotation: why and how

Why rotate keys?

A DKIM key used for too long poses risks:

• Compromise: the longer a key is exposed, the more vulnerable it becomes to attack
• Compliance: some standards (PCI DSS, SOC 2) require regular rotation
• Best practices: Google recommends quarterly rotation

Recommended frequency

Key size	Minimum frequency	Recommendation
RSA 1024	Immediately	Migrate to 2048-bit
RSA 2048	Every 6 months	Every 3 months
RSA 4096	Every 12 months	Every 6 months
Ed25519	Every 12 months	Every 6 months

Step-by-step procedure

1. Generate a new key pair with a new selector (e.g., s202602)
2. Publish the new public key in DNS: s202602._domainkey.captaindns.com
3. Wait for DNS propagation (24-48 hours)
4. Configure the sending server to use the new selector
5. Verify that outgoing emails are signed with the new selector
6. Revoke the old key by publishing an empty p= in the old DNS record
7. Delete the old record after 30 days (to allow in-transit emails to be processed)

Common DKIM record mistakes

Mistake	Symptom	Solution
1024-bit key	Warning from Google/Yahoo	Migrate to RSA 2048-bit
Empty p= tag	DKIM fail: key revoked	Republish the public key or use a new selector
Selector not found	DKIM fail: no key for signature	Check DNS, propagation, and selector spelling
Truncated public key	DKIM fail: bad RSA signature	Verify the TXT record isn't cut off (255-byte per string limit)
Missing v=DKIM1	Some servers ignore the record	Always include v=DKIM1 as the first tag
From header not signed	DMARC fails despite valid DKIM	Add from to the h= tag in the signature
Test mode left on	t=y still active in production	Remove t=y once DKIM is validated

Recommended action plan

1. Check your current setup: use a DKIM Checker to analyze your existing DKIM records
2. Inventory your selectors: identify all active selectors on your domain with an automatic discovery tool
3. Check key sizes: any key smaller than 2048 bits should be replaced
4. Configure DMARC: publish a DMARC record with adkim=r (relaxed) to start, then switch to strict (adkim=s) once everything is stable
5. Schedule rotation: mark quarterly DKIM key rotation in your calendar

FAQ

What is a DKIM record?

A DKIM record is a DNS TXT record published at selector._domainkey.domain.com. It contains the public key that allows receiving servers to verify the cryptographic signature added to each outgoing email. The essential tags are v=DKIM1 (version), k= (algorithm), and p= (Base64 public key).

How does DKIM signing work?

The sending server computes a SHA-256 hash of the selected headers and the message body, then signs that hash with its private key. The signature is added in the DKIM-Signature header. The receiving server retrieves the public key via DNS and verifies that the signature matches the received content.

What are the tags in a DKIM record?

The required tags are v=DKIM1 (version) and p= (public key). Optional tags include k= (algorithm, rsa by default), t= (flags: y for test, s for strict), h= (accepted hash algorithms), s= (service type), and n= (notes).

What is the difference between RSA and Ed25519 for DKIM?

RSA 2048 is the current standard, supported by all providers. Ed25519 produces shorter signatures (64 bytes vs. 256) and is faster, but is only supported by a few providers (Google, Fastmail). The best approach is dual signing: Ed25519 + RSA 2048.

How do I verify a DKIM record?

Use the command dig TXT selector._domainkey.domain.com +short to query DNS. If a TXT record containing v=DKIM1 and p= is returned, the public key is published. For a full analysis (key size, syntax, validity), use an online DKIM verification tool.

Why is DKIM key rotation important?

A key used for too long increases the risk of compromise. Google recommends quarterly rotation. The procedure involves creating a new selector with a new key pair, publishing the new key in DNS, switching the sending server over, then revoking the old key by emptying its p= tag.

What is the link between DKIM and DMARC?

DKIM authenticates a message's content, while DMARC verifies that the DKIM signature domain (d=) matches the From: domain. Without DMARC, an attacker can sign an email with their own domain while spoofing the From:. DMARC blocks this scenario through alignment verification.

Glossary

• DKIM (DomainKeys Identified Mail): an email authentication protocol that uses asymmetric cryptography to sign outgoing messages and allow recipients to verify their integrity.
• DKIM selector: a text identifier (e.g., google, selector1) that, combined with the domain, forms the DNS address of the public key (selector._domainkey.domain).
• Public key: the part of the cryptographic key pair published in DNS, used by receiving servers to verify DKIM signatures.
• DKIM alignment: DMARC's verification that the d= domain in the DKIM signature matches the From: domain of the email.
• Ed25519: a digital signature algorithm introduced by RFC 8463 as an alternative to RSA for DKIM, offering shorter signatures and faster verification.
• Key rotation: the process of regularly replacing DKIM key pairs to limit the risk of compromise.

---

Generate your DKIM keys in seconds: use the DKIM Generator to create an RSA 2048 or Ed25519 key pair with the DNS record ready to publish.

---

Related DKIM guides

• How to find your DKIM selector: 4 methods: extract the selector from headers, admin console, DNS, or an automatic tool
• DKIM fail: all causes and how to fix them (coming soon)

Sources

• RFC 6376 - DomainKeys Identified Mail (DKIM) Signatures
• RFC 8463 - Ed25519 for DKIM
• Google Workspace - Set up DKIM
